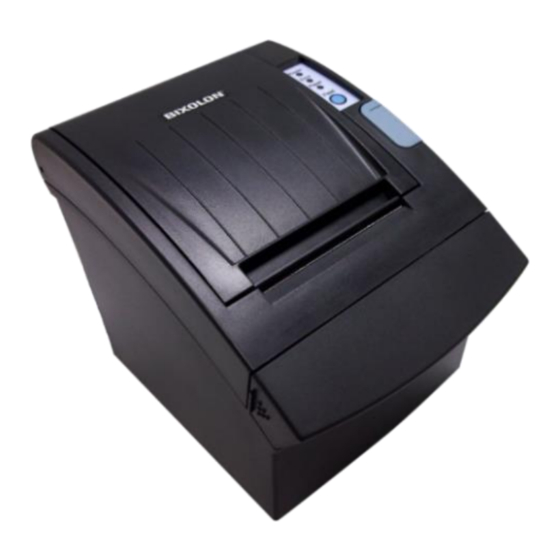

- Page 1 User’s Manual SRP-350 Thermal Printer Rev. 1.06 http://www.bixolon.com...
-
Page 2: Safety Precautions
SRP-350 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet. - Page 3 SRP-350 CAUTION Violating following instructions can cause slight wound or damage the appliance. If you observe a strange smoke, odor or noise from Keep the desiccant out of children’s reach. the printer, unplug it before taking following measures. • If not, they may eat it.
-
Page 4: Label Material
SRP-350 ■ Warning - U.S.A This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 5 SRP-350 ■ Introduction The SRP-350 Roll Printer are designed for use with electronic instruments such as system ECR, POS, banking equipment, computer peripheral equipment, etc. The main features of the printer are as follows: 1. High speed printing : 46.2 (1/6” Feed) lines per second.
-
Page 6: Table Of Contents
SRP-350 ■ Table of Contents 1. Setting Up the Printer ....................7 1-1 Unpacking........................7 1-2 Connecting the Cables ....................8 1-2-1 Serial Interface (RS-232C) ................8 1-2-2 Serial Interface (RS-485) ................9 1-2-3 Parallel Interface (IEEE1284) ..............10 1-2-4 USB Interface ....................11 1-3 Connecting the Drawer .................... -
Page 7: Setting Up The Printer
SRP-350 1. Setting Up the Printer 1-1 Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. SRP-350 Cover Cable Roll Paper Manual AC Adapter Power Cord - 7 -... -
Page 8: Connecting The Cables
SRP-350 1-2 Connecting the Cables You can connect up the three cables to the printer. They all connect to the connector panel on the back of the printer, which is shown below: ※ NOTE Before connecting any of the cables, make sure that both the printer and the host are turned off. -
Page 9: Serial Interface (Rs-485)
SRP-350 1-2-2 Serial Interface (RS-485) IFA-SF TYPE Drawer kick-out Power supply Interface connector connector connector ※ When the Dip Switch is “ON” on the Serial Interface Board, DTR and RTS are connected each other. PRINTER HOST SIDE SIDE Pin No. -
Page 10: Parallel Interface (Ieee1284)
SRP-350 1-2-3 Parallel Interface (IEEE1284) IFA-P TYPE Drawer kick-out Power supply Interface connector connector connector Pin No. Source Compatibility Mode Nibble Mode Byte Mode Host nStrobe HostClk HostClk Host / Printer Data 0 (LSB) Data 0 (LSB) Host / Printer... -
Page 11: Usb Interface
SRP-350 1-2-4 USB Interface IFA-U TYPE Drawer kick-out Power supply USB connector connector connector Pin No. Signal Name Assignment (Color) Function Shell Shield Drain Wire Frame Ground VBUS Host Power White Data Line(D-) Green Data Line(D+) Black Signal Ground 1-3 Connecting the Drawer ※... -
Page 12: Setting The Dip Switches
SRP-350 1-4 Setting the Dip Switches 1-4-1 Serial Interface Function Default Auto Line Feed Always enabled Always disabled Reserved Handshaking XON/OFF DTR/DSR Word length 7 bits 8 bits Parity check Parity selection EVEN Baud rate selection Refer to the Following Table 1... -
Page 13: Parallel & Usb Interface
SRP-350 1-4-2 Parallel & USB Interface Function Default Auto Line Feed Always enabled Always disabled Reserved Reserved Reserved Reserved Reserved Reserved Reserved DIP switch Setting 1 Function Function Default Code Page Selection Refer to the Following Table 2 Internal bell control... -
Page 14: Installing Or Replacing The Paper Roll
SRP-350 1-5 Installing or Replacing the Paper Roll ※ NOTE Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. - Page 15 SRP-350 1-5-5 Be sure to note the correct direction that the paper comes off the roll. 1-5-6 Pull out a small amount of paper, as shown. Then close the cover. ※ NOTE When closing the cover, press the center of printer cover firmly to prevent paper miss-loading.
-
Page 16: Adjustments And Settings
SRP-350 1-6 Adjustments and Settings The SRP-350 is set up at the factory to be appropriate for almost all users. It does, however, offer some settings for users with special requirements. It has DIP switches that allow you to change communication settings, such as handshaking and parity check, as well as print density. -
Page 17: Connecting The Computer
SRP-350 1-8 Connecting the computer You need an appropriate interface cable. 1-8-1 Plug the cable connector securely into the printer’s interface connector. 1-8-2 Tighten the screws on both sides of the cable connector. 1-8-3 Attach the other end of the cable to the computer. -
Page 18: Self Test
SRP-350 2. Self Test The self-test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. The self-test checks the following; 2-1 Make sure paper roll has been installed properly. 2-2 Turn on the power while holding down the FEED button. The self-test begins. -
Page 19: Hexadecimal Dumping
SRP-350 3. Hexadecimal Dumping This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and data in hexadecimal format along with a guide section to help you find specific commands. -
Page 20: Specification
SRP-350 4. Specification Printing method Thermal line printing Dot density 180 X 180 dpi (7dots/mm) Printing width 72 mm Paper width 80 mm Characters per line (default) 42 (Font A) 56 (Font B) Printing speed 46.2 lines/sec , 150 mm/sec... -
Page 21: Appendix
SRP-350 5. Appendix 5-1 Cleaning Printer Paper dust inside the printer may lower the print quality. In this case clean the printer as follows. 5-1-1 Open the printer cover and remove the paper if exists. 5-1-2 Clean the print head with a cotton swab moistened with alcohol solvent.
