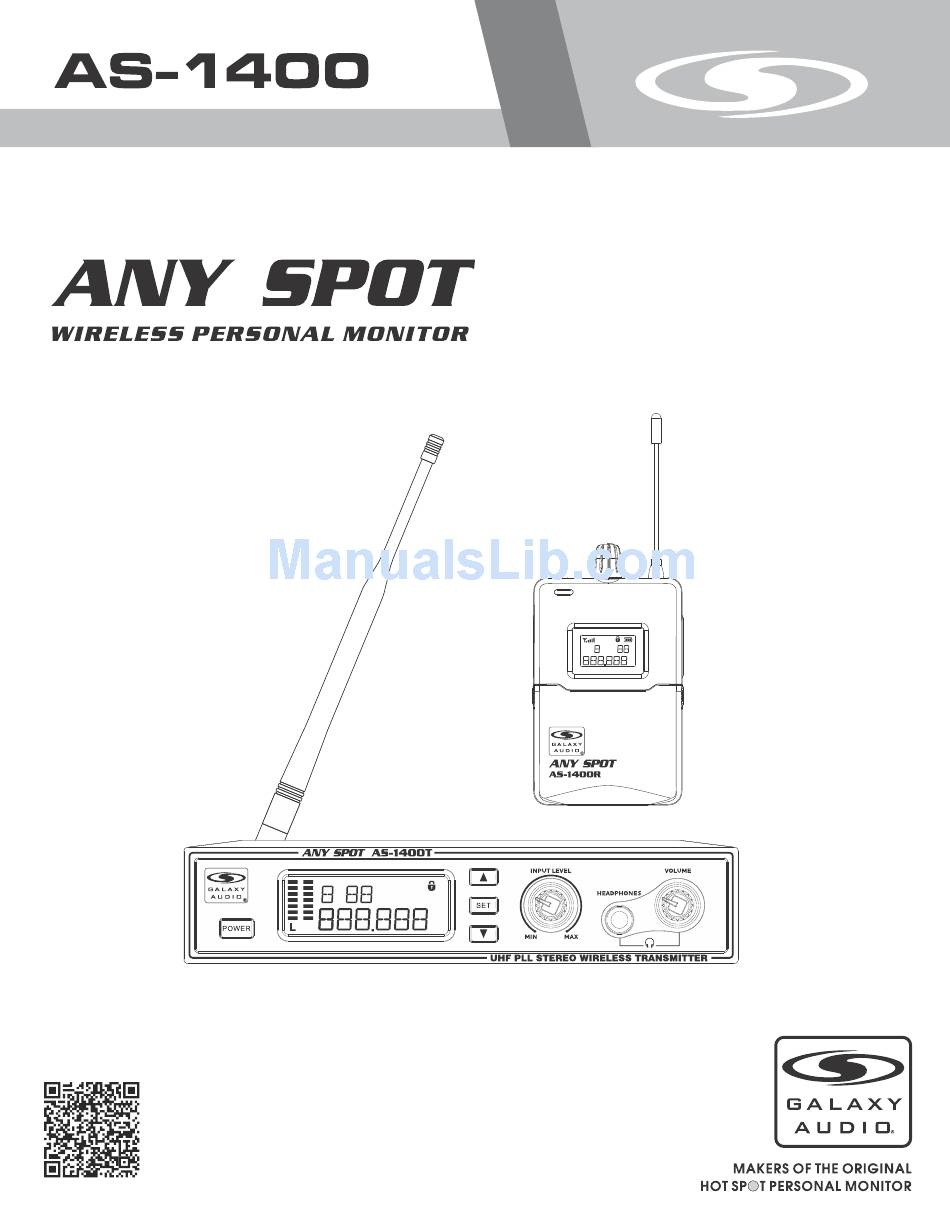

- Page 1 USER’S MANUAL ® STEREO MONO GROUP CHANNEL GROUP CHANNEL STEREO MONO www.galaxyaudio.com/products/AS-1400...
-
Page 2: Table Of Contents
Parts and Accessories......................9 Wireless Tips........................10 Introduction Thank you for choosing a Galaxy Audio professional wireless in-ear monitor system. You have joined thousands of other satisfied customers. Our years of professional experience in design and manufacturing ensure our products’ quality, performance and reliability. -
Page 3: Safety
THIS RADIO EQUIPMENT IS INTENDED FOR USE IN PROFESSIONAL ENTERTAINMENT AND SIMILAR APPLICATIONS. Changes or modifications not expressly approved by Galaxy Audio Incorporated could void your authority to operate the equipment. Licensing of Galaxy Audio wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. -
Page 4: System Components
System Components All AS-1400 systems include the following components: AS-1400T Transmitter AS-1400R Receiver Power Supply One Pair of Standard EB4 Ear Buds One Antenna STEREO MONO Rack Ear Kit GROUP CHANNEL Quick Start Guide GROUP CHANNEL STEREO MONO M3/10 (x6) -
Page 5: As-1400T Transmitter Features
AS-1400T Transmitter Features AS-1400 Wireless In-Ear Monitor System Transmitter Transmitter Features: Front Panel GROUP CHANNEL STEREO MONO 1 - Power Switch: ON/OFF for transmitter 2 - LCD Screen: Displays information (for Group, Channel, Frequencies, L/R Input AF, and more) 3 - Function Buttons: Up... -
Page 6: As-1400R Receiver Features
AS-1400R Receiver Features AS-1400 Wireless In-Ear Monitor Body Pack Receiver Body Pack Receiver Features: 1 - Stereo Headphone Jack 1/8" (3.5 mm) 2 - Audio Output Control and On/Off Switch 3 - Antenna 4 - Low Battery Indicator: LED will flash red when battery is low. -
Page 7: System Setup
System Setup System Setup Programming the Transmitter GROUP CHANNEL STEREO 1. Power On: MONO Hold the power button for 3 seconds to power on the transmitter. Display will light up. Hold for another 3 seconds to turn off. Fig. 1 GROUP CHANNEL STEREO... -
Page 8: System Setup
System Setup (Cont.) System Setup Programming the Body Pack Receiver STEREO MONO 1. Power On: Turn the Body Pack on by turning the volume control clock-wise. GROUP CHANNEL The LCD display will light up as shown in Fig 1. Fig. 1 STEREO MONO 2. -
Page 9: Mono/Stereo/Mixed Setup
Stereo/Mono/Mixed Mono Setup Stereo Mode: The transmitter and receiver should both be switched into stereo. STEREO MODE RIGHT LEFT STEREO MONO GROUP CHANNEL AS-1400R AS-1400T STEREO MONO GROUP CHANNEL AS-1400R MIXER STEREO MONO AS-1400R GROUP CHANNEL Mono Mode: Use the Left input, switch the transmitter to mono, the receiver can remain switched to stereo as the transmitter is sending a mono mix to both ears. -
Page 10: Specifications
Many of these parts and accessories may be found and purchased from the Galaxy Audio website in the Galaxy Store (www.galaxyaudio.com/parts-and-accessories). EXTBNC - BNC Cable for front mounting the antennas on the AS-1400. For lengths available: 18", 25', 50', 100' CN-BNCPM - BNC Connector for front mounting the antennas on the AS-1400. -
Page 11: Wireless Tips
Wireless Tips Wireless Tips Maintain line of sight between the transmitter and receiver antennas. Do not have walls, metal objects, large crowds, etc. blocking the line of sight between the transmitter and receiver. Antennas on the stationary equipment should be kept several feet above the ground. Antennas can be mounted on stands or walls using brackets such as the ANT-LB. - Page 12 WARRANTY Information can be viewed online at http://www.galaxyaudio.com/support/warranty www.galaxyaudio.com/support/warranty USER’S MANUAL Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2017 V20170209...
