Natural Gas Vapor Installation (typical)
A
NG BTU = ft
Megajoules = m
A.
BTU and Pressure Decal
B.
Check Distance with Gas Provider
C.
Accessory Valve with Manometer Port
D.
Size Gas Meter for Generator Load Plus All Appliance Loads
E.
Flexible Fuel Line
F.
Sediment Trap
G.
For Underground Installations, Verify Piping System for Code Compliance
H.
Gas Main
Installation Guidelines for 60 Hz EcoGen™ Generator
C
E
F
3
/h X 1000
3
/h X 37.26

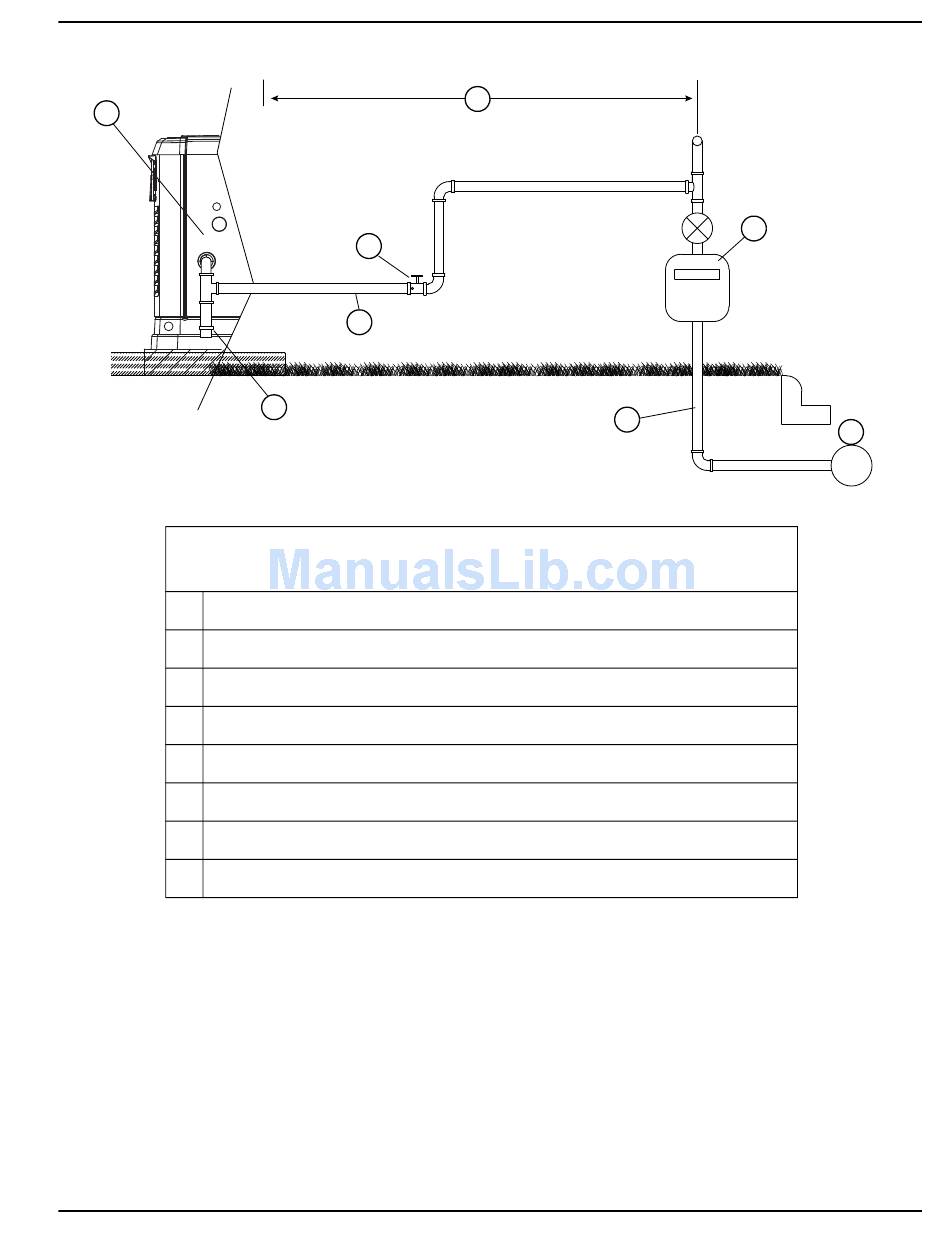

Figure 5-6. Natural Gas Vapor Installation (typical)
B
G
Fuel Conversion/Gas Connections
D
H
000618a
21
