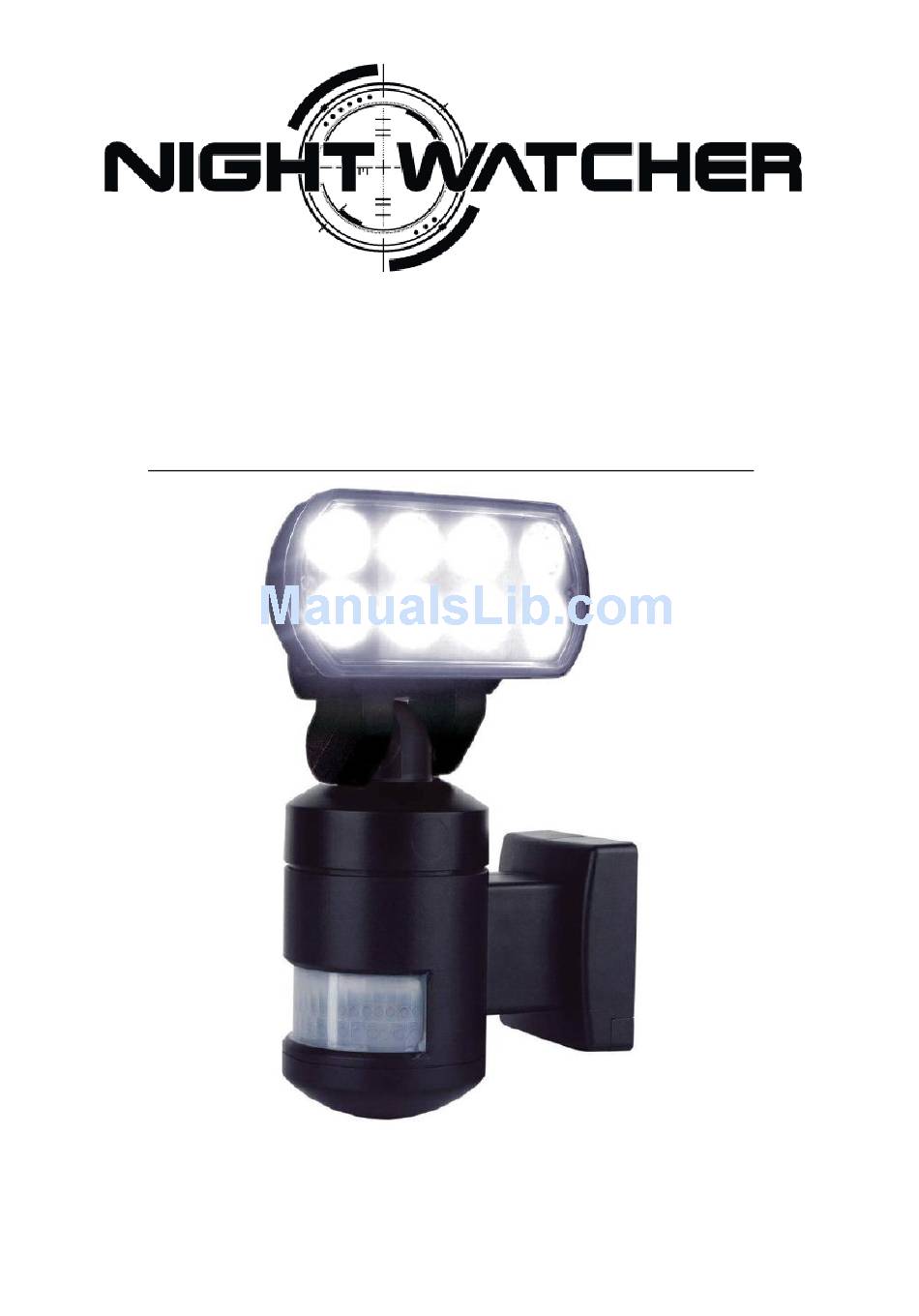

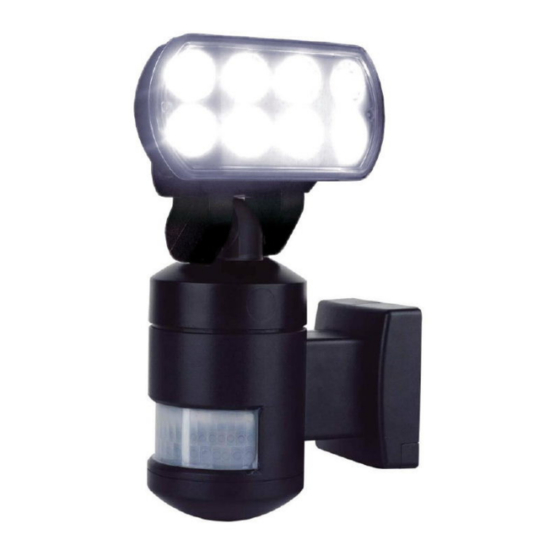

- Page 1 Motion tracking sensor led light Installation & operating manual NIGHTWATCHER nw1200X Model no:...
-
Page 2: Specifications
INTRODUCTION Congratulations on the purchase of your new Nightwatcher Security Light. Before installation of the unit, please read the operating instructions and safeguards carefully. It is important that you read and follow the instructions in the manual, even if you feel you are familiar with this type of product. -
Page 3: Top View
OVERVIEW Push-button 3 motion sensors IMPORTANT: THE INTALLATION OF THIS FITTING MUST BE DONE BY A QUALIFIED ELECTRICIAN. This fitting must be earthed. Do not mount the luminaire against inflammable surfaces. WARNING ! ! ! The motion detector will not operate correctly if it is installed: BEFORE ATTEMPTING ANY INSTALLATION OR ( ) Near the outlet of a central heating boiler MAINTENANCE, ENSURE THAT THE... -
Page 4: Wiring Instructions
INSTALLATION AND WIRING INSTRUCTIONS Remove the inset back mounting box from the luminaire. Fit the inset back mounting box onto the wall and tighten the screws at a height that ensures adequate coverage of the area by the infrared detector. The minimum installation height is 2 meters. - Page 5 FUNCTION This light is equipped with 3 motion sensors: zone 1 covers 60 degree, zone 2 covers 100 degrees and zone 3 covers 60 degrees. 220 degrees (maximum) in total for 3 zones. ZONE 2 ZONE 1 ZONE 3 TOTAL DETECTION RANGE The light will switch on for 3 minutes and off automatically when heat/ movement is detected.
- Page 6 OPERATION 1. Turn on the wall switch to activate the light, the light is now under Nighttime mode NOTE: Allow for approximately 30 seconds warm-up time before the sensor resumes normal activity. 2. To test, walk through the sensor’s detection area. 3.
-
Page 7: Product Warranty
PRODUCT WARRANTY 1 YEAR REPLACEMENT WARRANTY THIS WARRANTY FORM SHOULD BE Your Nightwatcher Security Light is covered for a RETAINED BY THE CUSTOMER AT ALL Period of 12 months from your TIMES. Date of Purchase. WARNING The Warranty covers faulty parts or workmanship.
