Applifast 24 Series Instruction Manual

Right angle nutrunners
Hide thumbs

Advertisement

Quick Links

Download this manual

Instruction Manual

Cleco - Apex Tool Group
Model 24 & 34 Series
Right Angle Nutrunners

Advertisement

loading
Need help?

Need help?

Do you have a question about the 24 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Applifast 24 Series

Summary of Contents for Applifast 24 Series

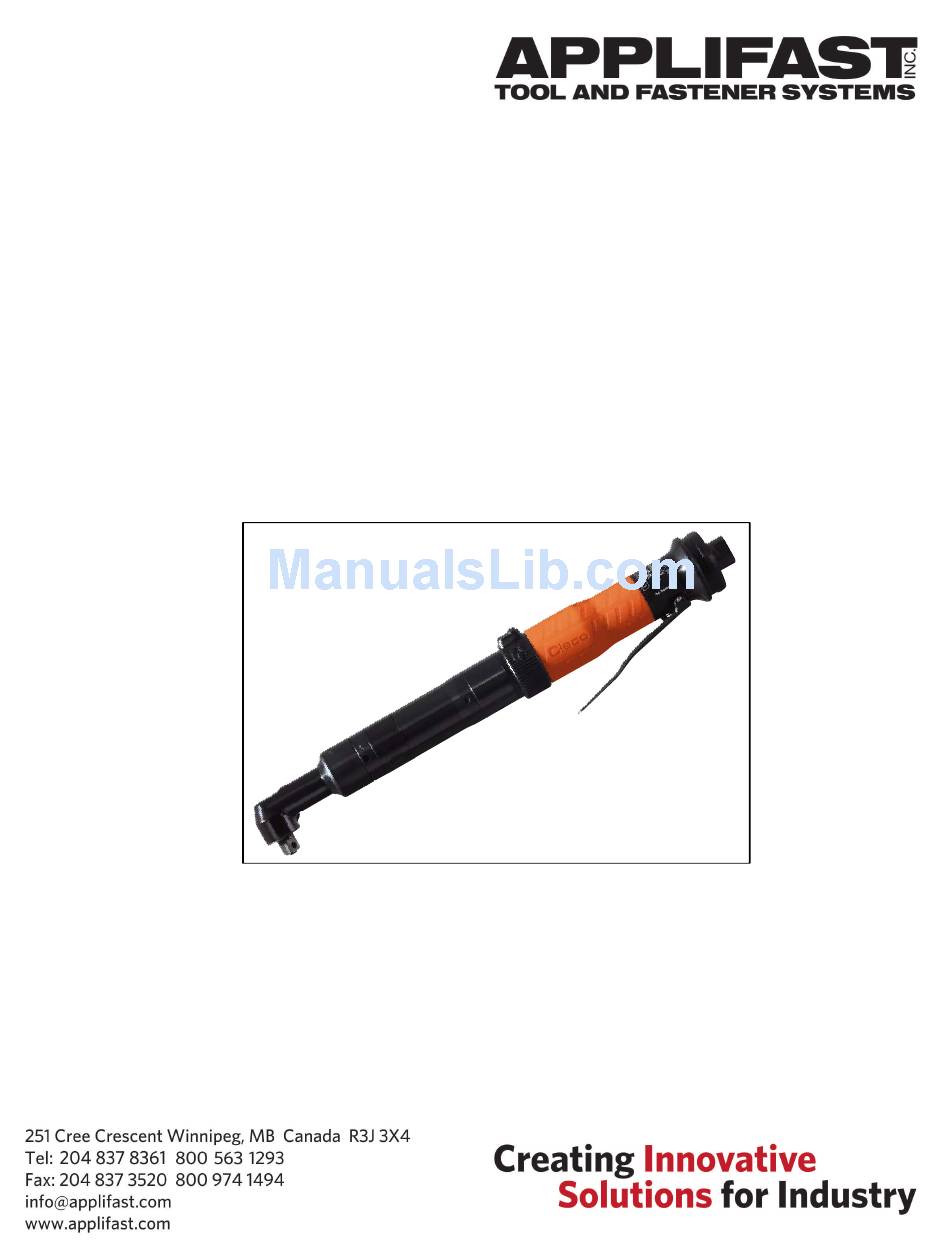

  • Page 1: Instruction Manual

    Instruction Manual Cleco - Apex Tool Group Model 24 & 34 Series Right Angle Nutrunners...
  • Page 2 Cleco ® Description Language Version: This Parts Manual is the “Original Instructions” intended for all persons who will use or repair these tools. Product Identification: Refer to the “Model Nomenclature” page in this document. Noise and Vibration: Refer to documents CE-1000DC and CE-1000TD. General Description: Air powered right angle nutrunners.
  • Page 3 Cleco ® Nomenclature “A” Tool Series Rotation R = Reversible Tool Style A = Right Angle Torque Control A = Clecomatic Clutch S = Stall Maximum Torque 24RA Series 34RA Series 06 = 5.5 Nm 08 = 8.0 Nm 41 = 41 Nm 07 = 7.0 Nm 09 = 9.0 Nm 47 = 47 Nm...

  • Page 4: Handle Assembly

    Cleco ® Handle Assembly “B” Loctite® Page 4 Page 4...
  • Page 5 204954 Set Screw 202410 Table "B" Handle 204916 Muffler Housing 204923 Lever 204956 Throttle Valve Pin (#) Quantity (X) Recommended Spare Parts Table "B" Ref. Description 24 Series 34 Series Handle Cover 204955 204953 15 Handle 204926 204927 Page 5...

  • Page 6: Motor Assembly

    Cleco ® Motor Assembly “C” Page 6...
  • Page 7 Cleco ® Motor Assembly Illustration "C" Number Description Table "C" Spring Table "C" Valve 863009 O-Ring 204973 Lock Nut 204921 Ball Bearing 205930 Rear End Plate Table "C" Cylinder Table "C" Rotor Table "C" 18 Rotor Blade 204912 Front End Plate 204920 Ball Bearing 204932...
  • Page 8 Cleco ® 2nd Reduction Gear Assembly Models “D” 4:1 Gear Assemblies: 201884, 201982 24RAA26AH3 34RAA75AZ3 34RAA37AX3 34RAA75AZ4 34RAA47AX3 34RAS41AX3 34RAA68AZ3 34RAS54AZ3 34RAA68AZ4 34RAS54AZ4 Loctite® Page 8...
  • Page 9 Cleco ® 2nd Reduction Gear Assembly Illustration "D" Number Description Table "D" Gear Case Assembly 204998 Thrust Washer 204997 Needle Bearing 203750 Idler Pin 203748 Idler Gear (14T) Table "D" Gear Cage 204941 Gear Case 204803 Retaining Ring (#) Quantity (X) Recommended Spare Parts (T) Teeth Table "D"...
  • Page 10 Cleco ® 4.5:1, 5.7:1 and 8:1 Gear Assemblies Models “E” 4.5:1 Gear Assembly: 201878 24RAA06AL2 34RAA08AL2 24RAA06AL3 34RAA08AL3 24RAA26AH3 34RAA37AX3 24RAS07AL3 34RAS09AL3 34RAS41AX3 Loctite® Models 5.7:1 Gear Assembly: 201896 “F” 24RAA07AL2 34RAA11AL2 8:1 Gear Assembly: 201895 24RAA07AL3 34RAA11AL3 24RAA11AL2 34RAA15AM3 24RAA11AL3 34RAA47AX3 24RAA12AM3 34RAA68AZ3...
  • Page 11 Cleco ® 4.5:1, 5.7:1 and 8:1 Gear Assemblies Illustration "E" Number Description 201878 Gear Case Assembly 869584 Spacer 865862 Pinion 203782 Idler Gear (15T) 869949 Thrust Washer 204891 Gear Cage 204931 Gear Case 204962 Ball Bearing 204803 Retaining Ring (#) Quantity (X) Recommended Spare Parts (T) Teeth Illustration "F"...

  • Page 12: Gear Assembly

    Cleco ® Gear Assembly Models “G” 13.4:1 Gear Assembly: 201877 24RAA12AL2 34RAA26AH3 24RAA12AL3 34RAA26AM3 24RAA19AM3 34RAA75AZ3 24RAS21AM3 34RAA75AZ4 34RAS28AH3 Loctite® Loctite® Page 12...
  • Page 13 Cleco ® Gear Assembly Illustration "G" Number Description 201877 Gear Case Assembly 869584 Spacer 582126 Pinion 205848 Idler Gear 204888 Gear Cage 204893 Gear Case 203783 Idler Pin 582122 Idler Gear (15T) 204892 Gear Cage 204895 Retaining Ring 204894 Ball Bearing (#) Quantity (X) Recommended Spare Parts (T) Teeth...
  • Page 14 Cleco ® Gear Assembly Models “H” 16:1 Gear Assembly: 201876 24RAA23AM3 34RAA28AH3 34RAA33AX3 34RAS36AX3 Loctite® Loctite® Page 14...
  • Page 15 Cleco ® Gear Assembly Illustration "H" Number Description 201876 Gear Case Assembly 869584 Spacer 867902 Pinion 203782 Idler Gear (15T) 204887 Gear Cage 204886 Gear Case 203783 Idler Pin 203781 Idler Gear (15T) 205830 Gear Cage 204895 Retaining Ring 204962 Ball Bearing (#) Quantity (X) Recommended Spare Parts...
  • Page 16 Cleco ® Stall Spindle Assembly “I” Models 24RAS Series 34RAS Series Loctite® Loctite® Page 16...
  • Page 17 Cleco ® Stall Spindle Assembly Illustration "I" Number Description 204942 O-Ring 412055 Retaining Ring Table "I" Spindle Table "I" Spindle 842517 Ball Bearing Table "I" Clutch Housing Table "I" Clutch Housing (#) Quantity (X) Recommended Spare Parts Table "I" 24RAS07AL3 24RAS08AL3 24RAS13AM3 24RAS21AM3...
  • Page 18 Cleco ® Clecomatic Clutch Models “J” Clutch: 201870, 201872, 201873, 201983 24RAA06 34RAA08 24RAA07 34RAA11 24RAA11 34RAA15 24RAA12 34RAA37 24RAA26 34RAA47 34RAA68 34RAA75 Loctite® Page 18...
  • Page 19 Cleco ® Clecomatic Clutch Illustration "J" Number Description Table "J" Clutch Assembly Table "J" Trip Rod 204881 Clutch Cam 203612 Trip Slide 203613 Reset Spring 842274 28 Steel Ball (5/32") 204876 Retaining Ring 617226 Dowel Pin 869112 Reset Pin 203899 Reset Spring 864665 812156...
  • Page 20 Cleco ® Clecomatic Clutch Models “K” Clutch: 201867, 201897 24RAA19 34RAA26 24RAA23 34RAA28 34RAA33 Loctite® Page 20...
  • Page 21 Cleco ® Clecomatic Clutch Illustration "K" Number Description Table "K" Clutch Assembly Table "K" Trip Rod 204875 Clutch Cam 842161 30 Steel Ball (3/16") 202748 Ball Plug 204876 Retaining Ring 204870 Trip Plunger 202763 Reset Spring 867922 205760 Spacer 204974 Thrust Washer 844077 Steel Ball (5/16")

  • Page 22: Right Angle Attachment

    Cleco ® Right Angle Attachment 301011: 1/4” Square Drive (Code AL2) “L” 201887: 3/8” Square Drive (Code AL3) 3/4” Socket Loctite® Angle Head Wrench Code 204810 204994 M, H 889459 Page 22...
  • Page 23 Cleco ® Right Angle Attachment Illustration "L" Number Description 204475 Retaining Ring 204930 Coupling Nut 204958 Bearing Retainer 204948 Pinion Bearing 204950 Bearing Spacer 845845 Needle Bearing 204900 Bevel Gear Set 204862 Angle Head 617600 Needle Bearing 204935 Spindle Cap 844265 22 Steel Ball (1/8") 844306...
  • Page 24 Cleco ® Right Angle Attachment “M” 201889: 3/8” Square Drive (Codes AM3 & AH3) Loctite® Loctite® * Note: Do not reuse nut. Replace with new if disassembled. Page 24...
  • Page 25 Cleco ® Right Angle Attachment Illustration "M" Number Description 204475 Retaining Ring 204930 Coupling Nut 204958 Bearing Retainer 204948 Pinion Bearing 204951 Bearing Spacer 842273 Needle Bearing 204897 Bevel Gear Set 204860 Angle Head 617600 Needle Bearing 204933 Spindle Cap 204959 842274 20 Steel Ball (5/32")
  • Page 26 Cleco ® Right Angle Attachment “N” 201890: 3/8” Square Drive (Code AX3) Loctite® Page 26...
  • Page 27 Cleco ® Right Angle Attachment Illustration "N" Number Description 204475 Retaining Ring 204930 Coupling Nut 204958 Bearing Retainer 204947 Pinion Bearing 204952 Bearing Spacer 863360 Needle Bearing 204898 Bevel Gear Set 204859 Angle Head 882629 Needle Bearing 204936 Spindle Cap 842274 22 Steel Ball (5/32") 202390...
  • Page 28 Cleco ® Right Angle Attachment 301006: 3/8” Square Drive (Code AZ2) “O” 201979: 1/2” Square Drive (Code AZ4) Loctite® Loctite® Page 28...
  • Page 29 Cleco ® Right Angle Attachment Illustration "O" Number Description 204475 Retaining Ring 204930 Coupling Nut 204958 Bearing Retainer 204947 Pinion Bearing 205764 Bearing Spacer 203253 Needle Bearing 203440 Pinion Gear 205758 Angle Head 864105 Needle Bearing 203250 Spindle Cap 203248 203251 Bevel Gear 842517...

  • Page 30: Service Notes

    Cleco ® Service Notes Clecomatic Clutch: Trip Rod Sizing Position the head without the trip rod installed. Until the tool starts, +3/4 to 1 turn Tighten all joints. Remove this amount from trip rod. Clecomatic Clutches: 201867 & 201897 Release Sleeve After maintenance, the release sleeve should be replaced with the same size unless one of the two conditions described below exists: No “Click”...
  • Page 31 Cleco ® Service Notes Motor Assembly Disassembly: Replace Replace Reassembly: .0010” (.0254mm) .0015” (.0381mm) 24 Series: 1.598” (40.6mm) 34 Series: 1.998” (50.7mm) Page 31...
  • Page 32 Call our friendly & knowledgeable factory trained service technicians today & discover what makes us different! 800 563 1293 www.applifast.com...

This manual is also suitable for:

34 series
