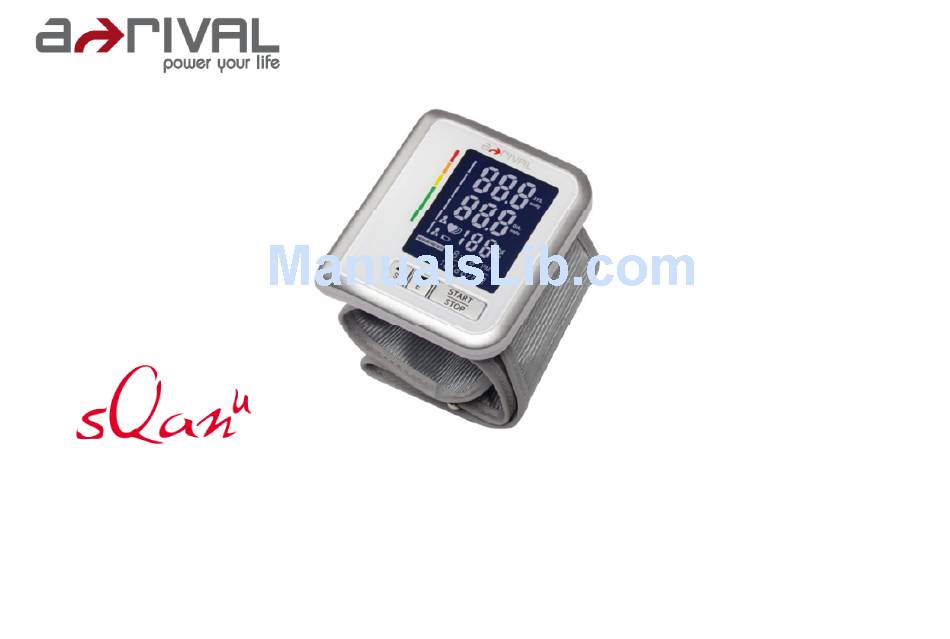

User Manual Bluetooth Wrist Blood Pressure Display
Thank you for choosing an a-rival product. A good choice.
Just in case that you are facing any problems with your device,
please call our support/service hotline +49 (0)511 / 123 83 506,
send us an e-mail to support@first-servicecenter.de or visit us on http://a-rival.de/facebook/
The detailed manual is also available in German on our website: www.a-rival.de
Advertisement
Table of Contents
Summary of Contents for A-rival sQan
- Page 1 Just in case that you are facing any problems with your device, please call our support/service hotline +49 (0)511 / 123 83 506, send us an e-mail to support@first-servicecenter.de or visit us on http://a-rival.de/facebook/ The detailed manual is also available in German on our website: www.a-rival.de...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................................4 General Description ............................................4 Measurement Principle ........................................... 4 LCD Display Signal ............................................7 Components ..............................................8 Before you start ......................................9 Power Supply and Charge Power ......................................... 9 Activate Your Device ........................................... 10 Setting Date and Time ..........................................10 Measurement ...................................... - Page 3 Please read this manual carefully before you use this unit, and keep it well for further checking. Important info for the disposal of waste (applicable in the countries of the European Union and other European countries with separate collection systems) On the device , the packaging or accompanying manuals for the product, the symbol of the crossed out wheeled bin indicates that this product must not be disposed of with normal household waste! They also contribute to the proper disposal of the unit to protect the environment and the health of those around you.
-
Page 4: Introduction
Introduction General Description Thank you for choosing an a-rival product. The device features body function measurement, not for medical purposes, and the result storage. This manual contains important safety and care information, and provides step by step instructions for using the product. - Page 5 Symbol for “TYPE BF APPLIED PARTS” Indications for use The a-rival HGBM01 is intended for use in measuring body functions of people with wrist circumference ranging from 13.5 cm to 21.5 cm (about 5-8.5 inches). It is intended for home and indoor use...
- Page 6 CAUTION This product is NOT a medical device! Pregnant women, pre-eclamptic people and people with severe obesity don’t use the device. If you need, please consult professional doctor. It is not intended for use on extremities other than the wrist or for functions other than obtaining an indication of the blood pressure. Please use the device under specified environment by user manual, otherwise the accuracy of the device will be influenced Do not confuse self-monitoring with self-diagnosis.
-
Page 7: Lcd Display Signal
LCD Display Signal SYMBOL DESCRIPTION EXPLANATION SYS. Systolic Blood Pressure High blood pressure DIA. Diastolic Blood Pressure Low blood pressure Pulse beat/minute Low Battery Low battery and please charge the power. + Lס mmHg Unit Measurement unit of blood pressure Irregular Heartbeat Irregular Heartbeat Detector Memory... -
Page 8: Components
Components WHO BLOOD PRESSURE CLASSIFICATION SYSTOLIC DIASTOLIC PULSE RATE TIME MEM/UP BUTTON START/STOP BUTTON SET/DOWN BUTTON CUFF USB-Interface... -
Page 9: Before You Start
Before you start Power Supply and Charge Power The battery of the device is built-in rechargeable lithium-ion battery, the battery current is 420 mAh. 2. Please use the USB cable to charge the battery, just like the following picture: Charging the power under following circumstances: _________________________________________________________________________________________ displays on the LCD •... -
Page 10: Activate Your Device
Activate Your Device When you get the a-rival HGBM01, the first thing you must do is to activate it. Please press and hold the SET button “E” to activate it, then it will enter the setting mode. Setting Date and Time Please proceed to time setting before your initial use so as to ensure each piece of record are labled with a time stamp. - Page 11 4. Repeat step 2 and 3 to confirm [MINUTE]. 5. Repeat step 2 and 3 to confirm [MONTH], [DAY], and [YEAR]. 6. After confirming [YEAR], the LCD will display “DONE” and the monitor will shut off.
-
Page 12: Measurement
Measurement Before you start measuring Positioning the Cuff Remove all accessories (watch, bracelet, etc) from your left wrist. If your physician has diagnosed you with poor circulation in your left wrist, use your right wrist 2. Roll or push up your sleeve to expose the skin. 3. -
Page 13: Pair-Up The Device With Your Smartphone Or Tablet
Pair-up the Device with Your Smartphone or Tablet Turn on Bluetooth and the “a-rival” app. Make sure both are ON when pair-up is proceeding. 2. When the monitor is OFF, press and hold the START button to start pair-up. The symbol... -
Page 14: Start Measurement
Start Measurement After correctly positioning the cuff, press START button to turn on the device, and it will complete the measurement process. Adjust to zero. Inflating and measuring. Display and save the measuring result. - Page 15 2. This device will proceed to data transmission after measurement The Bluetooth symbol “bt” blinks on the LCD indicates data is transmitting. If the data is successfully transmitted, the LCD will then display “ bt dONE ”. If the data transmission fails, the LCD will display “bt Err” instead.
-
Page 16: Data Management
CAUTION When using this device, please pay attention to the following situation which may interrupt blood flow and influence blood circulation of the patient, thus cause harmful injury to the patient: too frequent and consecutive multiple measurements; the application of the CUFF and itspressurization on any wrist where intravascular access or therapy, or an arterio-venous (A-V) shunt, is present;... -
Page 17: Delete The Records
Delete the Records When you did not obtain the accurate measurement, you can clear all the measuring results by following below steps. Under Memory Recalling Mode, press and hold both the “MEM” button “S” and the “SET” button “E” for 3 seconds. The LCD will display “dEL dONE”, indicating that memory clearing is complete. -
Page 18: Information For User
Information for User Tips for Measurement It can cause inaccuracy if the measurement is taken in the following circumstances. Within 1 hour Immediate measurement after dinner or drinking after tea, coffee, smoking Within 20 minutes When talking after taking a bath or moving your fingers In a very cold environment When you want to discharge urine... -
Page 19: Maintenance
Maintenance To obtain the best performance, please follow below instructions. Put in a dry place and Avoid immersing it in the water. avoid the sunshine. Clean it with a dry cloth in case. Avoid shaking and collision. Avoid dusty environment and unstable temperature surrounding. -
Page 20: About Blood Pressure
1. Please make sure the unit functions safely and it is in proper working conditions before use. Don’t service or maintain while the device is in use. 2. If you have any problems with this device, such as setting up, maintaining or using, please contact with SERVICE PERSONNEL of a-rival. Don’t open or repair the device by yourself. -
Page 21: Why My Blood Pressure Is Varies Even In One Day
Level Optimal Normal High-normal Mild Moderate Severe BloodPressure (mm Hg) <120 120-129 130-139 140-159 160-179 ≥180 <80 80-84 85-89 90-99 100-109 ≥110 Irregular Heartbeat Detector This Blood Pressure Monitor is equipped with an intelligent function of Irregular Heartbeat (IHB) Detector. During each measurement, this equipment records the heartbeat intervals and works out the standard deviation. -
Page 22: If The Result Is The Same If Measuring On The Right Wrist
Why the blood pressure I get from the hospital is different from home? The blood pressure is different even during 24 hour because of the weather, emotion, exercise etc, specially the “white coat” in hospital which makes the results are higher than the ones at home. If the result is the same if measuring on the right wrist? It is ok for both wrists, but there will be some different results for different person, so suggest you measure the same wrist every time. -
Page 23: Troubleshooting
Troubleshooting This section includes a list of error messages and frequently asked questions for problems you may encounter with your a-rival HGBM01. If the products not operating as you think it should, check here before arranging for servicing. PROBLEM SYMPTOM... -
Page 24: Specifications
Specifications Power supply 3.7V 420mAH Built-in rechargeable lithium-ion battery, 5V / 1A USB Display mode Digital LCD V.A.46.5x36.5mm Measurement mode Oscillographic testing mode Rated cuff pressure: 0kpa-40kpa (0mmHg-300mmHg) Measurement pressure: 5,3 kPa- Measurement range 30,7kPa (40mmHg-230mmHg) pulse value:(40-199)beat/minute Pressure: Accuracy 5°... -
Page 25: Complied European Standards List
Complied European Standards List Risk management ISO/EN 14971:2012 Medical devices — Application of risk management to medical devices Labeling ISO/EN 15223-1:2012 Medical devices. Symbols to be used with medical device labels, labelling and information to be supplied. General requirements User manual EN 1041: 2008 Medical equipment manufacturers to provide information EN 60601-1: 2006 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance IEC/EN 60601-1-11: 2010 Medical electrical equipment -- Part 1-11: General requirements for basic safety and essential performance - Collateral standard:... -
Page 26: Guarantee
Declaration of Conformity Hereby Baros GmbH declares, that the device HGBM01 is in compliance with the essential requirements and other relevant regulations of Directive 1999/5/EC. The Declaration of Conformity can be found at: www.a-rival.de User information/Contact If your device has a defect or you have problems with it, please contact our Service & Support Centre.
