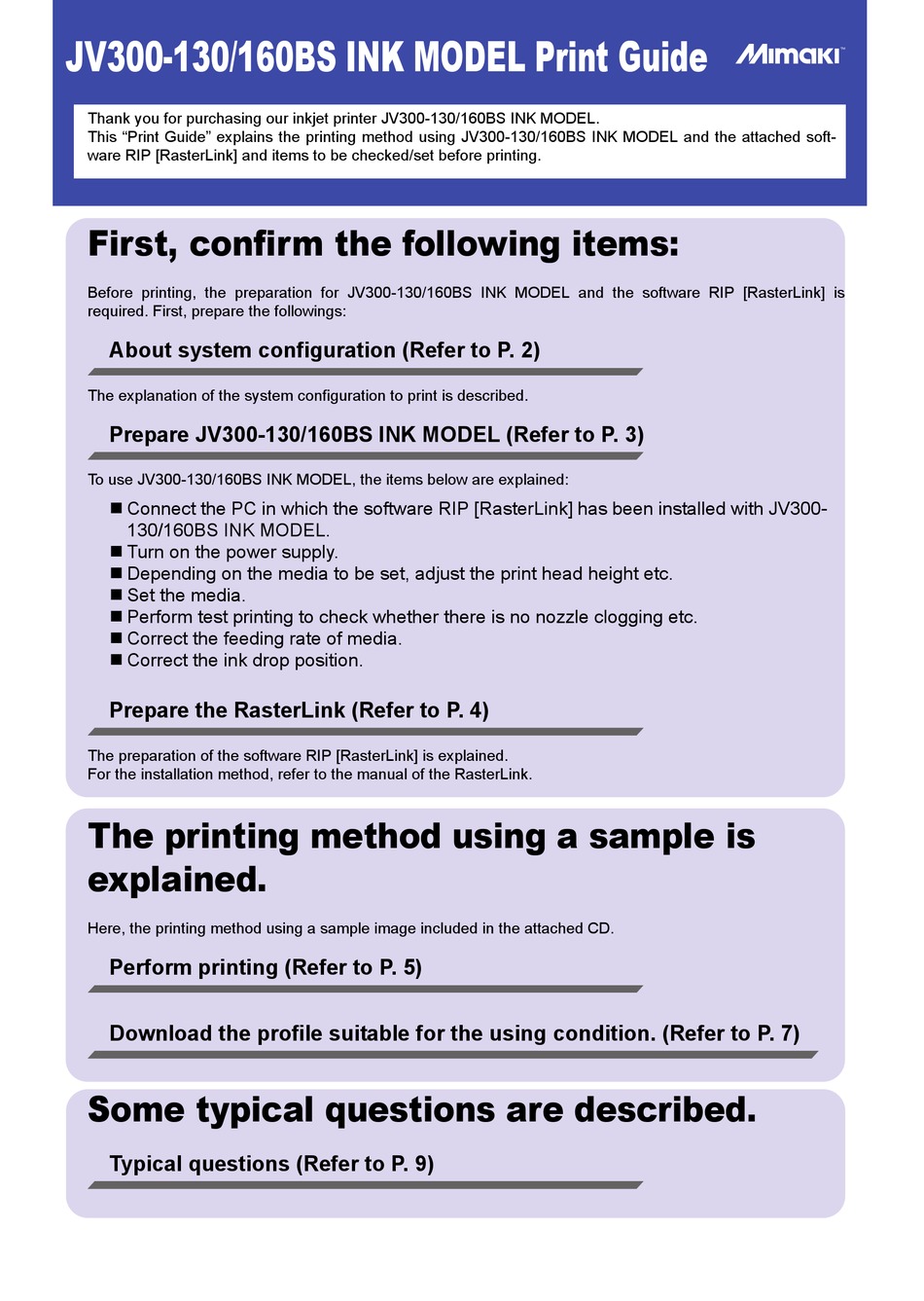

JV300-130/160BS INK MODEL Print Guide
Thank you for purchasing our inkjet printer JV300-130/160BS INK MODEL.
This "Print Guide" explains the printing method using JV300-130/160BS INK MODEL and the attached soft-
ware RIP [RasterLink] and items to be checked/set before printing.
First, confirm the following items:
Before printing, the preparation for JV300-130/160BS INK MODEL and the software RIP [RasterLink] is
required. First, prepare the followings:
About system configuration (Refer to P. 2)
The explanation of the system configuration to print is described.
Prepare JV300-130/160BS INK MODEL (Refer to P. 3)
To use JV300-130/160BS INK MODEL, the items below are explained:
 Connect the PC in which the software RIP [RasterLink] has been installed with JV300-
130/160BS INK MODEL.
 Turn on the power supply.
 Depending on the media to be set, adjust the print head height etc.
 Set the media.
 Perform test printing to check whether there is no nozzle clogging etc.
 Correct the feeding rate of media.
 Correct the ink drop position.
Prepare the RasterLink (Refer to P. 4)
The preparation of the software RIP [RasterLink] is explained.
For the installation method, refer to the manual of the RasterLink.
The printing method using a sample is
explained.
Here, the printing method using a sample image included in the attached CD.
Perform printing (Refer to P. 5)
Download the profile suitable for the using condition. (Refer to P. 7)
Some typical questions are described.
Typical questions (Refer to P. 9)
