AOpen reserves the right to revise all the
specifications and information contained
in this documentation which is subject to
change without notice.

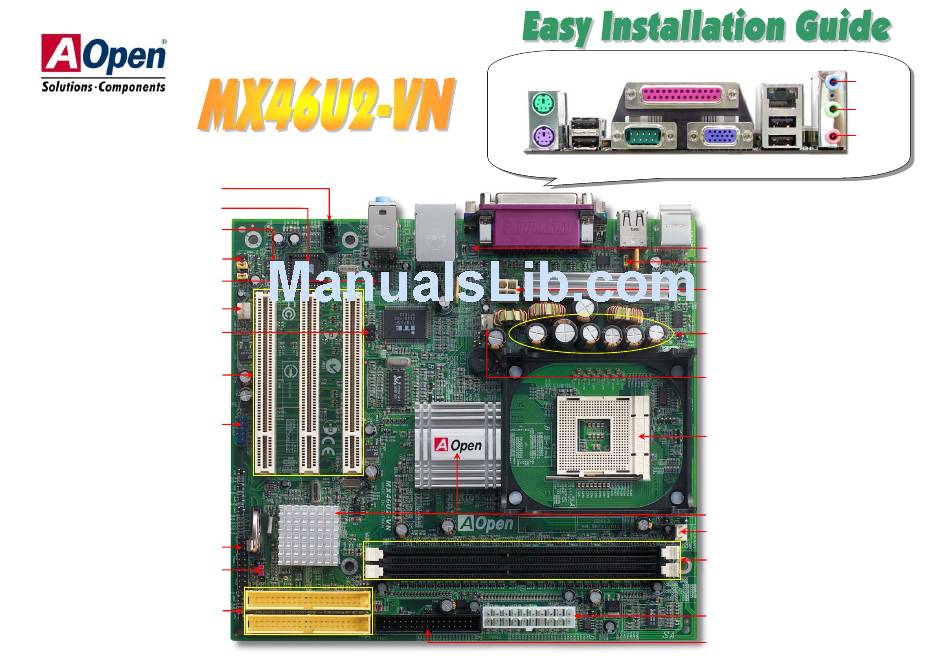

CD-IN Connector
2Mb Flash ROM BIOS
AC'97 CODEC
Front Audio Connector
Realtek RTL8201BL LAN Chip
SYSFAN3 Connector
IrDA Connector
32-bit PCI Expansion Slot x3
USB 2.0 Connector
Front Panel Connector
JP14 CMOS Clear Jumper
ATA100/133 IDE Connector x2
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
USB Ports
PS/2 Keyboard
COM 1 Port
Connector
RJ45 10/100
LAN Jack
Line-In
Speaker Out
MIC-In
VGA Port
USB Ports
Resetable Fuse
JP28 KB/Mouse Wakeup Jumper
4-pin 12V. ATX Power Connector
Low ESR Capacitors
SYSFAN2 Connector
478-pin CPU socket (Willamette/Northwood)
with Voltage and Frequency Auto-detection
®
®
that supports Intel
Pentium
4 1.4~2.4GHz+
CPU
SIS 650GX/962L Chipset
CPUFAN1 Connector
184-pin DIMMx2 supports DDR200/266 RAM
maximum up to 2GB
ATX Power Connector
FDD Connecto
r
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AOpen MX46U2-VN
Summary of Contents for AOpen MX46U2-VN
- Page 1 RJ45 10/100 SPP/EPP/ECP Parallel Port PS/2 Mouse LAN Jack Line-In Connector AOpen reserves the right to revise all the USB Ports Speaker Out specifications and information contained in this documentation which is subject to MIC-In change without notice. PS/2 Keyboard...
-
Page 2: Jp14 Clear Cmos
1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3. -
Page 3: Installing Processor
3. Installing Processor 5. Setting CPU Voltage and Frequency Setting CPU Core Voltage This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package This motherboard supports CPU VID function. The CPU core voltage will be automatically developed by Intel. Other forms of CPU package are impossible to be fitted in. detected. -
Page 4: Connecting Ide And Floppy Cables
6. Connecting IDE and Floppy Cables 8. Support Six USB 2.0 Connectors This motherboard provides six 2.0 ports to connect USB devices such as mouse, Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and IDE keyboard, modem, printer, etc. -
Page 5: Front Panel Connector
10. JP28 Keyboard/Mouse Wake-up Jumper 12. Front Panel Connector This motherboard provides keyboard / mouse wake-up function. You can use JP28 to Attach the power LED, speaker, and reset switch connectors to the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep flashing while enable or disable this function, which could resume your system from suspend mode with the system is in suspend mode. -
Page 6: Bios Upgrade Under Windows Environment
It is strongly recommended NOT to turn off the power or run any application during FLASH PROCESS. 15. AOpen Bonus Pack CD 17. Installing Onboard VGA Driver You can use the autorun menu of Bonus CD. Choose the utility and driver and select This motherboard integrates VGA Engine in chipset. -
Page 7: Part Number And Serial Number
It is very possible that your keyboard press Del to see if the is defective. system reboots. MX46 U2-VN R1.00 Mar 01. 2003 AOpen Inc. During system rebooting, press Del to enter BIOS Setup. Choose Award Plug and Play BIOS Extension v1.0A “Load Setup Default". - Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. http://club.aopen.com.tw/downloads Dear Customer, Thanks for choosing AOpen products.
