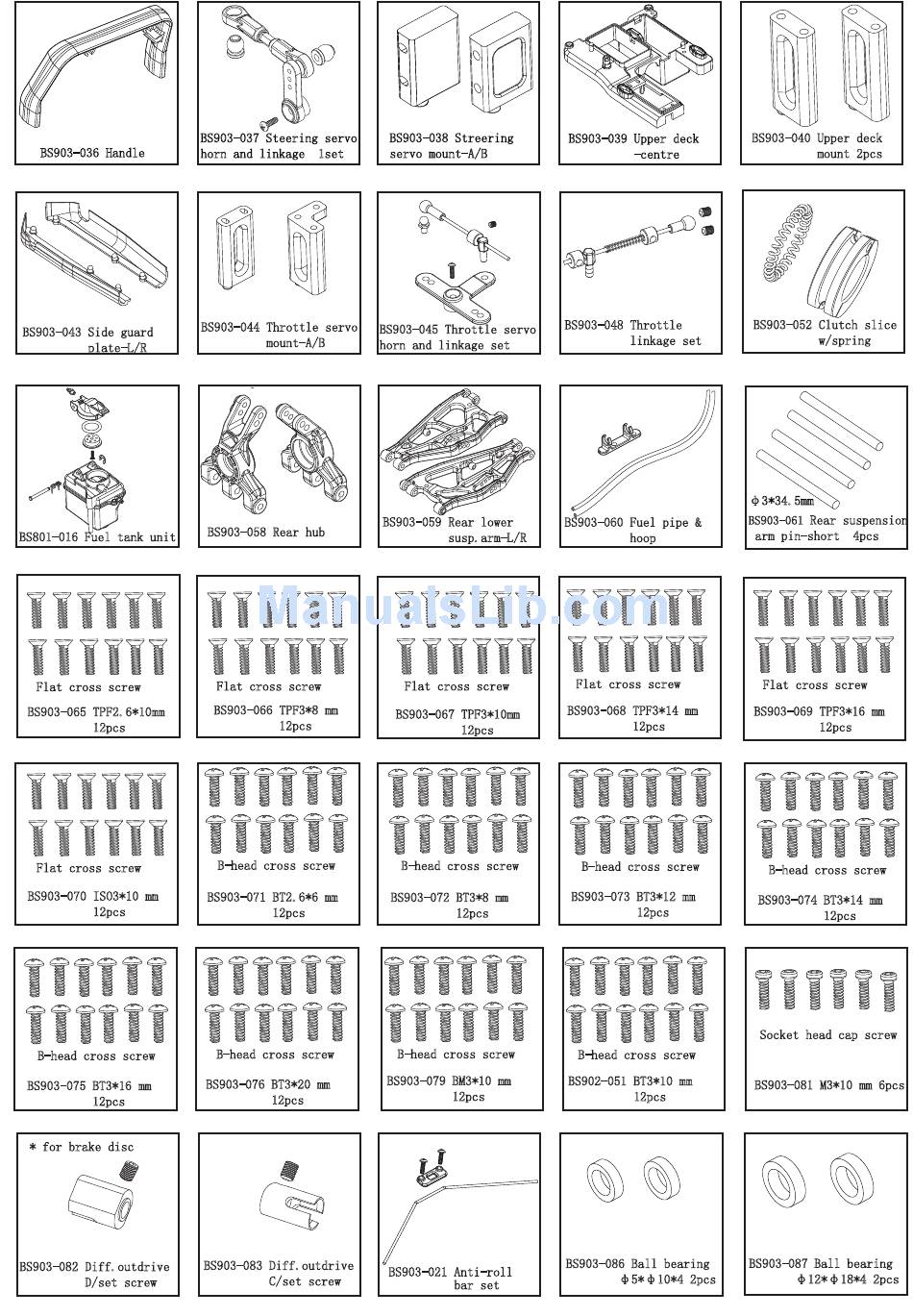

Enlarged version
BS903-036 Handle
BS903-043 Side guard
plate-L/R
BS801-016 Fuel tank unit
Flat cross screw
BS903-065 TPF2.6*10mm
12pcs
Flat cross screw
BS903-070 ISO3*10 mm
12pcs
B-head cross screw
BS903-075 BT3*16 mm
12pcs
* for brake disc
BS903-082 Diff.outdrive
D/set screw
BS903-037 Steering servo
horn and linkage 1set
BS903-044 Throttle servo
mount-A/B
BS903-058 Rear hub
Flat cross screw
BS903-066 TPF3*8 mm
12pcs
B-head cross screw
BS903-071 BT2.6*6 mm
12pcs
B-head cross screw
BS903-076 BT3*20 mm
12pcs
BS903-083 Diff.outdrive
C/set screw
BS903-038 Streering
servo mount-A/B
BS903-045 Throttle servo
horn and linkage set
BS903-059 Rear lower
susp.arm-L/R
Flat cross screw
BS903-067 TPF3*10mm
12pcs
B-head cross screw
BS903-072 BT3*8 mm
12pcs
B-head cross screw
BS903-079 BM3*10 mm
12pcs
BS903-021
BS903-021 Anti-roll
bar set
Anti-roll bar set
BS903-039 Upper deck
-centre
BS903-048 Throttle
linkage set
BS903-060 Fuel pipe &
hoop
Flat cross screw
BS903-068 TPF3*14 mm
12pcs
B-head cross screw
BS903-073 BT3*12 mm
12pcs
B-head cross screw
BS902-051 BT3*10 mm
12pcs
BS903-086 Ball bearing
φ5*φ10*4 2pcs
BS903-040 Upper deck
mount 2pcs
BS903-052 Clutch slice
w/spring
φ3*34.5mm
BS903-061
Rear suspension
arm pin-short 4pcs
Flat cross screw
BS903-069 TPF3*16 mm
12pcs
B-head cross screw
BS903-074 BT3*14 mm
12pcs
Socket head cap screw
BS903-081 M3*10 mm 6pcs
BS903-087 Ball bearing
φ12*φ18*4 2pcs
