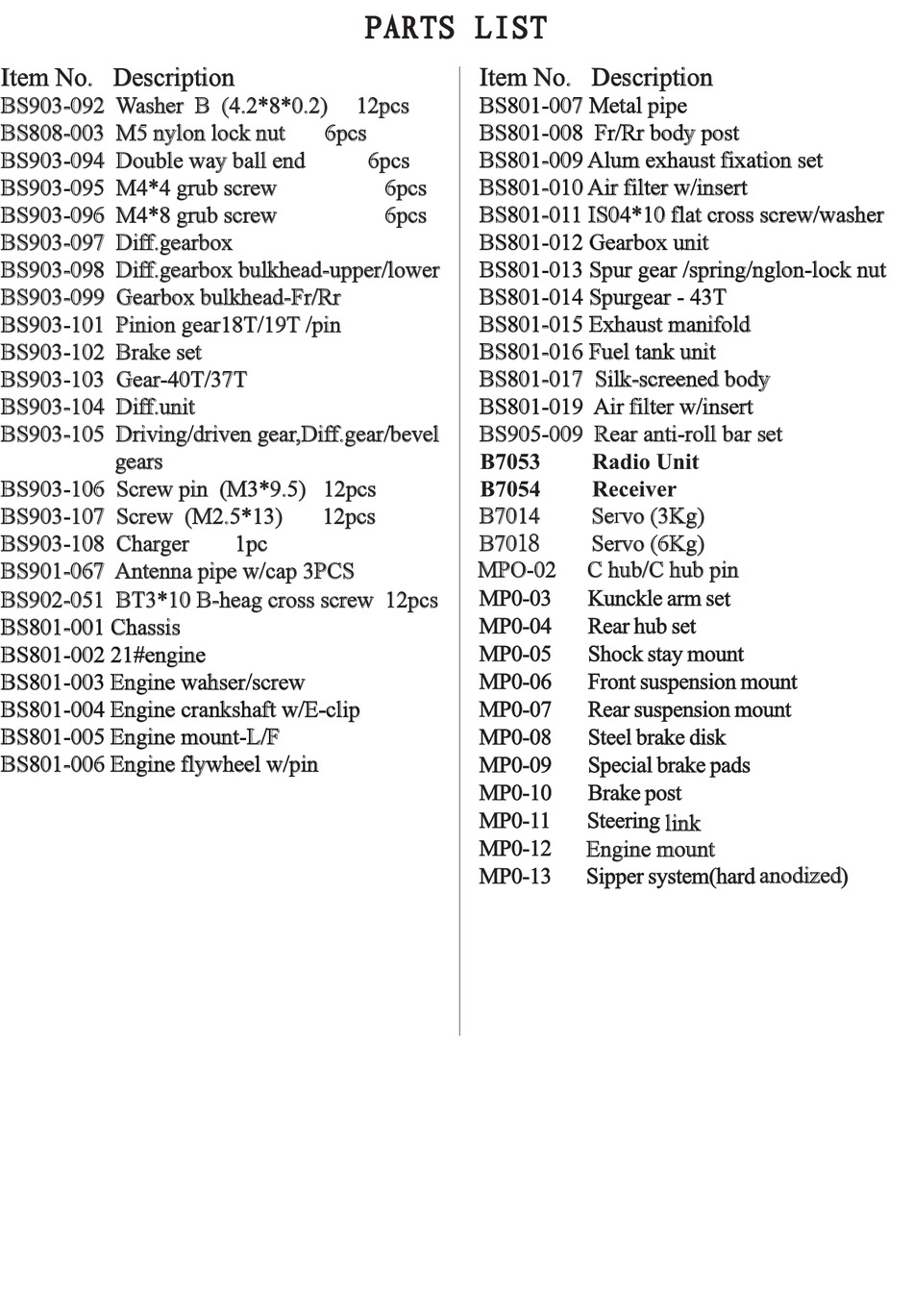

REDCAT EARTHQUAKE 3.5 Instruction Manual page 10

Item No. Description
BS903-092 Washer B (4.2*8*0.2)
BS808-003 M5 nylon lock nut
BS903-094 Double way ball end
BS903-095 M4*4 grub screw
BS903-096 M4*8 grub screw
BS903-097 Diff.gearbox
BS903-098 Diff.gearbox bulkhead-upper/lower
BS903-099 Gearbox bulkhead-Fr/Rr
BS903-101 Pinion gear18T/19T /pin
BS903-102 Brake set
BS903-103 Gear-40T/37T
BS903-104 Diff.unit
BS903-105 Driving/driven gear,Diff.gear/bevel
gears
BS903-106 Screw pin (M3*9.5) 12pcs
BS903-107 Screw (M2.5*13)
BS903-108 Charger
BS901-067 Antenna pipe w/cap 3PCS
BS902-051 BT3*10 B-heag cross screw 12pcs
BS801-001 Chassis
BS801-002 21#engine
BS801-003 Engine wahser/screw
BS801-004 Engine crankshaft w/E-clip
BS801-005 Engine mount-L/F
BS801-006 Engine flywheel w/pin
12pcs
6pcs
6pcs
6pcs
6pcs
12pcs
1pc
Item No. Description
BS801-007 Metal pipe
BS801-008 Fr/Rr body post
BS801-009 Alum exhaust fixation set
BS801-010 Air filter w/insert
BS801-011 IS04*10 flat cross screw/washer
BS801-012 Gearbox unit
BS801-013 Spur gear /spring/nglon-lock nut
BS801-014 Spurgear - 43T
BS801-015 Exhaust manifold
BS801-016 Fuel tank unit
BS801-017 Silk-screened body
BS801-019 Air filter w/insert
BS905-009 Rear anti-roll bar set
B7014 Servo (3Kg)
18
B7022 Servo (6Kg)
MPO-02 C hub/C hub pin
Engine mount
link
anodized
