Commissioning,
Programme chart and Settings

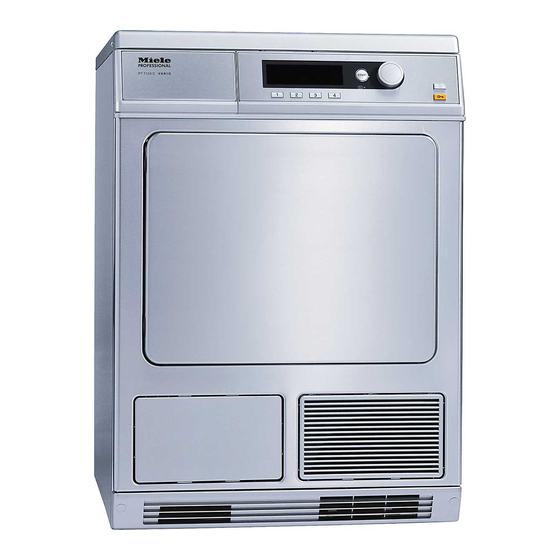

PT 7135 C Vario
en - GB
To avoid the risk of accidents or
damage to the machine, it is
essential to read these instructions
before it is installed, commissioned
and used for the first time.
M.-Nr. 09 871 180

Advertisement

Table of Contents
loading

Related Manuals for Miele PT 7135 C Vario

Summary of Contents for Miele PT 7135 C Vario

  • Page 1 Commissioning, Programme chart and Settings PT 7135 C Vario en - GB To avoid the risk of accidents or damage to the machine, it is essential to read these instructions before it is installed, commissioned and used for the first time.

  • Page 2: Table Of Contents

    Contents Commissioning the tumble dryer ........4 Programme chart .
  • Page 3 Contents Target groups ........... . 30 Demo programme .

  • Page 4: Commissioning The Tumble Dryer

    The commissioning process must be carried out in full to determine the settings for daily operation.* * Some settings can only be altered during the commissioning process. After that, these can only be changed by a Miele service technician. Setting the language J Settings #eština...
  • Page 5 Commissioning the tumble dryer To set the time of day The time may already have been set at the factory. If it has, and is correct, you can skip this section. It is possible to alter the time at any stage via the Settings menu. Settings Back A Time of day...
  • Page 6 Commissioning the tumble dryer Determining target groups By selecting target groups you are determining the programme range of the washer-disinfector. You can see which programmes are assigned to each target group under "Programme chart" later in this booklet. Settings § Small businesses Target groups ~ Professional cleaners ~ Special programmes...
  • Page 7 Commissioning the tumble dryer Payment system Each of these settings must now be Settings for coin operation. confirmed (and altered if required). More details about the settings are No coin box given at the end of this booklet. All additional settings are skipped. Continue with "Code Supervisor Place a cross in the box level".
  • Page 8 Commissioning the tumble dryer – Signal to pin 7 Supervisor level code Setting the feedback signal for the The Settings/Supervisor level menu can coin box. be locked with a code to prevent it being accessed by unauthorised Programme end personnel (the Language J setting can Release the start button still be altered).
  • Page 9 Commissioning the tumble dryer To repeat the commissioning process If you are not certain that all of the settings are correct, you will need to repeat the commissioning process. Set up successful Back A ^ Select Back and confirm your selection. To finish the commissioning process –...
  • Page 10 Commissioning the tumble dryer – 2. Start a cool air programme To complete the commissioning process, a programme cycle using cool air (Cool air or Timed drying cool air) needs to be started. If the power to the tumble dryer is switched off before the first programme is started (e.g.

  • Page 11: Programme Chart

    Programme chart Basic programmes (Factory default) Cottons t ** Max. load 6.5 kg* Use for Normal wet cotton laundry, as described in Cottons Normal . Notes – Items are dried to a "Normal" level only. – Cottons t is the most energy-efficient programme for drying normal wet cotton laundry.
  • Page 12 Programme chart Woollens handcare max. 2.5 kg Fabric type – Woollen garments. Note – This programme only fluffs up woollen garments. They are not dried completely by this programme. – Remove garments as soon as the programme has finished and leave to finish drying at room temperature. Smoothing max.
  • Page 13 Programme chart Outerwear max. 3.5 kg Normal, Hand iron r Fabric type – Outerwear which is suitable for drying in a tumble dryer. Proofing max. 2.5 kg Normal Fabric type – For drying microfibre fabrics, skiwear, fine, closeweave cotton garments (poplin) or tablecloths which are suitable for drying in a tumble dryer and have been treated to provide a water and dirt resistant finish.
  • Page 14 Programme chart Silks handcare max. 1.5 kg Fabric type – Silks, e.g. blouses and shirts. Note – Smooths out creasing. – Remove garments as soon as the programme has finished and leave to finish drying at room temperature. Reactivate max. 2.5 kg Normal Fabric type –...

  • Page 15: Household

    Programme chart Basket programmes (20-90 min) Note – The drying basket (optional accessory) must be in place when items are dried or aired using this programme. – To prevent the risk of damage when the drum rotates, do not place large items which could come into contact with the drum or drum ribs in the drying basket (e.g.

  • Page 16: Small Businesses

    Programme chart Small businesses Cottons max. 6.5 kg Dry plus, Dry 0 % residual moisture Fabric type – Single and multi-layered cotton fabrics such as: – Towelling, T-shirts, underwear, flannelette bed linen and baby clothes. – Workwear, jackets, cotton blankets, aprons, face flannels, tea towels, bed linen, towels, table linen that can be washed hot, overalls.
  • Page 17 Programme chart Timed drying hot air (20-60 min) max. 6.5 kg Fabric type – Multi-layered fabrics whose layers have different drying characteristics, – Voluminous items e.g. jackets, pillows. – For drying individual items. – Bath towels, swimwear, tea-towels. – Select Low temperature for fabrics with the r symbol. Note –...

  • Page 18: Professional Cleaners

    Programme chart Professional cleaners WetCare sensitive max. 2.5 kg Items – For non washable garments Note – Items are dried and aired briefly. WetCare silks max. 2.5 kg Items – For non washable garments which crease easily. Note – Items are dried to a "Machine iron" level. WetCare intensive max.

  • Page 19: Special Programmes

    Programme chart Special programmes You can create 5 special programmes and name these. Enter their details in the table below. – Example: Dry+ – – Residual moisture programme – Final residual moisture level: -6 % – Additional drying time: 30 min –...

  • Page 20: Changing Default Settings

    – Code not required Some of the settings may be changed. – Code required All of the settings may be changed. Please contact Miele for details. Note: The tumble dryer must be commissioned as described at the beginning of this booklet.

  • Page 21: Settings/Supervisor Level Menu

    Settings/Supervisor level menu To open the Settings menu If the Settings menu is not locked, some of the settings may be changed. Cottons Programme selection ... Minimum iron Settings F ... Woollens handcare 10:00 Smoothing ^ Select Settings J from the entry menu and confirm your selection with the multi-function selector.

  • Page 22: To Open The Settings Menu Via The Supervisor Level

    Settings/Supervisor level menu To open the Settings menu via the Supervisor level The Settings menu can be locked against unauthorised use (the Language J can still be changed). It will then only be able to be accessed at Supervisor level by entering a code.

  • Page 23: Language J

    Settings/Supervisor level menu Language J Language menu The display can be set to appear in You can select whether you want an one of several different languages. additional welcome screen asking for a language to be selected to appear To select the language you want, go to again after the end of a programme the Language J sub-menu.

  • Page 24: Supervisor Level

    Settings/Supervisor level menu Supervisor level Anti-crease You can alter the access code to the At the end of the programme the supervisor level. drum will continue to rotate at intervals for two hours to prevent ^ Enter the current code. laundry creasing, if you do not wish to remove it immediately.

  • Page 25: Time Of Day

    Settings/Supervisor level menu Time of day Standby First select whether you want the To save energy, the display goes out clock displayed as a 24 hour or 12 after 10 minutes and the indicator hour clock, or to not display it at all. light for the Start button flashes Then set the current time of day.

  • Page 26: Extended Cool Down

    Settings/Supervisor level menu Extended cool down Temperature unit The cooling down phase which takes For displaying settings with place before the end of a programme temperatures in °C or °F. can be lengthened if required. This – °C (factory default) makes the garments easier to handle.

  • Page 27: Drying Levels

    Settings/Supervisor level menu Drying levels Clean out airways The electronic unit in the dryer Cottons drying levels detects the degree of a blockage Please note: Changing the settings for caused by fluff or detergent residues drying levels in the Settings menu will in the fluff filter or ducting, and the also affect the Cottons t following prompt comes up in the...

  • Page 28: Clean Condenser Unit

    Settings/Supervisor level menu Clean condenser unit Delay start Check the condenser unit from time You can set a later start time using to time, and clean it if necessary. the Timer (see "Timer" in the The Clean the condenser unit Operating and installation maintenance message will remind instructions).

  • Page 29: Controls

    The first three of these are to be cannot then get back into found in the basic menu. Supervisor level. If you need to access it please contact the Miele Compile the 12 programmes first, Service Department. before you activate the Laundrette option (see Favourites setting in this booklet).

  • Page 30: Logo

    Settings/Supervisor level menu Logo – Off (factory default) – On The welcome logo "MIELE" or ^ To switch on or off, press OK until "CUSTOMER'S LOGO" appears with control options WS-shortcut keys + information is displayed. Logo, WS-shortcut keys ex/int time.
  • Page 31 Settings/Supervisor level menu To set Special programmes Special programmes must first be activated under the Target groups setting. Settings Back A Special programmes S.prog1 S.prog2 S.prog3 ^ Select S.prog1, 2, 3, 4 or 5. Settings Back A Special programmes Res. moisture prog. Timed programme ^ Decide whether you want to select a residual moisture or a timed programme.
  • Page 32 Settings/Supervisor level menu ^ Using the multi-function selector, 2. Individual programme creation select and confirm each letter or system symbol in turn to create the You can define the programme programme name. features by changing the basic A maximum of 7 symbols may be settings.

  • Page 33: Settings Which Can Only Be Changed During The Commissioning Process

    If you wish to change the settings after programming changes can be made the commissioning process, please within a specified time period without contact the Miele Service Department. losing the coins. – Off Payment system – Immediately after starting A coin box needs to be fitted.

  • Page 34: T-Max Exceeded

    Settings/Supervisor level menu T-max exceeded Duration hot air T-max exceeded setting. A security This determines the maximum time margin to prevent the coin box duration for the Hot air programme in being tampered with. Controls option WS short cut keys, ex/int time .
