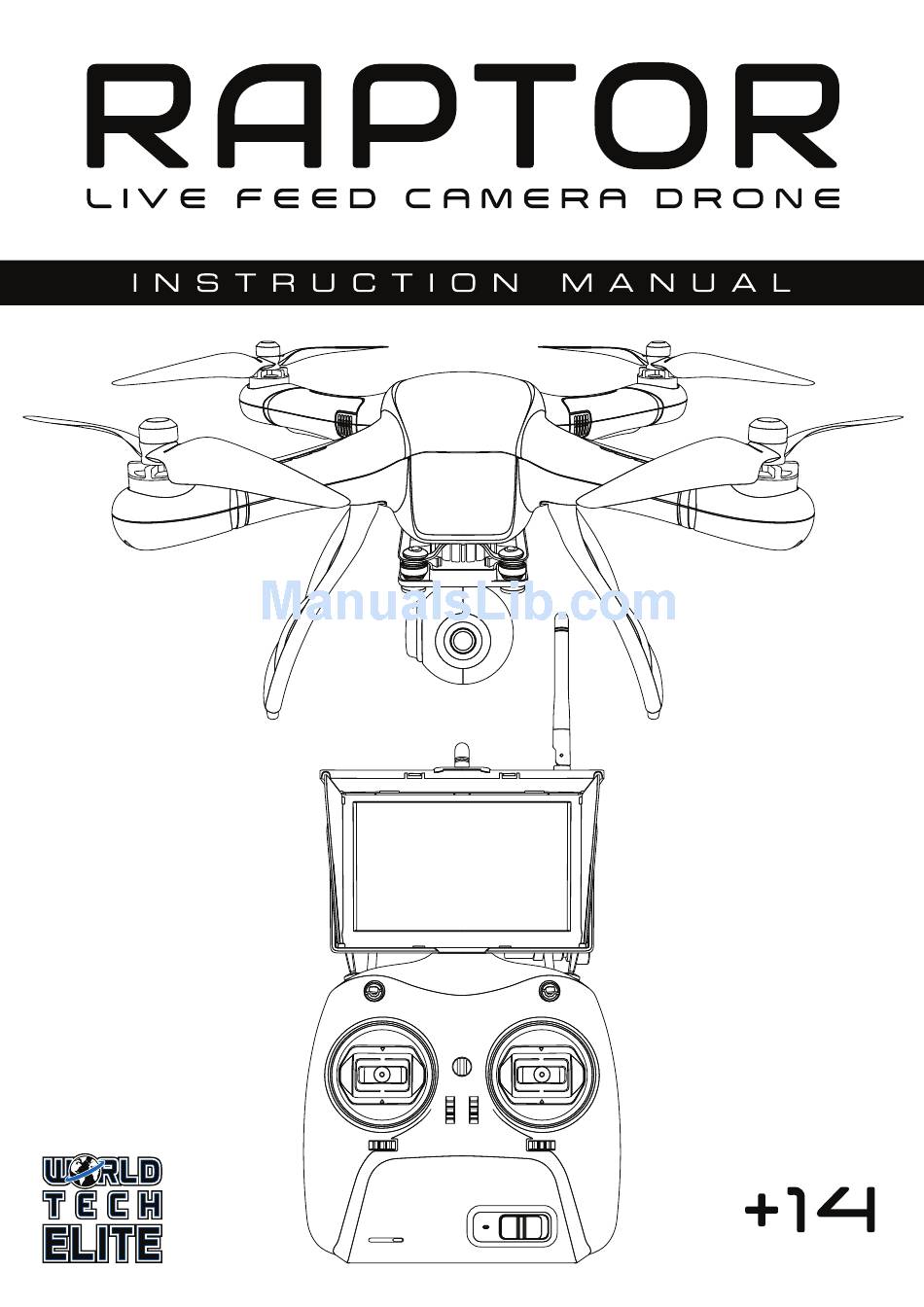

- Page 2 I N T R O D U C T I O N Support & Service Thank you for purchasing the World Tech Elite Raptor Live Feed Camera Drone. This kit contains advanced equipment that connects to both WiFi signals and GPS Satellites.
-
Page 3: Table Of Contents
C O N T E N T S 1 Overvi ew 1-1 Drone Overview 1-2 Transmitter Overview 1-3 Drone Assembly 1-4 Drone Battery 1-5 Transmitter Battery 2 DRONE 2-1 Drone Status Indicators 2-2 Flight Modes 3 Transmitter 3-1 Transmitter Operations 3-2 Live Feed Screen 4 GIMBAL &... - Page 4 7. Any part of this disclaimer is subject to change without notice, please visit worldtechtoys.com to download the latest version for reference. 8. For the best flying experience only use genuine World Tech Elite accessories. 9. Remove all rotor blades before calibrating or changing parameter settings.
- Page 5 Attention! For safe operation, read this user manual completely before flying. Drone Battery Notes 1. When storing the drone, remove the battery pack and store the battery pack in an area out of reach of children. 2. Do not dispose the battery pack into a fire or store in any high temperature environments. 3.
-
Page 6: Overview
1 OVERVIEW 1-1 Drone Overview FRONT Drone Body Orange LED Indicator Landing Skids Integrated Camera Landing Skid Rubber Pads ROTORS Rotor Nut Rotor Motor BACK GPS Status Indicator (Blue LED) Power Buttons Green LED Indicator Battery Level Indicator Drone Battery Gimbal Assistant Port Image Transmitter 3 Axis Gimbal... -
Page 7: Transmitter Overview
1-2 Transmitter Overview FRONT Live Feed Antenna Live Feed Screen Toggle Middle Switch Down Middle Middle Down Down Left Stick Right Stick Trimming Buttons T1-T4 Neck Strap Attachment Power Switch Power Indicator Sunscreen Shade Video Output BACK Charging Port Screen Power Indicator Channel Selector Live Feed Screen Antenna Power Button... -
Page 8: Drone Assembly
Figure 1 M oto r Damaged rotors should only be replaced with official Warning World Tech Elite Raptor Live Feed Camera Drone Rotors. Please use the original World Tech Elite rotors only. Warning Warning Please use the rotor wrench to remove and secure rotor nuts. -
Page 9: Drone Battery
1-4 Drone Battery The Raptor Battery Pack is designed specifically for this drone and has a built-in battery level indicator to easily check battery levels before and during each flight. Battery Pack Specifications: Figure 1 Battery Capacity: 3S, 5200mAh Battery Voltage: 12.6V (Fully Charged) Battery Storage Voltage: 11.4V... -
Page 10: Drone
2 DRONE 2-1 Drone Status Indicator Solid Orange + Solid Green + Solid Blue GPS Initialization Completed Top View (GPS signal is greater than or equal to 5) GPS Stabilized Smooth Mode Available Solid Orange + Solid Green + Flashing Blue Blue Indicator GPS Initialization Incomplete Top of Drone... -
Page 11: Transmitter
(5) Return To Home Mode (L1 to Down Position, L2 to Middle Position) Toggle L1 to the Down Position to activate Return to Home Mode, the drone will return to the take off point automatically and land as long as the GPS signal is greater than 5. The drone will maintain its current height when returning home if the drones height is higher than 65 feet. - Page 12 (2) L1 Mode Control Switch (3 Position Switch) L1 Middle Position: Stabilized Smooth GPS Mode. This mode has A/B Type: Middle A. Normal Stabilized Mode: Indoor or Outdoor but a weak GPS signal (GPS signal is less than 5). B. Stabilized Smooth GPS Mode: Outdoor and strong GPS signal (GPS signal is greater than or equal to 5). L1 Down Position: Return To Home Mode Down L1 Up Position: Aerial Photography Mode...
- Page 13 (7) Trimming Buttons The trim buttons are used for calibrating the neutral zone of the controls. Generally there is no need to calibrate after the initial calibration via the Assistant Software. When the neutral position has deviated and the software is not available you can use the trim buttons on the transmitter to calibrate your drone so that it hovers steady.
- Page 14 (8) Link between the Transmitter and Drone The link between transmitter and drone has already been established so you can initially skip this procedure. If you ever replace the transmitter, re-establishing the link is required. Link the transmitter by taking the steps below: Be sure the drone is powered off.
- Page 15 Mode 2 Figure 1 Figure 3 Right Stick Left Stick Front Front Figure 2 Figure 4 Front Front When hovering, if the drone is moving from its position. You will need to recalibrate Caution via the assistant software or trimming buttons. (10) Switching between Mode 1 and Mode 2 Use the following procedure to switch modes: Turn the drone off.
-
Page 16: Live Feed Screen
3-2 Live Feed Screen (1) Live Feed Display Overview The Live Feed Screen has a built-in rechargeable battery pack and 5.8Ghz wireless receiver. The screen can display live footage from the drones camera and gives you a birds eye view during flight. Power Button Drone Battery Antenna Port... -
Page 17: Gimbal & Camera
4 Gimbal & Camera The 3-axis stabilized gimbal provides a steady mobile platform for the integrated HD camera. 4-1 Gimbal and Camera Operation (1) Camera Memory Card Figure 1 Figure 1 The camera stores high definition pictures and videos to an installed memory card, the camera supports a memory card size up to 64GB. -
Page 18: Camera Settings
(4) Screen Navigation and Settings Overview 视频 Video Video Video 1080FHD 1920 X 1080 Resolution Resolution 720P 1280 X 720 Video Duration Video Duration WVGA 848 X 480 Exposure Exposure VGA 640 X 480 This is the starting screen for Video Move the gimbal joystick up and Move the gimbal joystick to the right Settings. -
Page 19: Flight
5 Flight 5-1 Flight Notes (1) Flight Environment Requirements Only fly in open areas without tall trees or buildings. Metal structures will affect the GPS system and reduce the stabilization of the drone. Do not use the drone in severe weather conditions. This includes winds exceeding 20 mph, snow, rain and fog. Avoid high voltage power lines as they will affect the drones internal compass. -
Page 20: Flight Operation
5-3 Flight Operation (1) Take Off (In an open are with a strong GPS signal recommended) Place the drone on a flat surface in an open area with the drones battery LED indicators facing toward operator (Figure 1). Avoid people, obstacles, trees, high voltage lines and electromagnetic interference while flying. To adjust the live feed screen channel, power on the Live Feed Screen and press the channel selector until a clear image is displayed. -
Page 21: Assistant Software
6-1 Software Download and Firmware Upgrades The Raptor Live Feed Camera Drone has assistant software that helps keep your drone up to date and ready to fly. Calibrate the drone and transmitter or use the Drone Control Simulator to try out the transmitters different controls and see the drones movements in 3D and in real time. - Page 22 (2) Calibration Result Verification A (Aileron: Fly left and right) E (Elevator: Fly forward and backwards) Firmware Status English T (Throttle: Fly up and down) RT Sensor Transmitter Calibrate RC R (Rudder: Turn left or right) Drone Simulator The sliders standard ranges for the transmitter: Middle Standard Range: 1520 ±5 Aerial Photo Mode Hovering...
