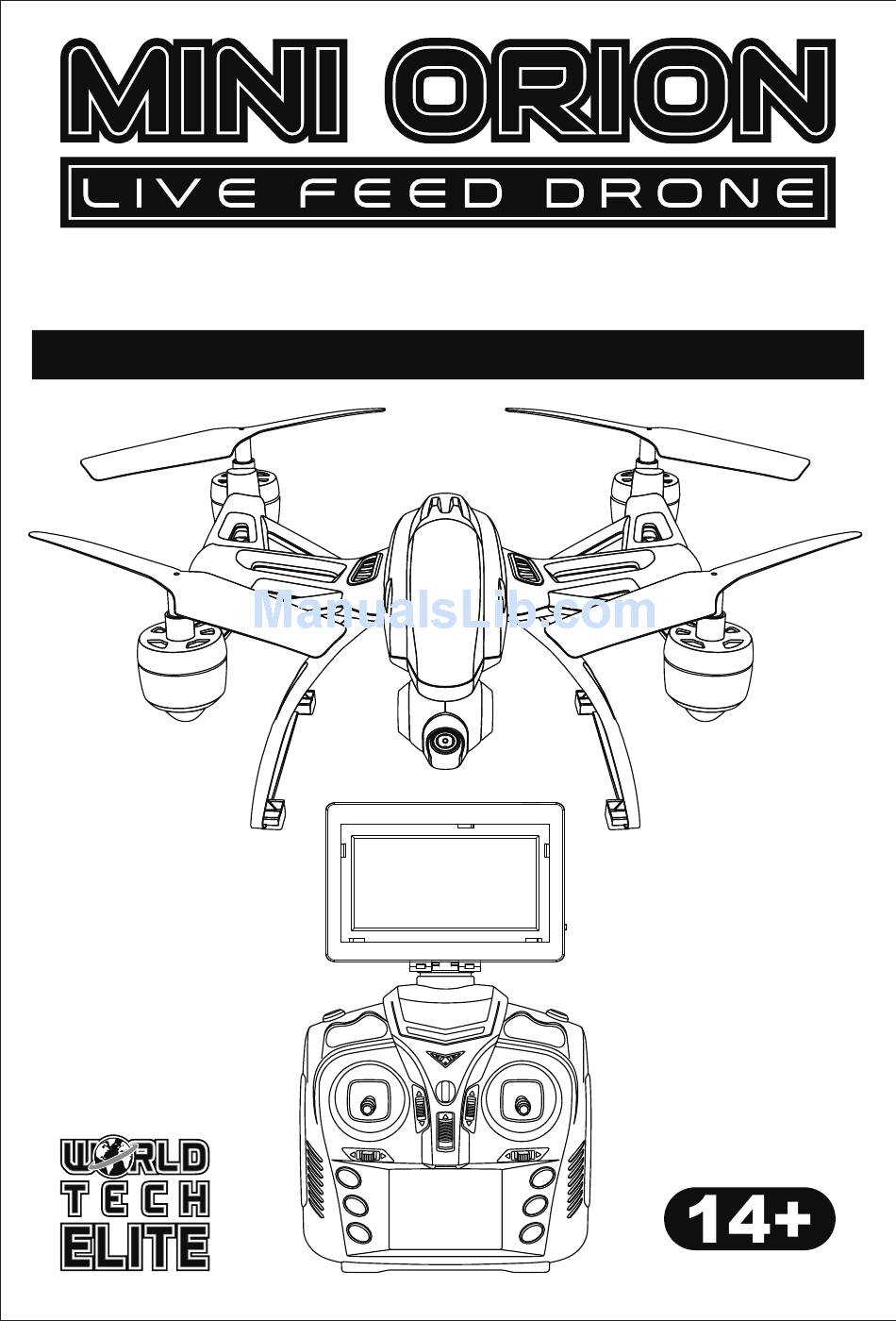

- Page 1 LIVE FEED PICTURE / VIDEO CAMERA 2 . 4 G H z 4 . 5 C H D R O N E I N S T R U C T I O N M A N U A L...
-
Page 2: Safety And Precautions
I N TRODUCTION Thank you for purchasing this amazing World Tech Toys product. This drone is suitable for indoor and outdoor flight. Please carefully read the entire manual before operating this drone and keep it for reference in the future. SA FET Y &... -
Page 3: Dron E Diagram
DRON E DIAGRAM Rear Rotor Blades Battery Bay LED Lights Landing Skid Live Feed Front Rotor Blades Picture/Video Camera TR A NS MITTER DIAGRAM Live Feed Screen Antenna Power Switch Power Indicator Speed Modes Flip Stunt Mode Throttle Trim Forward/Backward Trim Ascend/Descend Forward/Backward [Left/Right Turning]... -
Page 4: Installing The Transmitter Batteries
INSTALLING THE TRANSMITTER BATTERIES Battery Cover First remove the screw on the CAUTION: battery cover and remove the 1. Make sure the polarity of the battery cover itself. Then batteries are correctly installed. install 4 AA batteries. Make 2. Do not mix old and new sure they are installed with the batteries. - Page 5 I NSTAL L ING T HE LI VE FEE D S CR EE N Live Feed Screen Parts SCREWS Follow the steps below to install the live Take the Live Feed Screen feed screen onto the transmitter. Ensure Part A and slide it onto the that screen is secure to avoid damage to antenna from the front of the your screen or transmitter.
- Page 6 CHARGING THE LIVE FEED SCREEN Plug the included USB charging cable into a computer. The LED light on the USB charger will turn on. Connect the live feed screen and the LED light will turn off while charging. The LED light will turn back on when the internal battery is fully charged.
-
Page 7: Installing The Rotor Guards
INSTALLING THE ROTOR GUARDS The drone comes with 4 rotor guards. The rotor guards are universal and can be installed anywhere on the drone. Pop the rotor guard into place in as shown in the illustration above. Make sure the 2 pegs underneath the rotor guards line up with the 2 holes on the drone. -
Page 8: Installing The Memory Card
INSTALLING THE MEMORY CARD Memory Card Installation: The gold contact points on the memory card should be facing you. Insert the memory card into the slot, lightly press until the memory card clicks into place. Removing Memory Card: Press the memory card to eject the card. If the drone is on you will see a steady BLUE LED LIGHT and a BLINKING RED LED LIGHT unless the memory card is properly inserted. - Page 9 VIEWING VIDEO/PHOTO FILES ON THE COMPUTER If you want to view your video or photo files from the drone on your computer, you’ll have to transfer them over first. Videos and photos can be viewed using media players. If you are having issues viewing your drone videos, try downloading and viewing the video files with VLC media player.
-
Page 10: Flying The Drone
FLYING THE DRONE Before flying the drone for the first time please read the instructions carefully and make sure you fully understand how to control your drone. AUTOPILOT BUTTON Once you’ve gone through the flight preparation, AUTOPILOT press the AUTOPILOT button once and the drone’s rotor will start to spin. -
Page 11: Emergency Stop
FLYING THE DRONE CONTINUED EMERGENCY STOP If the drone crashes or to avoid a collision you will need to do an EMERGENCY STOP. Push the left joystick to the bottom left and push the right joystick to the bottom right at the same time and hold the position until the drone shuts down. -
Page 12: Ad Justing The Trim
AD JUSTING THE TRIM When drone moves with no directional transmitter input, adjust the trim controls until hovering is stable. If the drone is spinning to the left, push the Left Turn/Right Turn Trim button to the RIGHT until the drone stops spinning. -
Page 13: Replacin G The Rotors
REPLACIN G THE ROTORS The rotors may become damaged during a collision. The drone comes with 4 spare rotors. Please replace damaged rotors immediately. The drone comes with 2 A rotors and 2 B rotors. The A and B rotors need to installed on specific locations on the drone for it to fly properly. -
Page 14: Post Flight
POST FLIGHT After you are done flying the Drone make sure the battery pack on the drone is disconnected and the transmitter power is turned off. If you are not going to use the drone for a long period of time, please remove the AA batteries to prevent the batteries from draining or leaking. - Page 15 NOTES...
- Page 16 NOTES Website: www.worldtechtoys.com Email: customerserv@worldtechtoys.com SPECIFICATIONS, Phone: (877) 498-8697 COLORS AND CONTENT Monday - Friday / 9:00AM - 5:00PM / Pacific Time MAY VARY FROM ILLUSTRATIONS MADE IN CHINA WWW.WORLDTECHTOYS.COM...
