PS-3710A Series
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet before
using the product.

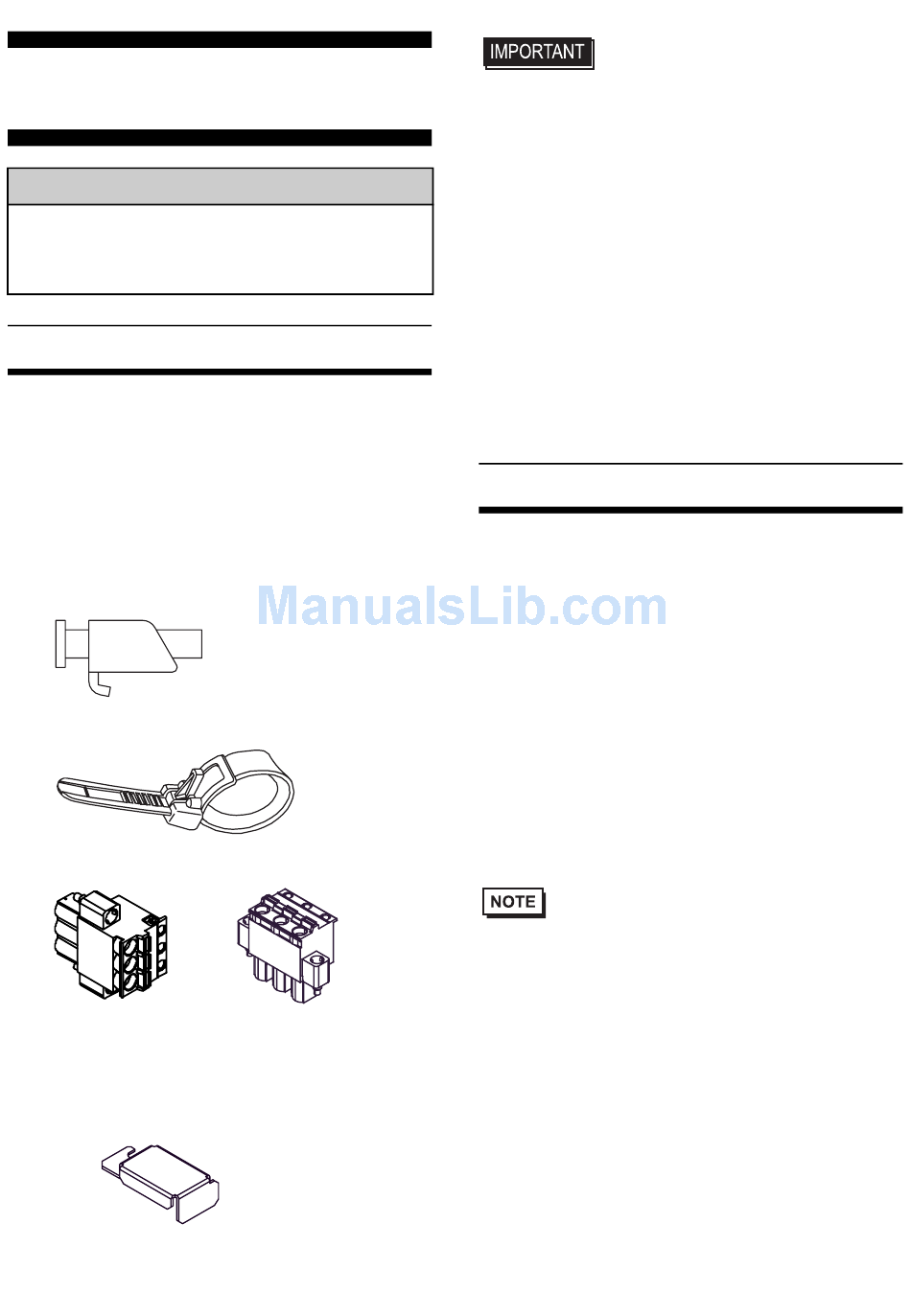

Package Contents

(1) PS-A Unit (1)
(2) English and Japanese Installation Guides
(one of each) <This Guide>
(3) Warning/Caution Information (1)
(4) Installation Gasket (1) (attached to the
PS-A unit)
(5) Installation Fasteners (Set of 4 x 2)
(6) USB Cable Clamp (2 ports) (2)
(7) Power Plug (1)
AC type
(5.08mm pitch)
(8) Power Switch cover (cover:1, secrew:1)
(AC type Only)
DC type
(7.62mm pitch)
• Be careful when installing the PS-A not
to damage the built-in HDD.
This unit has been carefully packed, with
special attention to quality. However, should
you find anything damaged or missing,
please contact your local PS-A distributor
immediately.
When you order a PS-A unit built to your
specifications, that PS-A package should
include each optional item's Installation
Guide. Please use that guide to check the
contents of each optional item's package.
About the Manual
For detailed information on PS-A series, refer
to the following manuals.
• PS-3710A/PS-3711A Series Hardware
Manual
• PS-3710A/PS-3711A Series Refer-
ence Manual
• API Reference Manual
Manual can be downloaded from Pro-face
Home Page.
URL
http://www.pro-face.com/otasuke/
• The drivers and utilities for PS-A can be
downloaded from Pro-face Home Page.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS3710A-T42 and is the answer not in the manual?

Questions and answers

Related Manuals for Pro-face PS3710A-T42

Summary of Contents for Pro-face PS3710A-T42

  • Page 1: Package Contents

    Manual • PS-3710A/PS-3711A Series Refer- ence Manual • API Reference Manual (6) USB Cable Clamp (2 ports) (2) Manual can be downloaded from Pro-face Home Page. http://www.pro-face.com/otasuke/ (7) Power Plug (1) • The drivers and utilities for PS-A can be downloaded from Pro-face Home Page.

  • Page 2: Part Names And Functions

    Part Names and Functions Rear Front PS3710A-T42 Left Side Right Side Bottom PS3710A-T42-24V T R V Name Description PS-A Status Normal Operation Green (lit) (power is on) Green (blinking) Soft OFF state Power LED / RAS Status Lamp (POWER) System Monitor Error...
  • Page 3 The maximum communication distance F Arm Insertion Hole Location VESA 75mm G Power Switch Supported by AC type (PS3710A-T42) only. H Expansion Board Support I FD Drive J DVD Drive 2 ports. PCMCIA Type II, Type III can be available.

  • Page 4: General Specifications

    CF card, be sure that power is turned OFF. • When attaching peripheral units to the PS-A, be sure the PS-A's power cord is dis- connected from the main power supply. General Specifications Electrical Specifications PS3710A-T42 PS3710A-T42-24V Input Voltage AC100/240V DC24V...
  • Page 5 40°C Humidity no higher than 64% RH no higher than 44% RH • In order to extend the lifetime of the hard disk, Pro-face recommends you set the Win- ® dows 2000 or XP (classic) [Control panel]-[Power Options]-[Power Options Proper- ties]-[Power Schemes]-[Turn off hard disks] selection to turn the hard disk off when the unit is not being operated.
  • Page 6 Switch Compatible Factory Switch Name Description Location Settings RI/+5V Changeover COM1 Changes # 9 pin (RI <---> +5V). RI/+5V COM2 Changes # 9 pin (RI <---> +5V). Changeover SW Changes the Touch Panel Touch Panel's COM4 communication method. (Serial <---> Communication USB) (If "Serial"...
  • Page 7 This Soft OFF State is different from what is System Standby ® set by Windows ® *3 When built in Pro-face's Windows XP Embedded, the factory setting is ON. *4 The Setting up an enabled/Disabled state for USB port execution control function is available for only ®...

  • Page 8: External Interfaces

    *2 To enable RTS automatic control of the TX output driver, set SW No. 9 and 10 ON, and set SW No.4 OFF. To enable control of the TX output driver via RTS signals, set SW No. 9 and 10 OFF, and set SW No.4 ON *3 If you use the termination resistance, base your settings on the connection specifications.

  • Page 9: Ras Interface

    RS-485 Pin # Signal Name Description Signal Name Description DATA + Send/Receive Data(+) Ground DATA - Send/Receive Data(-) Output Current:100mA or less (with a total of 2 pin and 15 No Connection pin) No Connection Output Voltage: 5V±5% Signal Ground Output Current: 100mA or +12V less...

  • Page 10: Installations

    Installations Unit: mm [in.] Panel r ≤ 3[0.12] thickness Installation Requirements • For easier maintenance, operation, and PS-A improved ventilation, be sure to install the PS-A at least 50mm [1.97 in.] away from adjacent structures and other equipment. Panel Unit:mm[in.] PS-A thickness [1.97]...

  • Page 11: Removal/Attachment The Rear Cover

    torque required for these screws is 0.7 to 0.8 Insertion Slot Recess N•m. Hook the fastener Removal/Attachment the Rear on the Recess, Cover Panel Installation Fastener • Use a screwdriver to loosen or tighten PS-A and secure the fastener the screws. Be sure not to tighten Hook on the panel with a screw.

  • Page 12: Power Cord Specifications

    • Supplying a power voltage other than that specified can damage the PS-A and the power supply. • Accompanying AC type power supply • Since the PS3710A-T42-24V has no plug is CA7-ACCNL-01 from Pro-face or power ON/OFF switch, be sure to FKC2.5/3-STF-5.08 is manufactured by attach a breaker-type switch to its power cord.

  • Page 13: Power Supply Cautions

    Power Supply Cautions or thicker, or your country’s applica- ble standard. • Input and Output signal lines must be sepa- • The SG (signal ground) and FG (frame rated from the power control cables for ground) terminals are connected internally operational circuits.

  • Page 14: Attaching The Power Switch Cover

    USB cable to the upper USB connector. For the detailed certification's information, • When using only one of the USB ports, be refer to the Pro-face Home page. sure to use the lower USB connector. This <Cautions> allows you to securely clamp the USB cable in the cable clamp.
  • Page 15 • The PS-A unit’s rear face is not approved as an <Control Drawing of USB I/F on PS- enclosure. When building the PS-A unit into an A's Front Module> end-use product, be sure to use an enclosure that The information below concerns the use of the USB satisfies standards as the end-use product’s overall I/F located on the PS-A unit's front modules used in enclosure.
  • Page 16 CE marked product that conforms to EMC directives. For the detailed information, please be downloaded and refer the Declaration of Conformity from Pro-face Home Page. Inquiry Do you have any questions about difficulties with this product? Please access our site anytime that you need help with a solution.
