ZEUS V120
Constant voltage power amplifier

USER MANUAL

REV 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZEUS v120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for soundsation ZEUS v120

Summary of Contents for soundsation ZEUS v120

  • Page 1: User Manual

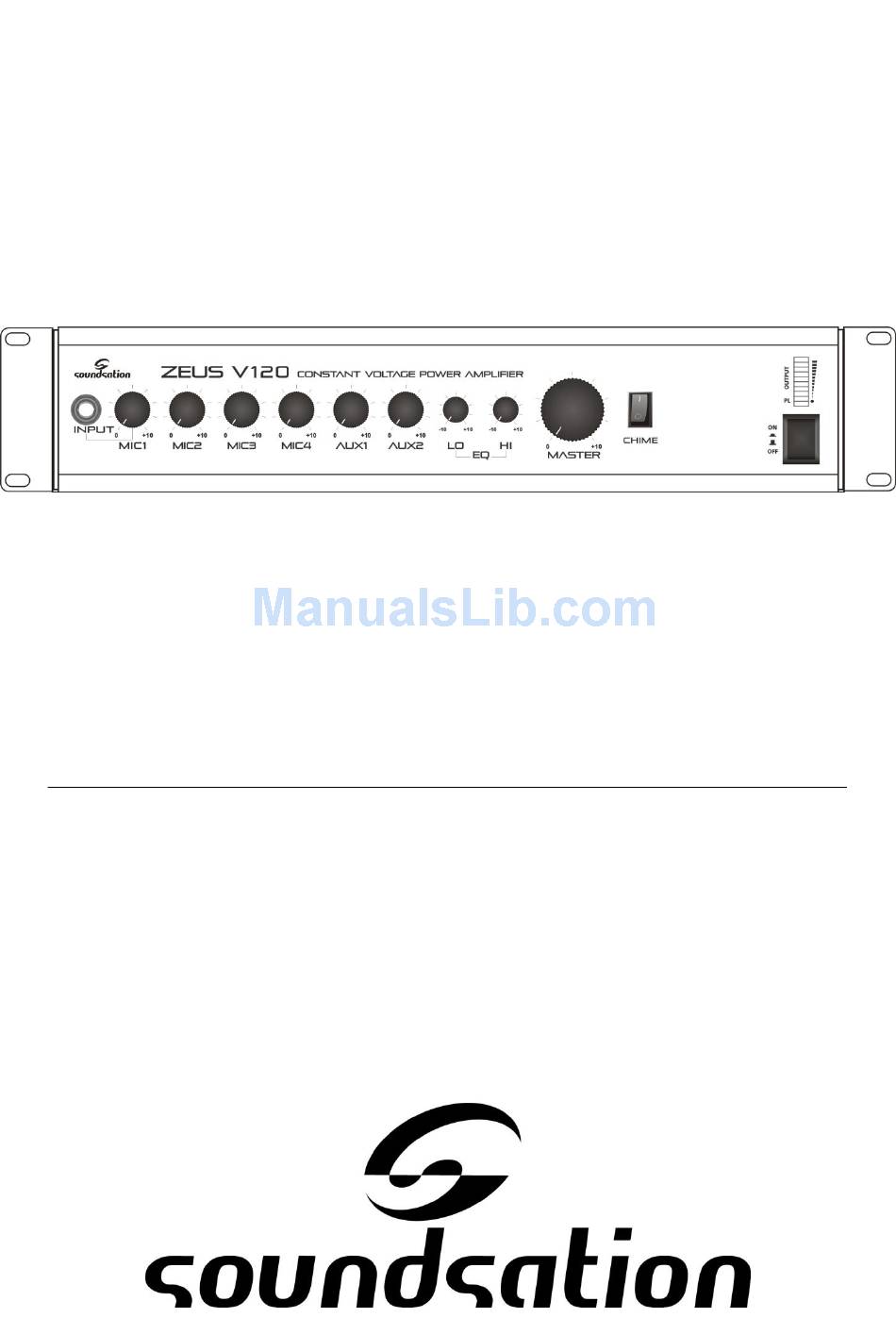

    ZEUS V120 Constant voltage power amplifier USER MANUAL REV 1.0...
  • Page 2 Dear customer, first of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all the possible needs of musical instrument and professional audio users offering a wide range of products using the latest technologies for a reasonable price.

  • Page 3: Safety Instruction

    SAFETY INSTRUCTION No user-serviceable parts inside! TO PREVENT POSSIBLE DAMAGES READ THE FOLLOWING LIST OF ACTIONS: Read these instructions. Do not expose the instrument to electro- magnetic interference. Keep these instructions. Do not expose the instrument to heat, cold, wet Heed all warnings.
  • Page 4 Some products can feature a dual or multiple voltage transformers. your country standards doesn’t match with the one pre- setted on your unit please contact our authorized dealer/technical assistance for conversion. ___________________________________________________________________________________________ need assistance from qualified UK IMPORTANT NOTICE technician in the following cases: WARNING: THIS APPARATUS MUST BE EARTHED - If the power cord is damaged (i.e., cut or a bare IMPORTANT.

  • Page 5: Front Panel

    FRONT PANEL 1. VOLUME CONTROL These knobs control the signal level of input 1-4 and aux input. Turn the knobs clockwise to boost volume, and turn the knobs counterclockwise to attenuate volume 2. LOW CONTROL This knob is used to adjust bass. Turn the knob clockwise to boost and counterclockwise to attenuate bass.

  • Page 6: Back Panel

    BACK PANEL 8. OUTPUT TERMINAL TO SPEAKER These terminals provides 4Ω, 70V and 100V output for various speaker wiring 9. INPUT SENSITIVITY SWITCH It switches the sensitivity of input 1-4. When it is set to MIC, is it suitable for dynamic microphones. When is set to 24V is suitable for 24V condenser mic.
  • Page 7 SPEAKER CONFIGURATION...

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS AC: 110-120V 60Hz/220-240V 50 Hz Power supply 100Hz – 17 KHz Frequency response MIC/LINE (1-4): -50dB +-2dB/-4dB +-1dB (MIC&XLR)/Aux(1-2): -20dB +-2dB Input sensitivity MIC (1-4): > 65dB AUX(1-2): > 70dB S/N ratio <1% (rated power output) Control Bass: 100Hz +- 10dBm, Treble: 10KHz +- 10dB DC/over temperature/overload Protection Mic1 and chime take the priority when chime button is pressed...

  • Page 9: Warranty And Service

    Alternatively you can send the product to SOUNDSATION SERVICE CENTER – Via Enzo Ferrari , 10 – 62017 Porto Recanati – Italy In order to send a product to service center you need an RMA number. Shipping charges have to be covered by the owner of the product.
  • Page 10 FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati –Italy © SOUNDSATION 2013 – All rights reserved – All total or partial reproduction of this manual by any other company or person without express authorization of Soundsation is strictly forbidden.

This manual is also suitable for:

Zeus v240
