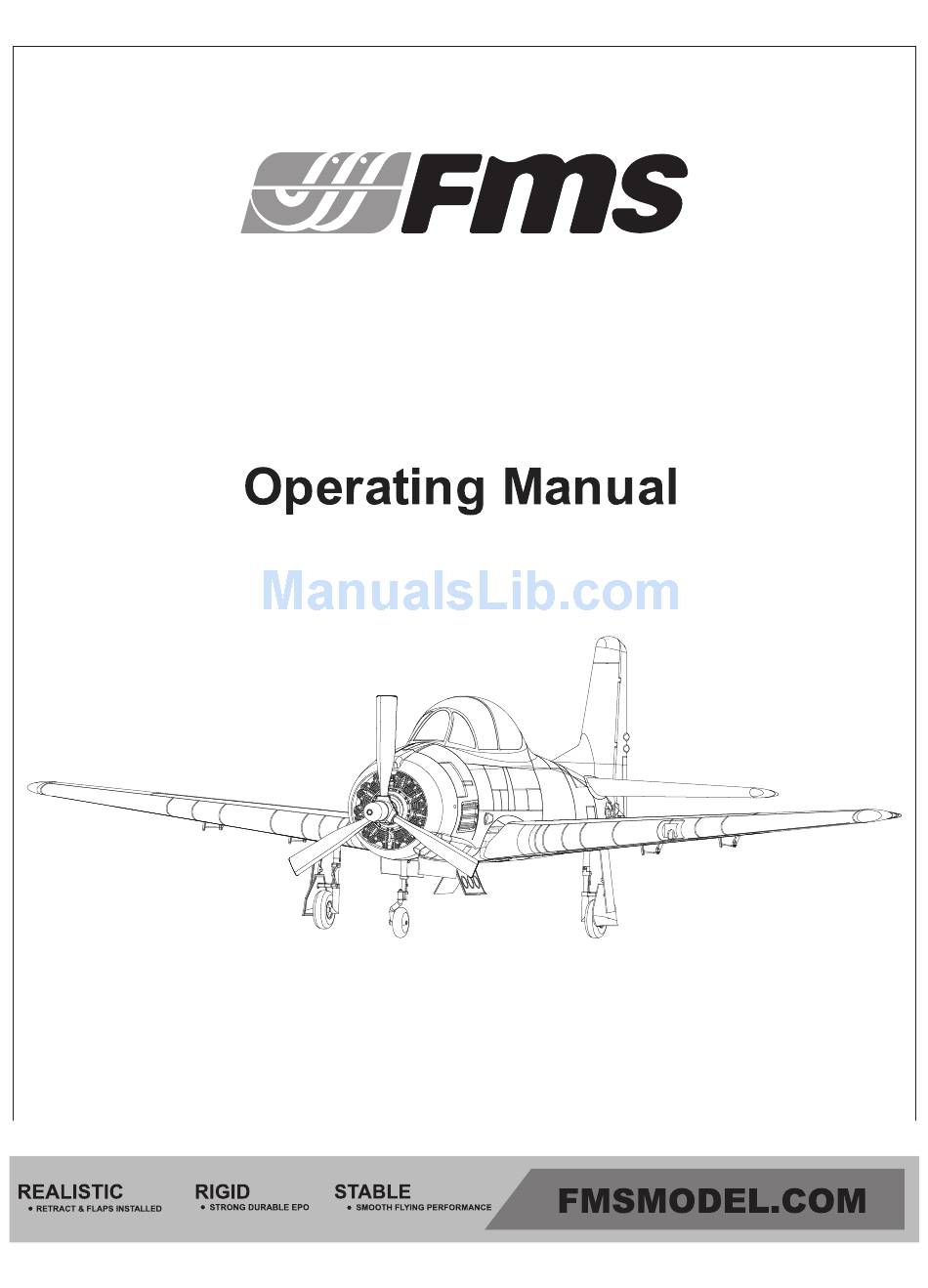

  • Page 1 1400MM T-28 Trojan V4...
  • Page 2 WARNING WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense or you may cause injury or damage to the product or other property.This product is not intended for use by children without direct adult supervision.

  • Page 3: Table Of Contents

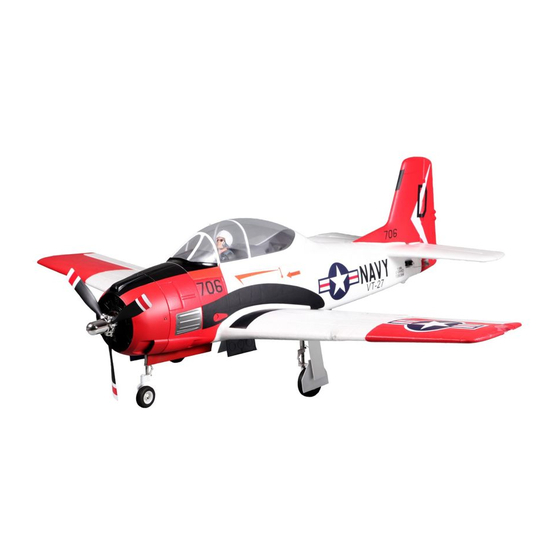

    The 1400mm T28 V4 is coming! No matter whether you had an FMS T28 or not before, the coming V4 is full of surprises. First of all, the foam ratio has been upgraded from EPO 40 to the lighter and larger EPO 52, which alleviates the airplane's weight, without weakening the airplane.

  • Page 4: Contents Of Kit

    Wingspan : 1400mm(55.1in) Length : 1185mm(46.7in) Weight :2450g(86.4oz) Wing Area : 33.4dm (517.7in ) Wing Load : 73.3g/dm (0.17oz/in ) Radio Controls : 6 Channel Contents of Kit Before assembly, please inspect the contents of the kit. The photo below details the contents of the kit and labels.

  • Page 5: Assemble The Plane

    Assemble the plane 1. Slide both wing tubes into the wing holes. Both tube are the same length. Ensure the connector wires pass through the hole to the top side of the wing. Secure the wing together by installing two brackets where the two wing halves join as shown.

  • Page 6: Install The Battery

    4. Turn over the fuselage so the bottom faces up and feed the connector wires through the hole in the fuselage. Secure the wing in place using 4 wing screws. HKM3.0*65mm fig7 Install the battery 1. Lower the throttle and throttle trim to the lowest setting. Power on the Transmitter, then wait 4 seconds. It is recommended to apply hook and loop tape to the bottom of your battery.

  • Page 7: Get Your Model Ready To Fly

    Connectors Diagram Get your model ready to fly Important ESC and model information 1. The ESC included with the model has a safe start. If the motor battery is connected to the ESC and the throttle stick is not in the low throttle or off position, the motor will not start until the throttle stick is moved to the low throttle or off position.

  • Page 8: The Transmitter And Model Setup

    The transmitter and model setup Before getting started, bind your receiver with your transmitter. Please refer to your Transmitter Manual for proper operation CAUTION: To prevent personal injury, DO NOT install the propeller assembly onto the motor shaft while testing the control surfaces. DO NOT arm the ESC and do not turn on the transmitter until the Transmitter Manual instructs you to do so.

  • Page 9: Check The Control Throws

    Check the control throws The suggested control throw setting for FMS MODEL are as follows (dual rate setting): Tips: At first flight, fly the model in low rate. The first time you use high rates, be sure to fly at low to medium speeds.

  • Page 10: Install The Propeller And Spinner

    Install the propeller and spinner Assemble the spinner and propeller as shown below. Check the C.G. (Center of Gravity) When balancing your model, adjust the motor battery as necessary so the model is level or slightly nose down. This is the correct balance point for your model. After the first flights, the CG position can be adjusted for your personal preference.

  • Page 11: Before Flying The Model

    Before flying the model Find a suitable flying site Find a flying site clear of buildings, trees, power lines and other obstructions. Until you know how much area will be required and have mastered flying your plane in confined spaces, choose a site which is at least the size of two to three football fields - a flying field specifically for R/C planes is best.

  • Page 12: Flying Course

    Flying course Take off While applying power, slowly steer to keep the model straight. The model should accelerate quickly. As the model gains flight speed you will want to climb at a steady and even rate. Flying Always choose a wide-open space for flying your plane. It is ideal for you to fly at a sanctioned flying field. If you are not flying at an approved site always avoid flying near houses, trees, wires and buildings.

  • Page 13: Troubleshooting

    Troubleshooting...

  • Page 14: Spare Parts List Of Contents

    "X" motor mount FMSBM010 Motor board FMSDZ020 Motor Shaft FMSKV650N Brushless Motor 4258KV650 FMSESC70A200 FMSSER9MGDP FMS 9g digital metal gear servo positive FMSSER17MGD 17g digital metal gear servo FMSCON001 Multi Connector System Visit our website to see photos of this product: www.fmsmodel.com...

  • Page 15: Esc Instruction
