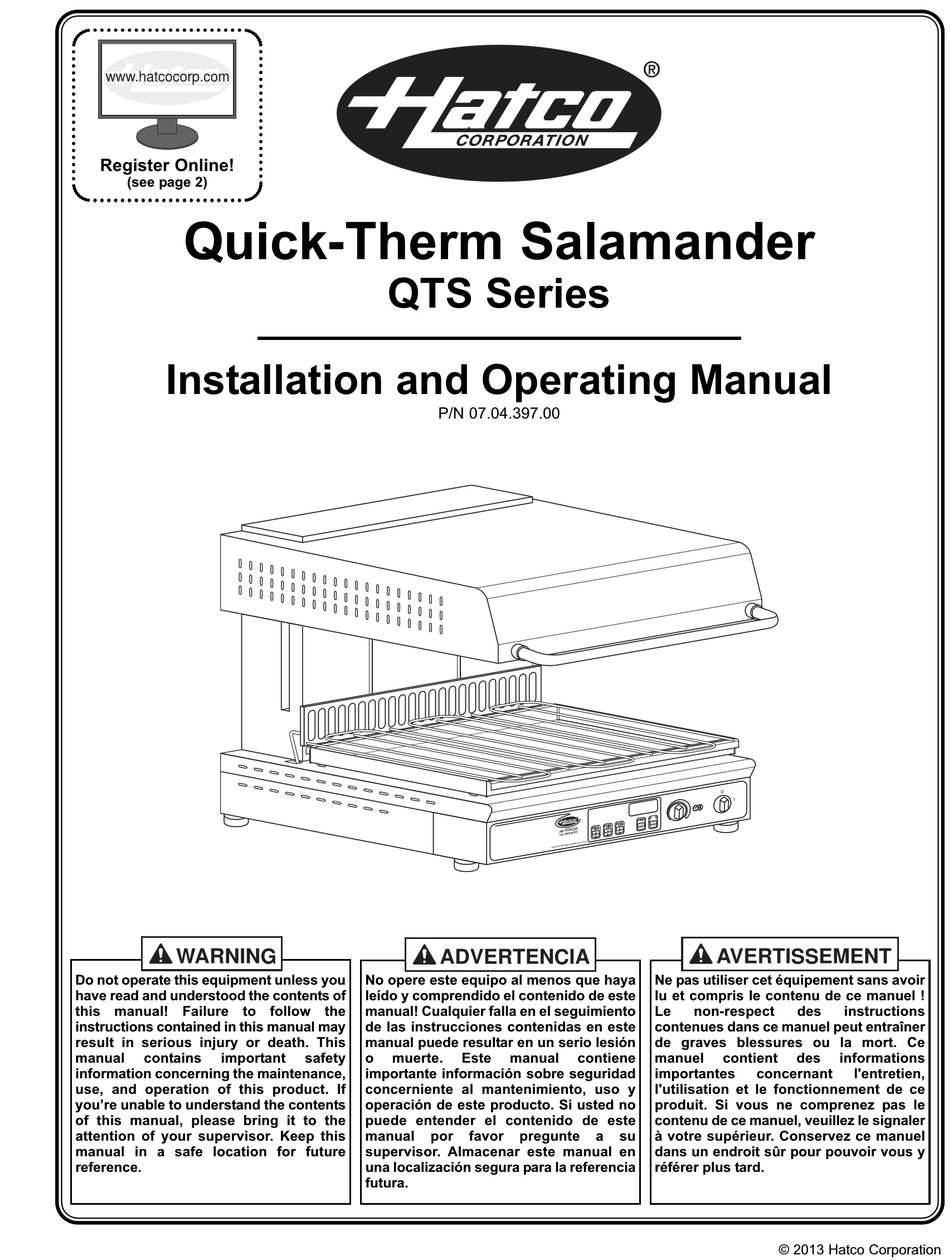

Quick-Therm Salamander
(see page 2)
Installation and Operating Manual
WARNING
Do not operate this equipment unless you
have read and understood the contents of
this manual! Failure to follow the
instructions contained in this manual may
result in serious injury or death. This
manual
contains
important
information concerning the maintenance,
use, and operation of this product. If
you're unable to understand the contents
of this manual, please bring it to the
attention of your supervisor. Keep this
manual in a safe location for future
reference.
QTS Series
P/N 07.04.397.00
ADVERTENCIA
No opere este equipo al menos que haya
leído y comprendido el contenido de este
manual! Cualquier falla en el seguimiento
de las instrucciones contenidas en este
manual puede resultar en un serio lesión
safety
o
muerte.
Este
importante información sobre seguridad
concerniente al mantenimiento, uso y
operación de este producto. Si usted no
puede entender el contenido de este
manual
por
favor
supervisor. Almacenar este manual en
una localización segura para la referencia
futura.
STA RT
COO K
STO P
ON
HOL D
H
HI -T O UC
ON
OFF
ND ER
ON
SA LA MA
OFF
OFF
I U.S .A.
UKE E,W
MIL WA
CO RP.
HAT CO
Ne pas utiliser cet équipement sans avoir
lu et compris le contenu de ce manuel !
Le
contenues dans ce manuel peut entraîner
de graves blessures ou la mort. Ce
manual
contiene
manuel
importantes
l'utilisation et le fonctionnement de ce
produit. Si vous ne comprenez pas le
contenu de ce manuel, veuillez le signaler
pregunte
a
su
à votre supérieur. Conservez ce manuel
dans un endroit sûr pour pouvoir vous y
référer plus tard.
0
1
AVERTISSEMENT
non-respect
des
instructions
contient
des
informations
concernant
l'entretien,
© 2013 Hatco Corporation

Advertisement

Table of Contents
loading

Related Manuals for Hatco quick-therm salamander qts series

Summary of Contents for Hatco quick-therm salamander qts series

  • Page 1 à votre supérieur. Conservez ce manuel manual in a safe location for future supervisor. Almacenar este manual en dans un endroit sûr pour pouvoir vous y reference. una localización segura para la referencia référer plus tard. futura. © 2013 Hatco Corporation...

  • Page 2: Table Of Contents

    Hatco’s Quick-Therm Salamander is specially-designed for cooking, grilling, reheating, and keeping foods hot. The unparalleled start up speed is a direct result of Hatco’s patented “instant on” heating elements located in the upper housing of the salamander. The three independently-controlled heating elements provide for the benefits of flexibility and energy conservation.

  • Page 3: Important Safety Information

    This unit has no “user-serviceable” parts. If service is • Do not steam clean or use excessive water on unit. required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at • This unit is not “jet-proof” construction. Do not use jet- 414-671-6350;...

  • Page 4: Model Description

    MODEL DESCRIPTION Hatco’s Quick-Therm Salamander is specially designed for versatility in the kitchen with the capabilities to cook, grill, reheat, and keep foods hot. The salamander is constructed of Upper Ventilation stainless steel for easy cleaning and durability.

  • Page 5: Specifications

    NOTE: Specification label located on the side of the unit near the power inlet area. See label for serial number and verification of unit electrical information. Dimensions Quick-Therm SALAMANDER COOK START HOLD STOP HATCO CORP. MILWAUKEE,WI U.S.A. Form No. QTSM-0213...

  • Page 6: Installation

    INSTALLATION General 2. Remove tape and protective packaging from all surfaces of the unit. The Quick-Therm Salamander is shipped with most components pre-assembled. Care should be taken when unpacking shipping 3. Clean the unit thoroughly to remove all protective industrial carton to avoid damage to the unit and the components enclosed.

  • Page 7: Installing A Wall-Mounted Unit

    INSTALLATION 3. Check that the unit is level from front to back. Adjust the level by turning the leveling studs on the back of the unit, if 51 mm (2″) necessary. Tighten the leveling stud locking nuts to hold the adjustment.

  • Page 8: Operation

    OPERATION General START/STOP Key The START/STOP key controls the cycle of the COOK and The Quick-Therm Salamander is equipped with two main HOLD functions. Pressing the START/STOP key will either start functions, COOK or HOLD. The COOK function uses the or stop a COOK or HOLD cycle.
  • Page 9 OPERATION HOLD Function 3. Press the COOK/HOLD key to select the COOK function. The COOK indicator light will illuminate. When using the HOLD function the two outer heating elements are operational. The center heating element is off and the outer 4.

  • Page 10: Maintenance

    Hatco equipment. This unit has no “user-serviceable” parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 414-671-6350; fax 414-671-3976.

  • Page 11: Troubleshooting Guide

    Plate detection bar not engaged. Make sure plate/tray is pushed against and activating plate detection bar. Heating element(s) defective. Contact an Authorized Hatco Service Agent or Hatco for assistance. Power On/Off (I/O) switch defective. Contact an Authorized Hatco Service Agent or Hatco for assistance.

  • Page 12: Limited Warranty

    Hatco’s written instructions or Without limiting the generality of the foregoing, SUCH 18 months from the date of shipment from Hatco. Buyer must WARRANTIES DO NOT COVER: Coated incandescent light establish the Product’s purchase date by registering the...

Table of Contents
