2) Air Bag Deployment Signal Output (Crash Out)

When any air bag deploys, crash out is performed. If other deployment is occurred while a
deployment signal is output, another crash out is delayed until the current 200 ms crash out is
completed. (The tolerance at the time of signaling is ±5%)

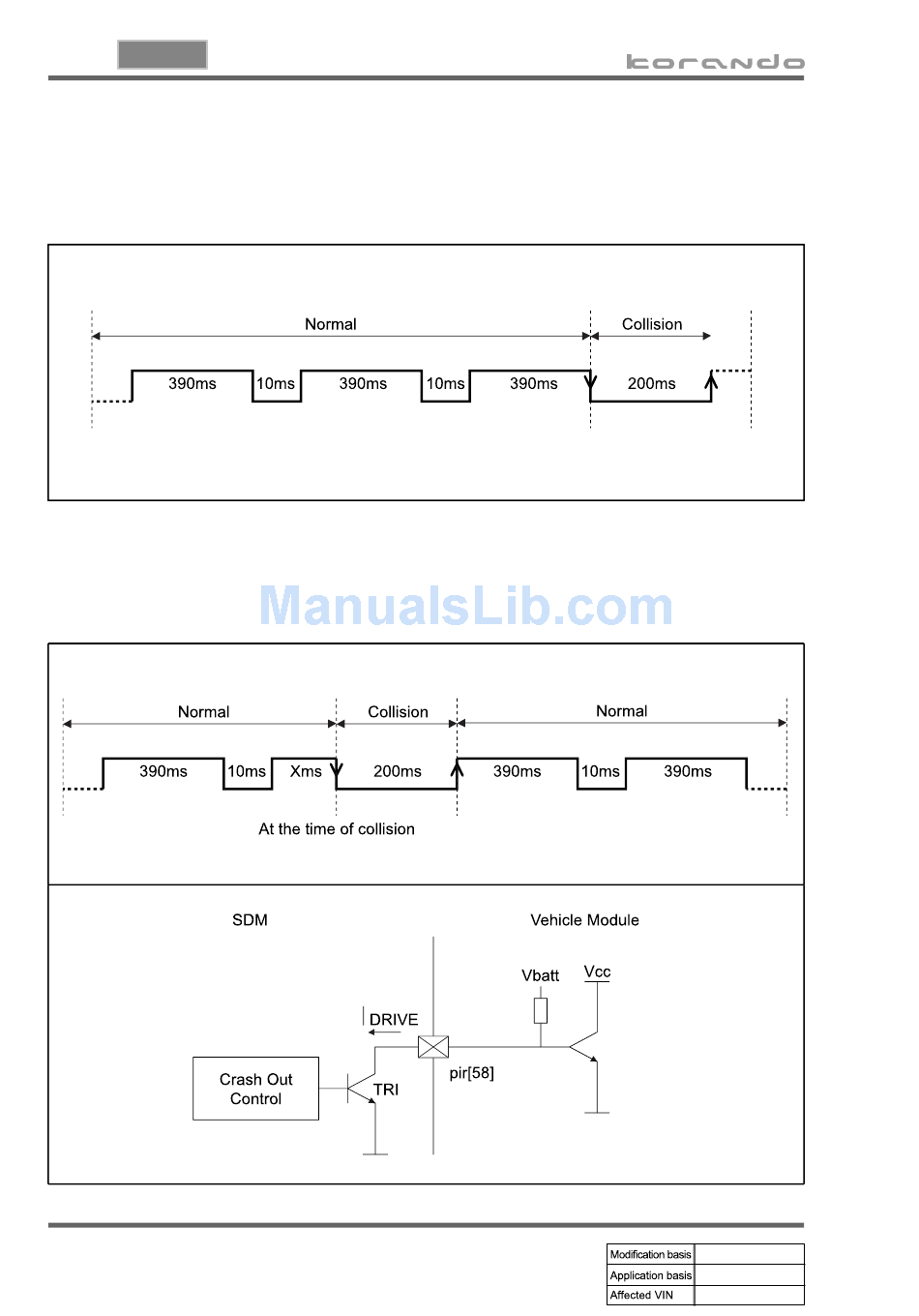

The signal repeats increasing for 390 ms and decreasing for 10 ms before crash. At the time of
crash, the switch is closed and the signal is kept low condition for 200 ms.
At the time of crash, the crash out signal is changed to the low condition for 200 ms
immediately to indicate the crash moment.
