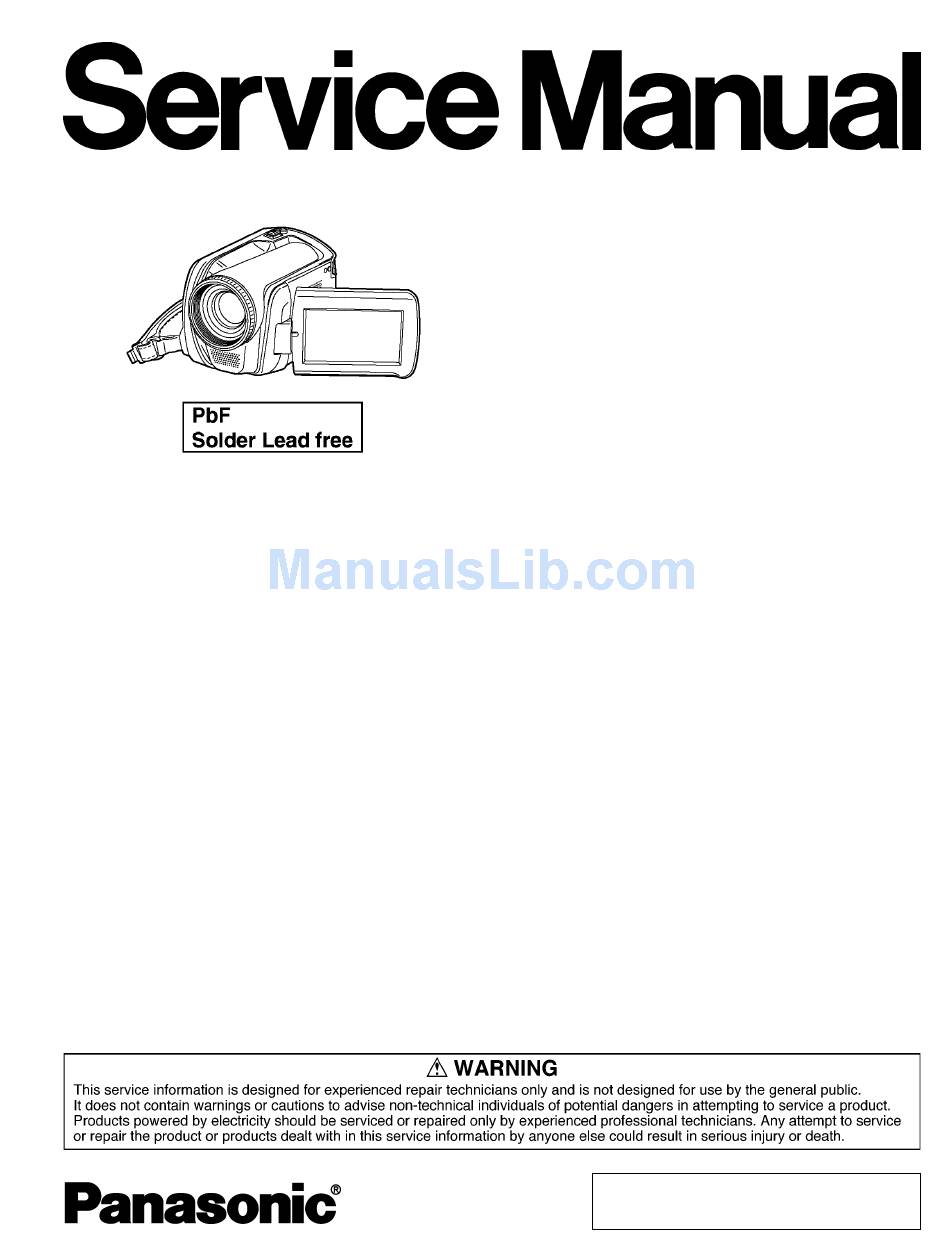

SD Card/Hard Disk Video Camera
SDR-H18P
SDR-H20P
SDR-H18PC
SDR-H20PC
Vol. 1
Colours
(S)...................Silver Type
© 2007 Panasonic Shikoku Electronics Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO. MKE0702300CE
B27
Unauthorized
copying
and

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SDR-H18P

Summary of Contents for Panasonic SDR-H18P

  • Page 1 ORDER NO. MKE0702300CE SD Card/Hard Disk Video Camera SDR-H18P SDR-H20P SDR-H18PC SDR-H20PC Vol. 1 Colours (S)....Silver Type © 2007 Panasonic Shikoku Electronics Co., Ltd. All rights reserved. Unauthorized copying distribution is a violation of law.

  • Page 2: Table Of Contents

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC CONTENTS Page Page 1 Safety Precautions 9.1. Cleaning Lens and LCD Panel 1.1. General Guidelines 10 Troubleshooting 2 Warning 11 Voltage Chart of Connectors on Main P.C.B. 2.1. Prevention of Electro Static Discharge (ESD) to...

  • Page 3: Safety Precautions

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 1 Safety Precautions 1.1. General Guidelines 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List.

  • Page 4: Warning

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 2 Warning 2.1. Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...

  • Page 5: How To Replace The Lithium Battery

    2. Unsolder the Lithium Battery “ML-621S/F9D” and then replace the new one. NOTE: This Lithium battery is a critical component. (Type No.: ML-621S/F9D Manufactured by Panasonic.) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in equipment designed specifically for its use.

  • Page 6: Service Navigation

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 3 Service Navigation 3.1. Introduction This service manual contains technical information which will allow service personnel´s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers.

  • Page 7: Precautions For Handling Hdd

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 3.3. Precautions for Handling HDD 1. Handle HDD very carefully to prevent the static electricity and shock. 2. Set the HDD quickly after taking it out from the package. Make sure to put the HDD on buffer materials, etc.
  • Page 8 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 3.3.2. Precautions for installing HDD...
  • Page 9 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 3.3.3. Precautions for inserting and removing HDD FPC Make sure to use the tool (LSVQ0112) when locking and unlocking the lock lever of HDD FPC connector. Do not lock the lock lever without inserting HDD FPC. Otherwise, the connector may be damaged.
  • Page 10 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Make sure to use the tool (LSVQ0112) when opening and closing the lock lever. *See "Disassembly Procedures" (Fig. D4) for attaching to the unit.

  • Page 11: Formatting Hdd

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 3.4. Formatting HDD When HDD is exchanged, format HDD as the procedure below. Without formatting, the error message appears on the LCD display when accessing HDD. <Formatting procedure> Rotate the mode dial to select Select [HDD] in [MEDIA SELECT].

  • Page 12: Specifications

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 4 Specifications...

  • Page 13: Service Mode

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 5 Service Mode 5.1. Error Display "PUSH THE RESET SWITCH" is displayed automatically on the LCD Monitor when an undesirable condition has occurred. Fig. 1 Note: When "PUSH THE RESET SWITCH" is displayed repeatedly, service is required. Check the Error Code which is listed in the Service Menu.
  • Page 14 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Note: Only perform items 1, 2, 3, 4, 9, 10 and 14 in the Service Menu. To select the Item of Service Menu 1. Press [JOYSTICK CONTROL UP/DOWN] to select item [1], [2], [3], [4], [9], [10] or [14].
  • Page 15 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Fig. 2-3...
  • Page 16 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Fig. 2-4...
  • Page 17 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Fig. 2-5...

  • Page 18: About Default Setting

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Fig. 2-6 To exit the Service Menu Unplug the AC Cord. 5.3. About Default Setting The data of Menu, Mode, Card and EEPROM setting, etc. is set to the default condition in factory.

  • Page 19: Service Fixture & Tools

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 6 Service Fixture & Tools 6.1. Service Fixture and Tools...

  • Page 20: Service Position

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 6.2. Service Position 6.2.1. Extension Cables for Service Position Using the following Extension Cables, place the unit as shown for check and service. PART NUMBER PART NAME CONNECTION LSUA0017 18Pin Extension Cable FP41 on Main P.C.B. - FP6501 on Front P.C.B.
  • Page 21 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...
  • Page 22 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...

  • Page 23: Removal/Installation Of F.p.c. From Non Zif

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 6.3. Removal/Installation of F.P.C. 3. Connect the F.P.C.s to the Non ZIF connectors, verifying the direction of F.P.C as shown. From Non ZIF (Zero Insertion Force) Connector Removal/Installation of F.P.C. from the Non ZIF (Zero Insertion Force) connector: 1.

  • Page 24: Eeprom Data

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 6.4. EEPROM Data CAUTION: Be sure to save the EEPROM data using PC-EVR Adjustment Program before service and adjustment in order to make sure to avoid an accidental data loss, etc. using PC-EVR Adjustment Program by first.

  • Page 25: Special Note

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 6.5. Special Note All integrated circuits and many other semiconductor devices are electrostatically sensitive and therefore require the special handlings techniques described under "ELECTROSTATICALLY SENSITIVE (ES) DEVICES" section of this service manual. 6.6.

  • Page 26: Disassembly And Assembly Instructions

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 7 Disassembly and Assembly Instructions 7.1. Disassembly Flow Chart This flow chart indicates the disassembly steps the cabinet parts and P.C.B.. Unit in order to access to be serviced. When reinstalling, perform the steps in the reverse order.

  • Page 27: Disassembly Procedures

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 7.3. Disassembly Procedures Flow-Chart for Disassembly Procedure Item / Part Fig. Removal (Screw,Connector,FPC. & Other) Rear Case Unit Fig. D2 Open the LCD Unit and Jack Cover. 7-Screws (A) 1-Connector FP11 Rear Case Unit Operation Unit Fig.
  • Page 28 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Fig. D1 Fig. D3 Fig. D2 Fig. D4...
  • Page 29 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Note for replacing HDD 2) How to Attach · Be sure to use the tool when inserting and removing Attach the HDD FPC to the new HDD using the tool. HDD FPC. Attach the HDD cushion to the HDD.
  • Page 30 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Fig. D5 Fig. D7 Fig. D6 Fig. D8...
  • Page 31 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Fig. D9 Fig. D11 Fig. D10 Fig. D12...
  • Page 32 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Fig. D13...

  • Page 33: Measurements And Adjustments

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 8 Measurements and Adjustments 8.1. Electrical Adjustment 8.1.1. Initial Guideline The table below shows which adjustments are necessary according to the unit parts and individual parts to be replaced. Make sure to perform these adjustments shown below as necessary.
  • Page 34 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 8.1.2. Installation of USB-SERIAL driver 5. When the communication is complete, the dialog will appear. Execute the "Setup.exe" file in "ComMass" folder by double Click "Yes" and "Save" to save the EEPROM data.
  • Page 35 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 8. To release the PC connection (COM) mode, push the 4. Confirm the OneNAND-Flash ROM Error information. [DELETE], [DVD COPY] and [JOYSTICK CONTROL UP] simultaneously for 3 seconds with the USB Cable disconnected.

  • Page 36: Maintenance

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 9 Maintenance 9.1. Cleaning Lens and LCD Panel Do not touch the surface of the lens and LCD Panel with your hand. When cleaning the lens, use air-blower to blow off the dust.

  • Page 37: Troubleshooting

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 10 Troubleshooting...
  • Page 38 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...
  • Page 39 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...
  • Page 40 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...
  • Page 41 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...
  • Page 42 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...
  • Page 43 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...
  • Page 44 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...
  • Page 45 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...
  • Page 46 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...
  • Page 47 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...

  • Page 48: Voltage Chart Of Connectors On Main P.c.b

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 11 Voltage Chart of Connectors on Main P.C.B. MAIN P.C.B. MODE MODE MODE MODE MODE MODE PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. FP62 FP31 FP31 FP31 -0.2 -0.2...

  • Page 49: Block Diagrams

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 12 Block Diagrams OVERALL BLOCK DIAGRAM REAR UNIT MAIN P.C.B. IC1001, ETC IC6004 IC6001 BATTERY SIDE L/OPERATION UNIT FP11 TERMINAL EEPROM SERIAL DATA/CLOCK +3.3V EEPROM FP61 UNREG AUTO FOCUS SW POWER CROSS KEY...
  • Page 50 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...

  • Page 51: Schematic Diagrams

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 13 Schematic Diagrams 13.1. SCHEMATIC DIAGRAM & CIRCUIT BOARD LAYOUT NOTES 1. Important safety notice 3. Parts marked "PT" are not used in any models included in this service model. Components identified by the sign have special characteristics important for safety.

  • Page 52: Front Schematic Diagram

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 13.2. FRONT SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: FRONT SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 53: Lcd Backlight Schematic Diagram

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 13.3. LCD BACKLIGHT SCHEMATIC DIAGRAM NOTE: NOTE: For placing a purchase order of the parts, NOTE: NOTE: LCD BACKLIGHT SCHEMATIC DIAGRAM ALL INDIVIDUAL PARTS EXCEPT D8101, D8103, D8105, AND D8107 be sure to use the part number listed in the parts list.

  • Page 54: Hdd Relay Schematic Diagram

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 13.4. HDD RELAY SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: HDD RELAY SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 55: Side R / Lcd Open Switch Schematic Diagram

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 13.5. SIDE R / LCD OPEN SWITCH SCHEMATIC DIAGRAM SIDE R/LCD OPEN SWITCH SCHEMATIC DIAGRAM IMPORTANT SAFETY NOTICE: NOTE: For placing a purchase order of the parts, NOTE: NOTE: COMPONENTS IDENTIFIED BY THE SIGN HAVE be sure to use the part number listed in the parts list.

  • Page 56: Schematic Diagrams

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 13.6. CCD / REAR CASE / SHAFT FPC / HDD RELAY FPC SCHEMATIC DIAGRAMS NOTE: NOTE: NOTE: For placing a purchase order of the parts, PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 57: Side L / Operation / Top Operation Schematic

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 13.7. SIDE L / OPERATION / TOP OPERATION SCHEMATIC DIAGRAMS NOTE: For placing a purchase order of the parts, NOTE: NOTE: PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 58: Interconnection Schematic Diagram

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 13.8. INTERCONNECTION SCHEMATIC DIAGRAM NOTE: NOTE: INTERCONNECTION SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 59: Printed Circuit Board

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 14 Printed Circuit Board 14.1. FRONT P.C.B. FRONT P.C.B. LSEP8391A1 NOTE: NOTE: CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, FOR PROPER PARTS CONTENT FOR THE MODEL YOU ARE SERVICING, REFER TO BEGINNING OF SCHEMATIC SECTION.

  • Page 60: Hdd Relay P.c.b

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 14.2. HDD RELAY P.C.B. HDD RELAY P.C.B. LSEP8398A1 NOTE: NOTE: CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, FOR PROPER PARTS CONTENT FOR THE MODEL YOU ARE SERVICING, REFER TO BEGINNING OF SCHEMATIC SECTION.

  • Page 61: Lcd Backlight P.c.b

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 14.3. LCD BACKLIGHT P.C.B. LCD BACKLIGHT P.C.B. LSEP8367C1 NOTE: NOTE: NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, ALL INDIVIDUAL PARTS EXCEPT D8102, D8104, D8107, D8109 AND D8111 CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS.

  • Page 62: Side R P.c.b

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 14.4. SIDE R P.C.B. SIDE R P.C.B. LSEP8392A1 NOTE: NOTE: IMPORTANT SAFETY NOTICE: COMPONENTS IDENTIFIED BY THE SIGN HAVE CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.

  • Page 63: Open Switch

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 14.5. OPEN SWITCH P.C.B. OPEN SWITCH P.C.B. LSEP8405A1 NOTE: NOTE: CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, FOR PROPER PARTS CONTENT FOR THE MODEL YOU ARE SERVICING, REFER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 64 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC...

  • Page 65: Exploded View

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 15 Exploded View 15.1. MAIN PARTS SECTION...

  • Page 66: Front Hood And Front P.c.b. Section

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 15.2. FRONT HOOD AND FRONT P.C.B. SECTION...

  • Page 67: Side R Operation And Lcd Section

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 15.3. SIDE R OPERATION AND LCD SECTION...

  • Page 68: Ccd And Lens Section

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 15.4. CCD AND LENS SECTION...

  • Page 69: Packing Parts And Accessories Section

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 15.5. PACKING PARTS AND ACCESSORIES SECTION...

  • Page 70: Replacement Parts Lists

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 16 Replacement Parts Lists BEFORE REPLACING PARTS, READ THE FOLLOWING: RTL: Retention Time Limited This indicates that the retention time is limited for this item. 16.1. REPLACEMENT NOTES After the discontinuation of this item in production, it will no longer be available.

  • Page 71: Mechanical Replacement Parts List

    SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 16.2. MECHANICAL REPLACEMENT Ref. Part No. Part Name & Description Remarks PARTS LIST K2GJ2DC00011 DC CABLE W/PLUG K2CA2CA00029 AC POWER CABLE W/PLUG or 109 K2CA2CA00025 AC POWER CABLE W/PLUG DE-974FB AC ADAPTOR UNIT...
  • Page 72 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks LSEP8398A1 HDD RELAY P.C.B. R6503 ERJ2GEJ104X MGF CHIP 1/16W 100K LSEP8367C1 LIQUID CRYSTAL DISPLAY R6504 ERJ2GEJ106X MGF CHIP 1/16W 10M BACKLIGHT P.C.B.
  • Page 73 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC RESISTORS Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks B1GBCFNN0030 TRANSISTOR SI NPN CHIP Q8114 R2502 ERJ2GEJ104X MGF CHIP 1/16W 100K Q8115 UNR9213J08 TRANSISTOR SI NPN CHIP...
  • Page 74 SDR-H18P / SDR-H20P / SDR-H18PC / SDR-H20PC 16.3.6. OPEN SWITCH P.C.B. 16.3.5. SIDE R P.C.B. SWITCH TRANSISTORS Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks SW8301 K0L1AA000010 SWITCH SEESAW Q6301 2SB09700RL TRANSISTOR SI PNP CHIP DIODES Ref.
