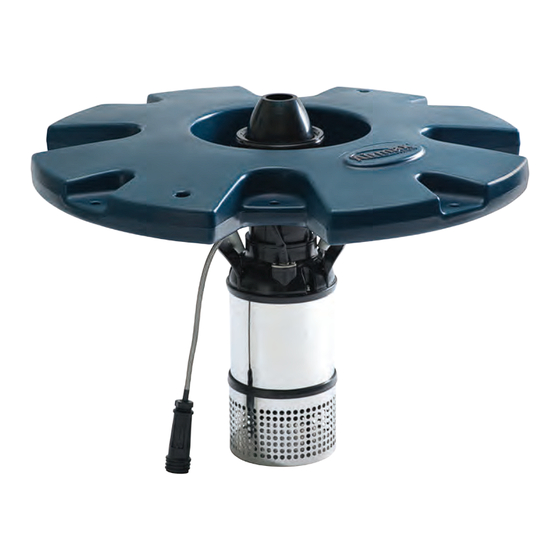

1/2 hp floating fountain
Hide thumbs Also See for ecoseries ES05:
1
2
3
4

Advertisement

Table of Contents

Safe, Simple Solutions
THANK YOU FOR CHOOSING THE
Airmax
EcoSeries
®
• Easy to Install, No Tools Required for Assembly, Including Nozzle Installation
• Asynchronous Motor, Silicon Carbide (SiC) Shaft Bearing and Ceramic Shaft
• Energy Efficient, Fully Sealed Motor. 5.6A, 670W @ 120V
• Stainless Steel Suction Screen & Body
• Engineering Grade Discharge & Nozzle Parts
• Operates in as Little as 24" of Water Depth
• Includes 3 Spray Patterns, Classic, Trumpet and Crown & Trumpet,
Premium Nozzles Available
• Comes standard with 100' Power Cord. Available in 150', 200' and 250'
Power Cord Lengths
• Included Control Panel for Fountain & Optional Light Kits
• 3 Year Warranty
2. Important Safety Instructions
• Under NO circumstances should anyone enter the water with the electrical equipment plugged in
and/or in operation
• Risk of electric shock - This fountain is supplied with a grounding conductor and grounding-type
attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a
properly grounded, grounding-type receptacle. This fountain has not been investigated for use in
swimming pool areas.
• ALWAYS use a GFCI protected receptacle or breaker for this fountain
• NEVER run the unit out of the water. It will damage the seals and create a dangerous situation for
the operator.
• NEVER lift or drag the fountain by the power cord. Handles are provided for lifting and carrying.
• Use only when water temperature is above 32° Fahrenheit. During freezing temperatures, remove
fountain and store in an area above 32° Fahrenheit
• If installing the fountain from a boat or raft ALWAYS wear a Life Guard approved personal
flotation device.
• ALWAYS use a qualified electrician to install a power source next to your pond.
024-14

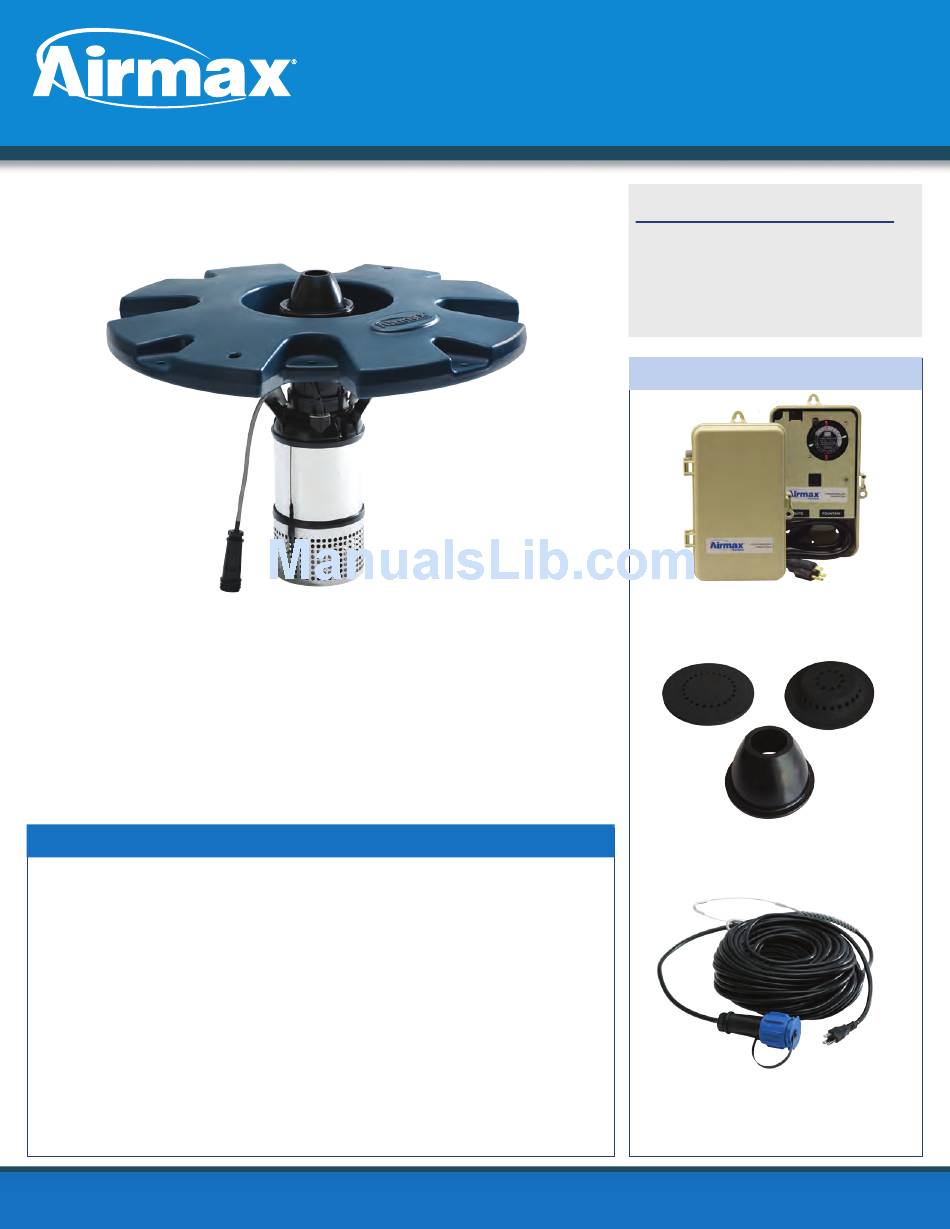

EcoSeries™ ½ HP Floating Fountain
™
Floating Fountain
™
Airmax® Inc. | P.O. Box 38, Romeo, MI 48065 | Phone: 866-424-7629 | www.airmaxeco.com
Model #ES05 • 5.6A, 120V/60Hz
Owner's Manual
CONTENTS

Safety

Setup & Installation
Maintenance & Winter Storage
1. System Components
Control Panel
Nozzles
Classic, Crown & Trumpet, Trumpet
Power Cord
w/strain relief cable attachment
100', 150', 200' & 250'
SECTION
1
1
2
3
3
4
