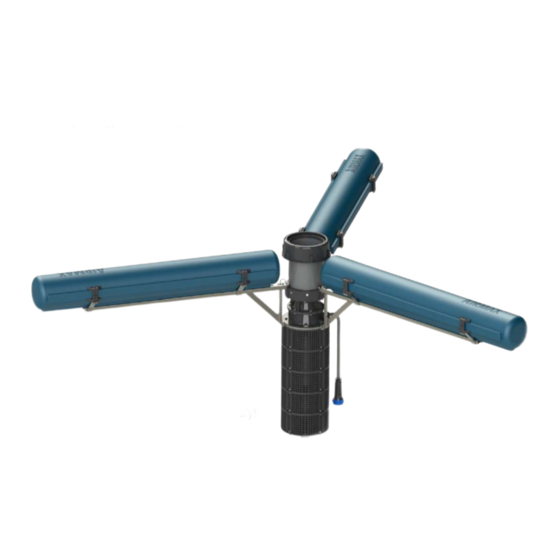

- Page 1 Trumpet Double Arch Blossom LakeSeries ® Floating Fountain Owner’s Manual 2 HP Fountain 230v/60Hz #652136 3 HP Fountain 230v/60Hz #652138 5 HP Fountain 230v/60Hz #653350...
-
Page 2: Table Of Contents
LakeSeries Spray Patterns airmaxeco.com/lakeseriesfountains TABLE OF CONTENTS SECTION PAGE System Components Safety System Installation Maintenance & Winter Storage Troubleshooting - Fountain Replacement Parts 6-10 Warranty Gusher Airmax Inc. | 15425 Chets Way, Armada, MI 48005 | Phone: 866-424-7629 | www.airmaxeco.com... -
Page 3: System Components
• During freezing temperatures, remove fountain and store inside. Spray Patterns • If installing the fountain from a boat or raft ALWAYS wear a Coast Guard approved personal Sold Separately flotation device. Airmax Inc. | 15425 Chets Way, Armada, MI 48005 | Phone: 866-424-7629 | www.airmaxeco.com... -
Page 4: System Installation
4) Install Your RGBW LED Light Set (sold separately) a) First, attach a light set mounting bracket on the side rail of one float with the AIRMAX logo Locking Pin facing you, making sure that the mounting bracket is positioned between the two float support clamps. -
Page 5: Maintenance & Winter Storage
Attach the near mooring cable to an approved mooring stake at the pond’s edge. Ensure the stake is driven securely into the ground. (Airmax Mooring Kits sold separately) h) Boat or walk the second mooring cable around to the opposite side of the pond and secure the fountain in place using a second mooring stake. - Page 6 7. Replacement Parts ENGLISH 2 HP Replacement Parts 652134 - 2 HP Power Unit 230v 1. #652130 – LakeSeries Discharge Horn Assembly , 2-3 HP 2. #653103 – Upper Shroud with Bearing Assembly 3. #651620 – Lower Shroud, 4” 4. #653106 – Impeller and Clip Assembly, 2 HP 5.
- Page 7 7. Replacement Parts ENGLISH 3 HP Replacement Parts 652132 - 3 HP Power Unit, 230v 1. #652130 – LakeSeries Discharge Horn Assembly, 2-3 HP 2. #653103 – Upper Shroud with Bearing Assembly 3. #651620 – Lower Shroud, 4” 4. #653994 – Impeller Hardware, 3-5 HP 5.
- Page 8 1. #652162 - Cooling Shroud Screw Assembly 653351 - LakeSeries Motor Assembly, 5 HP 1. #652157 - 1-5 HP Sand Slinger Washer Assembly 2. #651879 - Airmax 3-Wire Motor Lead Drive Components 653213 - Shaft Coupler ASM, 2-5 HP 651474 - Spiral Retaining Ring, 2 HP...
-
Page 9: Replacement Parts
#653355 – Bottom Brace with Hardware, 2 HP #653990 – Bottom Brace with Hardware, 3 HP #653354 – Bottom Brace with Hardware, 5 HP #652219 – Airmax Tie-Down Ring #653111 – Intake Bottom Plate with Hardware #652166 – Intake Bottom Plate 3/4” Bolt ASM... - Page 10 LakeSeries ISP Float #653367 – Airmax LakeSeries Float Assembly Kit 1. #651557 – Airmax LakeSeries Float 60” 2. #652200 – Airmax LakeSeries Float Clamp Assembly (4 pk) 3. #652384 – Airmax LakeSeries Float Support Assembly LakeSeries Float Mount Bracket #653366 – Airmax LakeSeries Float Mount Bracket with Hardware...
-
Page 11: Warranty
Modification or repair by an unauthorized repair facility will void the warranty. In no case will Airmax, Inc. or its dealers accept responsibility for any costs incurred by the user during installation, removal, inspection, evaluation, repair, parts replacement, or for return freight. Nor will any liability be accepted for loss of use, loss of profits, loss of goodwill, for consequential damage, or for personal injuries to the purchaser or any person. - Page 12 Single Arch Pattern Double Arch and Geyser Pattern Double Arch Pattern Blossom Pattern For Information on Spray Patterns, Visit Us Online at airmaxeco.com Airmax, Inc. 15425 Chets Way Street Armada, MI 48005 (866) 4-AIRMAX airmaxeco.com #652528 V1...
