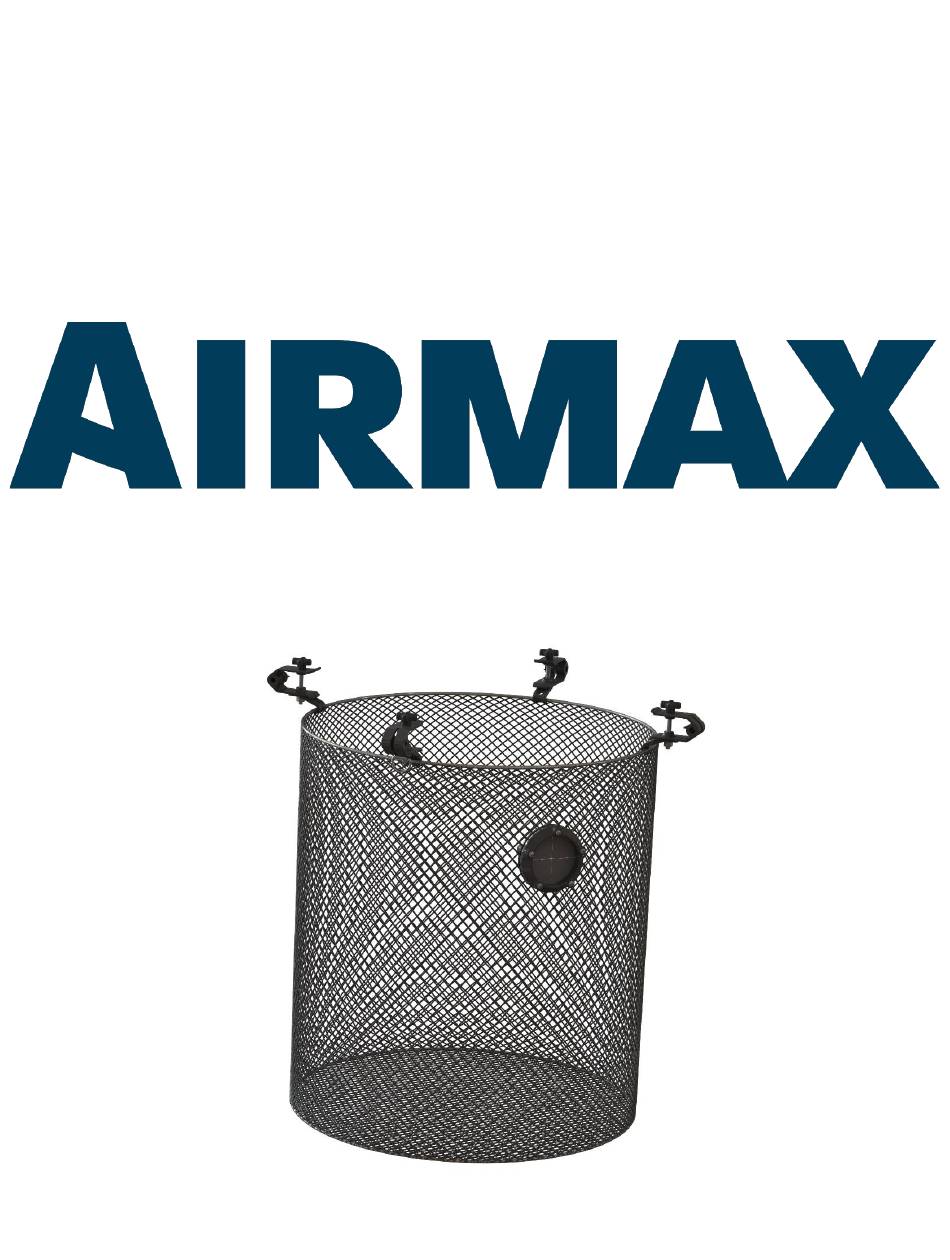

- Page 1 EcoSeries™ XL Debris Screen Installation Guide...
- Page 2 EcoSeries XL Debris Screen Installation Guide I. ECOSERIES™ XL DEBRIS SCREEN REPLACEMENT PARTS Page 2 of 4 version 1.2 May 2025...
- Page 3 EcoSeries XL Debris Screen Installation Guide II. ECOSERIES™ XL DEBRIS SCREEN INSTALLATION The EcoSeries XL Debris Screen is compatible with the 34” Airmax float; however, due to the depth of the screen, it is NOT compatible with the 1/2 HP PondSeries fountain.
- Page 4 EcoSeries XL Debris Screen Installation Guide 3. Install a tie-down ring, split-lock washer and nut on one of the hoop clamps nearest the bulkhead. This will provide an ideal strain relief location for motor and light set power cords. Repeat the process on the other three mounting clamps by installing a flat washer, split-lock washer and nut on each.
