Summary of Contents for ALLEN & HEATH ME1
-

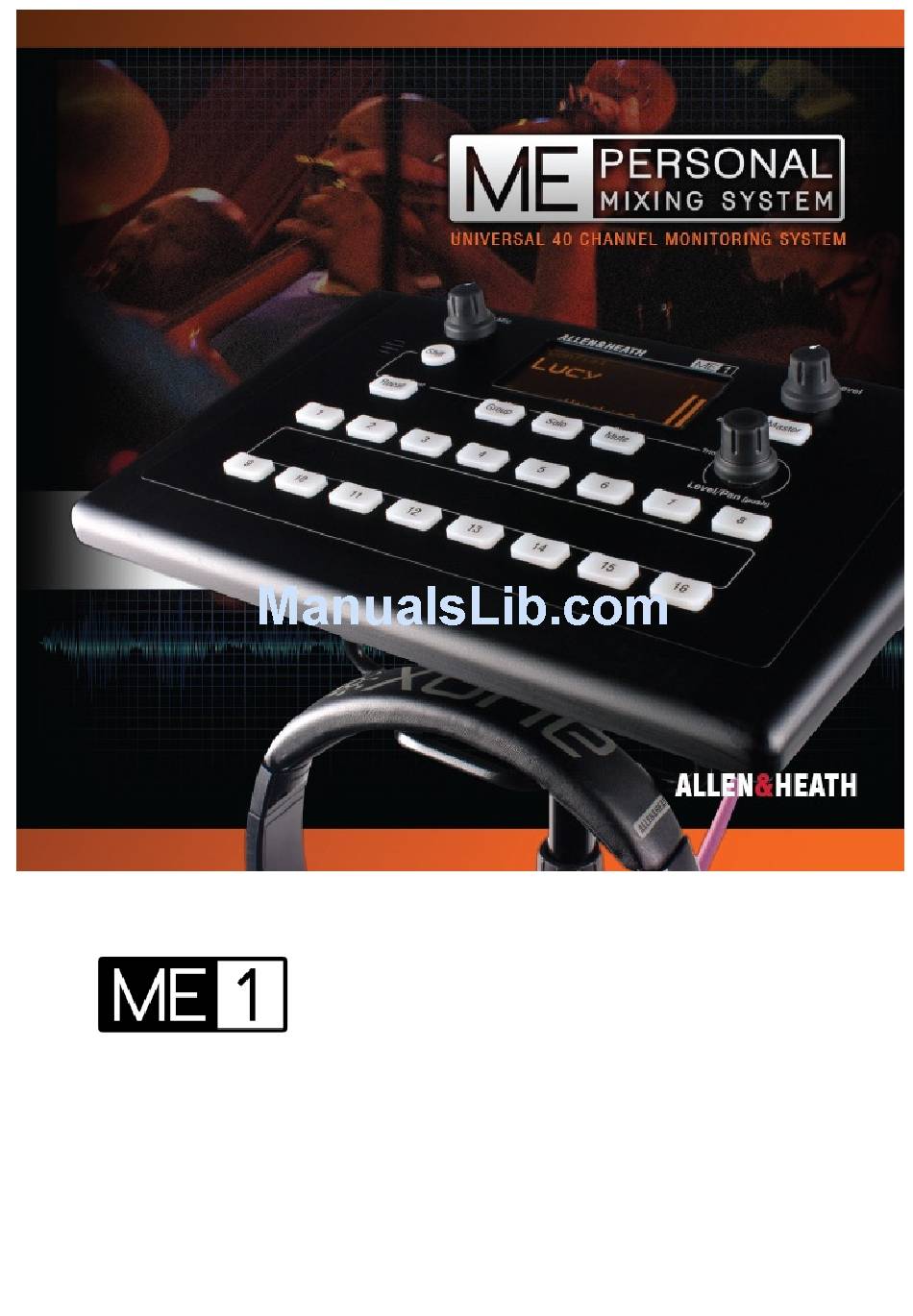

Page 1: User Guide
Personal Mixer User Guide Publication AP8997 User Guide – AP8997 iss.3 ALLEN&HEATH... -

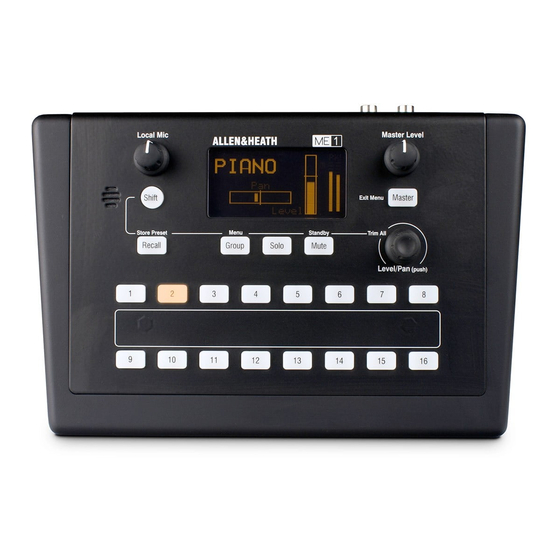

Page 2: Front Panel
Front Panel Master Level – Adjust the Local Mic – Built-in Screen – Illuminated screen overall mix level. Does not microphone to add stage for big display of selection affect local mic level. sound and hear fellow name, level and pan and musicians who come up and stereo signal meter. -
Page 3: Rear Panel
Rear Panel Aux In – 3.5mm mini-jack to Phones – 3.5mm mini-jack Mono Out – Balanced TRS plug in a local stereo line and ¼” TRS stereo jack to jack to connect to mono line source such as an MP3 connect to one or two level equipment such as a player or click track. -
Page 4: Turning The Mixer On Or Off
Operating ME-1 Screen Local Mic Master Level ALLEN&HEATH Local Mic level Master Level Shift Key Master key Shift Master Exit Menu Recall key Rotary Store Preset Menu Standby Trim All Recall Group Solo Mute Level / Pan Select keys 1-16 (push) Room Talkback... -
Page 5: Screen Saver
7.5 Screensaver 7.8 Adjusting Master Level Displays a moving Config Name if the keys or Turn the Master Level control to adjust output rotary are left untouched for more than 10 volume. This is a global control that is not minutes. -
Page 6: Selecting Sources
If a channel is assigned to a Select key and is 7.10 Selecting sources also a member of a Group then a pointer on Press a Select key. Depending on how it is its level bar shows the current group master assigned the following screens may appear: level setting: Group master level... - Page 7 7.13 Muting a source or master 7.15 Adjusting Group master level Press a Select key or the Master key. Adjust the overall group level. Press the Mute key to turn the selected audio Select a source. If it is assigned as a group on or off.
- Page 8 7.17 Adjusting the Master EQ 7.19 Presets Press the Master key. The mix master 3-band ME-1 provides up to 16 presets. EQ curve and Limiter settings are displayed: Each Select key can be assigned a preset mode by the system engineer to allow store and recall or recall only.
- Page 9 7.21 Recalling a Preset from USB 7.23 Storing a Preset to USB Hold the Recall key. Hold Shift and press the Recall key to enter Store mode. If a USB key is plugged in then a list of presets found on the key will be displayed: If a USB key is plugged in then the ‘To USB’...
-
Page 10: Clear Preset
To clear the preset name – Scroll to the X. Press the Rotary to clear all characters. Store: Preset4 Clear Preset To Clear the preset contents and name – Scroll to Clear Preset and press the encoder. Store: Preset4 Clear Preset Clearing a preset clears it contents and resets its name to blank (no name).
