Device Illustrations and Descriptions

Device Illustrations and Descriptions
•
•
•
•
•

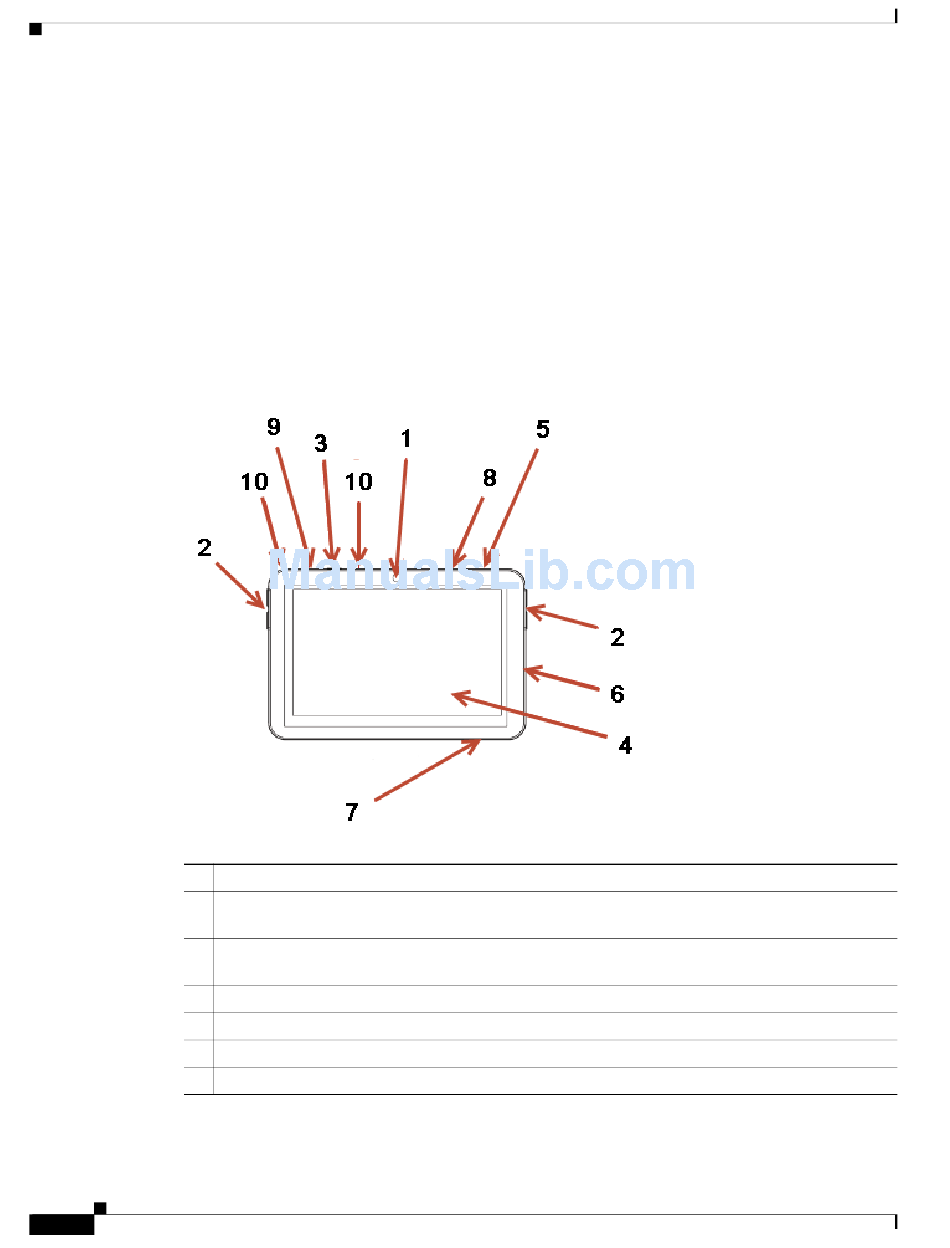

Front View

Figure 1-2
1
2
3
4
5
6
7
Cisco Smart+Connected Portable Tablet Reference Guide
6
Front View, page 6
Top View, page 7
Bottom View, page 7
Right Side View, page 8
Back View, page 8
Front View
Camera. Used for video intercom with another compatible device in another room.
Programmable Buttons (4). Used to program various automation activities in Composer Pro
programming.
Power Button. Used to power the Cisco Portable Tablet on or off. See the
Touchscreen Modes" section on page
Touchscreen. The front face of the Cisco Portable Tablet.
Reset/Restore Pinhole. Used to reset or restore the factory defaults.
Speaker. Used for intercom purposes.
Headphone Jack (3.5 mm). Used to connect headphones for intercom purposes.
12.
"Understanding the
