Summary of Contents for Sennheiser MKE 212
- Page 1 GEBRAUCHSANLEITUNG MKE 212 INSTRUCTIONS FOR USE INSTRUCTIONS POUR L‘USAGE...

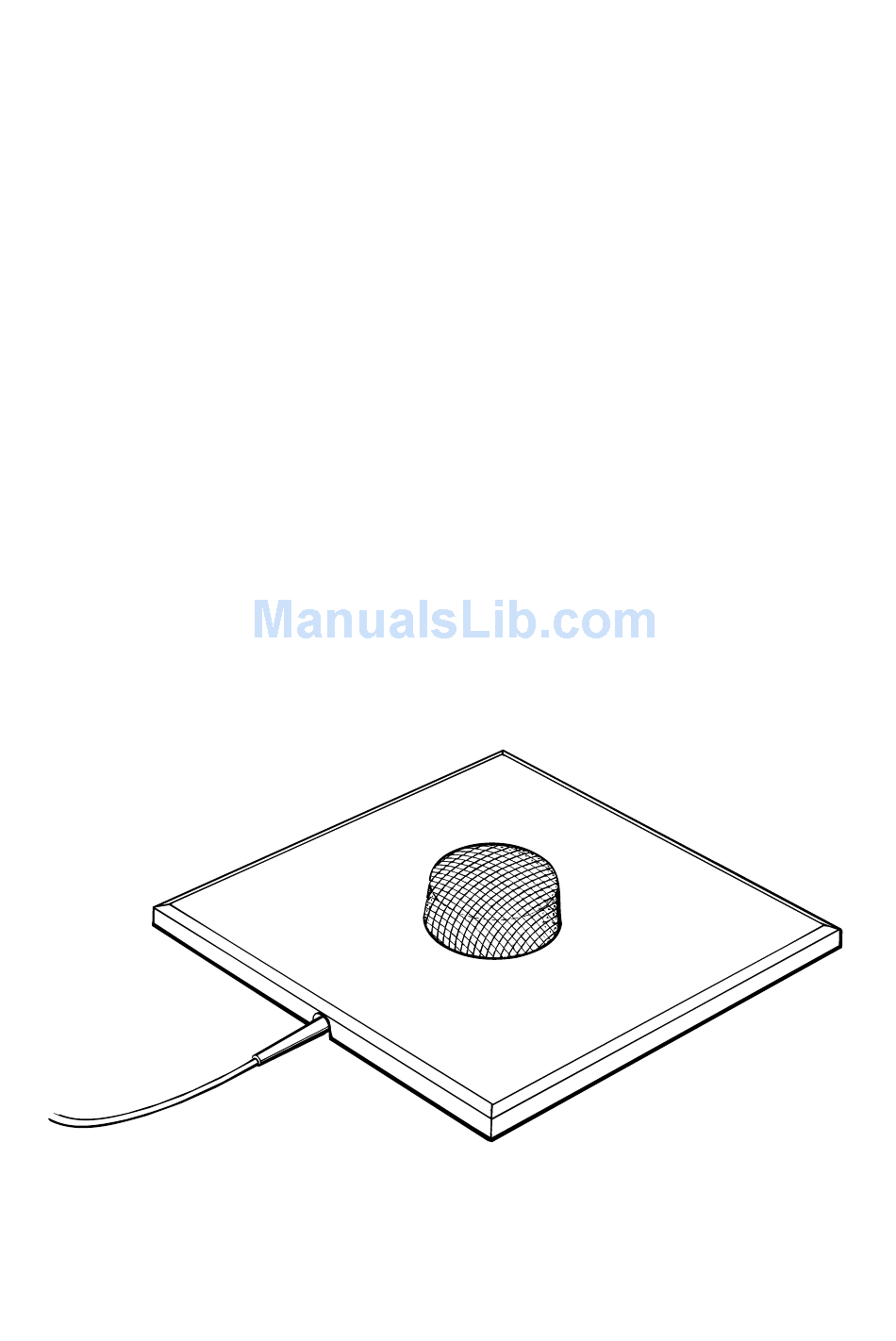

- Page 2 Acoustical Boundary Microphone MKE 212 The MKE 212 is an acoustical boundary microphone which utilizes the increase in sound pressure on acoustically live surfaces and, due to its flush mounting into the surface, does not pick up reflections on this surcface.
- Page 3 6 dB accentuation. In the free field, that is without any additional surface, the MKE 212 has a lower frequency roll-off point of 1 kHz. To attain a lower cut- off frequency, e.g. 500 Hz, a board of 350 mm x 350 mm would be necessaray.
- Page 4 Example for Use Nominal frequency response...
- Page 5 Equivalent noise level 27 dB A-weighted (DIN IEC 651) 38 dB CCIR-weighted (CCIR 468-3) Max. sound pressure level 124 dB at 1 kHz (K=1%) Power supply MKE 212-P: Phantom 12 - 48 Volt MKE 212-60: from K6 / K6P Supply current ca.
