MKE 2 P-C
Microphones |

General Description

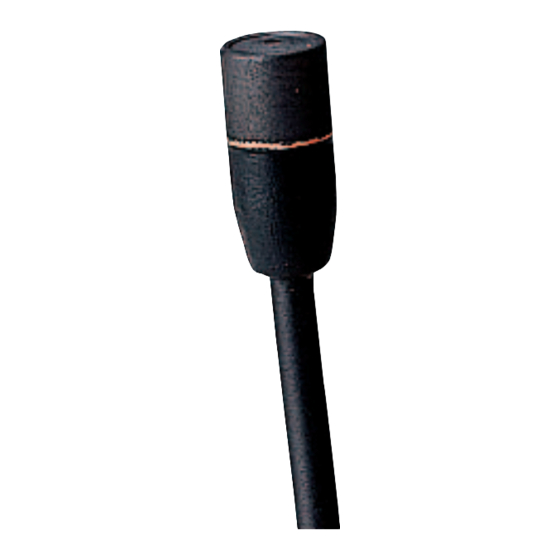

The MKE 2 P-C is a high-quality, sub-miniature clip-on lavalier micro-
phone which has a multitude of applications where other clip-on mic-
rophones prove too obtrusive because of their larger size. It fulfils the
most stringent sound quality demands and is extremely robust. The MKE
2 P-C is suitable for both speech and instrument miking applications in all
areas of live work. It can be directly attached to equipment with 12 – 48
V phantom powering. Colour: matt black.

Features

Flat frequency response
Good suppression of handling noise
Delivery includes: 1 MKE 2 P-C clip-on microphone
1 MZC 2-1 cap (short)

Recommended Accessories

Accessory set
consisting of: 2 MZW 2 (anthracite and nickel)
2 MZQ 02 (anthracite and nickel)
2 ZH 100 (anthracite and beige)
1 carrying case
MZM 2/MZM 10 magnetic mount set

Product Variants

MKE 2-5-C: with open-ended cable,
cable length 4 m, 31 mV/Pa ± 2.5 dB, black
MKE 2-5-3-C: as MKE 2-5-C, but beige
MKE 2-2R-C: with co-axial plug for SK 2012,
cable length 1.6 m, 31 mV/Pa ± 2.5 dB, black
MKE 2-1053-C: as MKE 2-2R-C, but with co-axial
connector for BF 1083-U/BF 1083-V, 5 mV/Pa ± 3 dB
Back-Electret Condenser Microphone
Cat. No. 004225
Cat. No. 001866
Cat. No. 003006
Cat. No. 003010
Cat. No. 004218
Cat. No. 004223

Technical Data

Pick-up pattern ....................................................... omni-directional
Frequency response .................................... 20 – 20,000 Hz ± 3 dB
Sensitivity
(free field, no load) (1 kHz) ............................ 10 mV/Pa ± 2.5 dB
Nominal impedance ................................................................. 200 Ω
Min. terminating impedance ..................................................... 1 kΩ
Equivalent noise level
A-weighted (DIN IEC 651)........................................................ 28 dB
CCIR-weighted (CCIR 468-3).................................................... 39 dB
Max. SPL (1 kHz)...............................................130 dB (THD = 1 %)
Power supply ........................................phantom 12 – 48 V (± 4 V)
Supply current..........................................................................2.6 mA
Connector .....................................................3-pin XLR with integral
Cable length.................................................................................... 3 m
Dimensions .......................................................................... Ø 4.8 mm
Weight .............................................................................................. 1 g
MZW 2 MZQ 02
anthracite anthracite
nickel nickel
Cat. No. 004224
phantom power adaptor
MZM 2
ZH 102
MZM 10
anthracite
grey
beige
