NICE3000 User Manual
S2
S2.4 For test
S2.5 HCB-B function selection
S2.6 HCB-B function selection
The HCB-B provides nine functions, which can be set according to the following table.
Table 4-18 Function setting of the HCB-B
HCB-B Function
1. HCB-B function
2. Binary output
3. 7-segment function
4. BCD output
5. Binary output with letter
6. Disability function output
7. In-car extension output
8. In-car output based on physical floor (binary output)
9. Indication by hall arrival gong and indicator

4.4.3 CCB Board (MCTC-CCB)

The car call board (MCTC-CCB) is another interface between users and the control system. Each CCB
comprises 24 inputs and 22 outputs, including 16 floor buttons and 8 functional signals. The CCB mainly
collects button calls and outputs signals of the button call indicators. The need for 40-floor use can be
implemented through cascaded connection. CN2 is an input connector and CN1 is a cascaded output
connector.

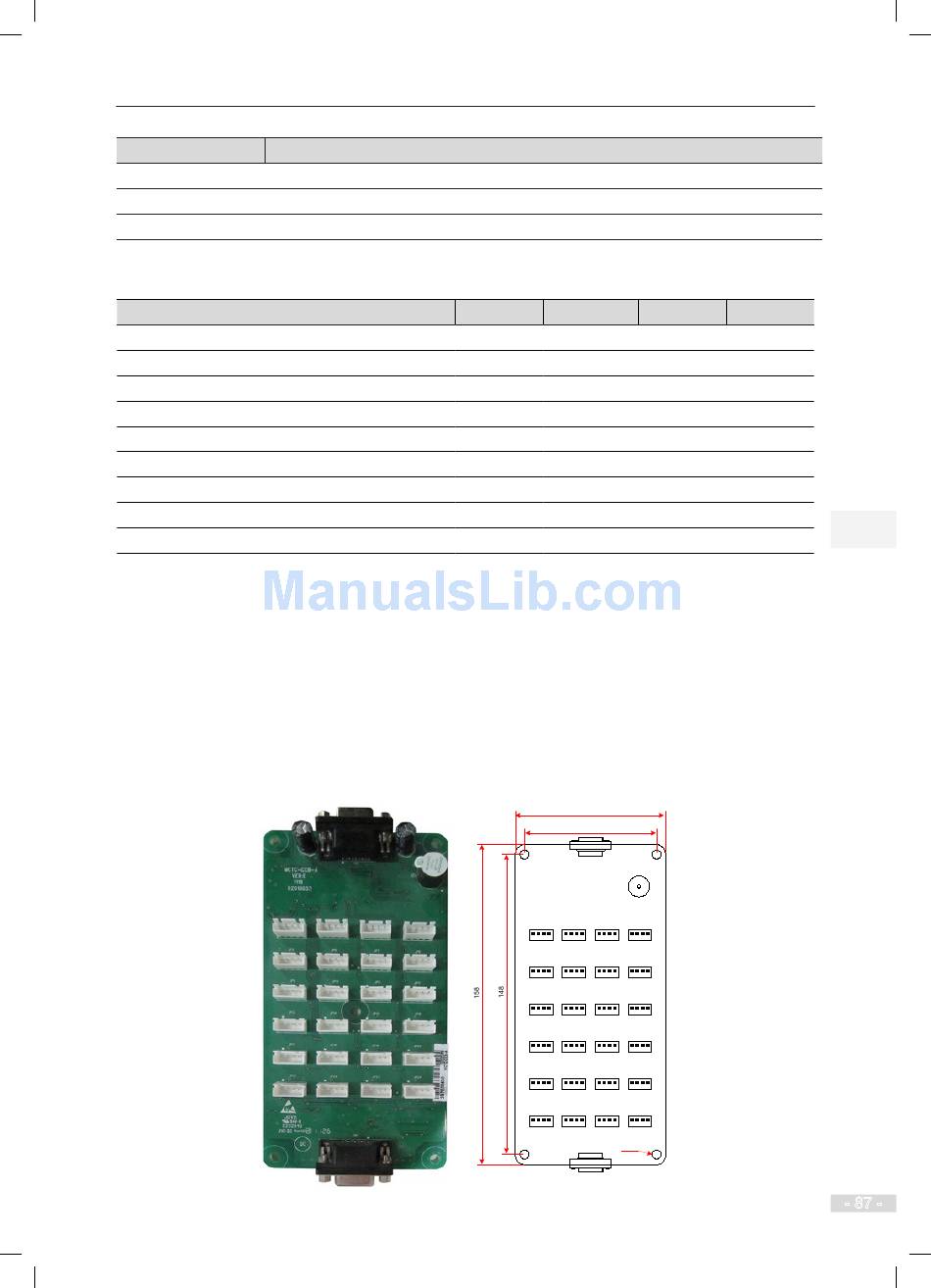

The following figure shows the appearance and dimensions of the CCB.
Figure 4-20 Appearance and dimensions of the CCB
4 Peripheral Devices and Options
Function
S2.6 S2.5
OFF OFF
OFF OFF
OFF OFF
OFF ON
OFF ON
OFF ON
OFF ON
ON OFF
ON OFF
79
69
CN2
Buzzer
MCTC-CCB
JP1 JP2 JP3 JP4
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Floor 1 Floor 2 Floor 3 Floor 4
JP5 JP6 JP7 JP8
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Floor 5 Floor 6 Floor 7 Floor 8
JP9 JP10 JP11 JP12
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Floor 9 Floor 10 Floor 11 Floor 12
JP13 JP14 JP15 JP16
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Floor 13 Floor 14 Floor 15 Floor 16
JP17 JP18 JP19 JP20
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Door Door Door open Direct
open close delay travel ride
JP21 JP22 JP23 JP24
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Attendant Direction Independent Fire
change running emergency
R2.5
CN1
Unit: mm
S2.3 S2.2
ON OFF
OFF ON
OFF OFF
OFF OFF
OFF ON
ON OFF
ON ON
OFF ON
OFF OFF
4
