1. Introduction
The MDKE3 LCD operator has two modes of display in Chinese and English, and has many
functions such as parameter modification, parameter copy, curve display, port monitoring, error
help, and call display. Engineers can easily monitor various states of the integrated controller
through these functions. , which brings great convenience to debugging.
MDKE3 Applicable objects: NICE3000new, NICE5000, NICE7000.

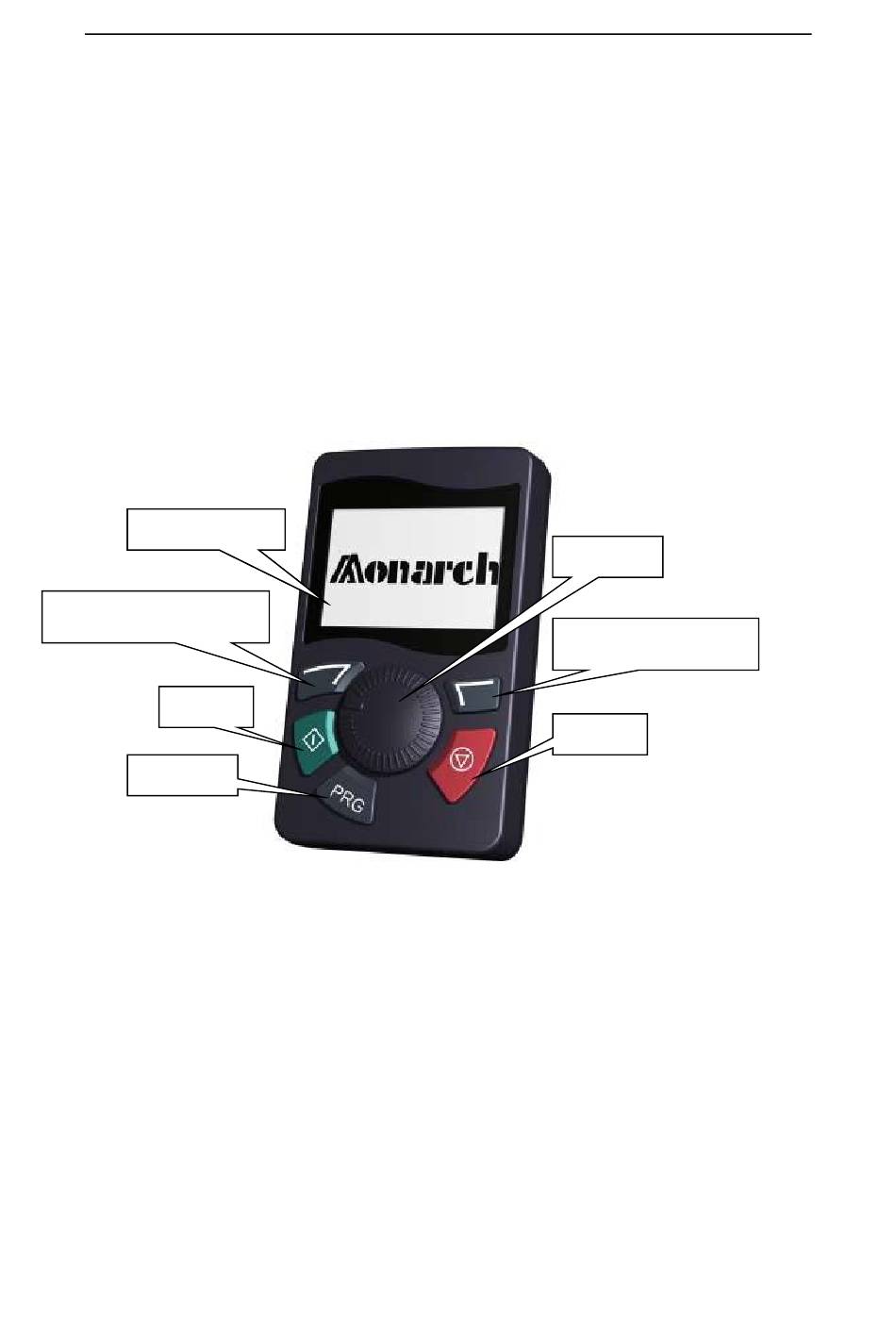

2. MDKE3 Operator Block Diagram
Function key 1 (performs the function shown in the lower left corner of the screen)
Function key 2 (performs the function shown in the lower right corner of the screen)
LCD display
Function key 1
Run
key
PRG
Button description:
1. Function key 1: Execute the function displayed in the lower left corner of the screen,
such as "Return".
2. Function key 2: Execute the function displayed in the lower right corner of the screen,
that is, the "confirmation key", which can enter the menu screen step by step.
3. Knob + button: The knob can be rotated left and right. For example, in the main menu,
it means to move the current cursor left and right. When the function code is displayed, it
means to move the current cursor up and down. When modifying parameters, the parameter
where the current cursor is located can be decreased or increased; press the button It means
"OK", and also means "shift" when modifying parameters.
4. Stop key and run key: When the host is in the operation control mode of the
operation panel, the running state of the host can be changed through these two keys.
5. PRG key: Quickly return to the previous menu.
MDKE3 USER MANUAL
Potensi Elevator
Knob+ button
Function key2
Stop
1 / 13
Advertisement
Related Manuals for Monarch MDKE3
Summary of Contents for Monarch MDKE3
- Page 1 MDKE3 USER MANUAL 1. Introduction The MDKE3 LCD operator has two modes of display in Chinese and English, and has many functions such as parameter modification, parameter copy, curve display, port monitoring, error help, and call display. Engineers can easily monitor various states of the integrated controller through these functions.
- Page 2 3. Main interface In the MDKE3 LCD operator, the main interface is an icon displayed with animation effects, which is vivid and vivid. Each icon reflects a function of the MDKE3 operator. The interface is as follows 2 / 13...
- Page 3 The operator can copy the parameter values in the integrated controller to the MDKE3 operator through the functions in this icon, and can also use the hand-held operation In the integrated controller that downloads the parameters in the controller, this function is particularly important when the debugging personnel debug multiple identical elevators, which can save a lot of time for the debugging personnel.
- Page 4 Potensi Elevator Step 3: Press the knob to confirm or function key 2 to enter the following screen, and use the knob to adjust the cursor to the position of F2-18 Step 4: Press the knob to confirm or function key 2 to enter the modification screen Step 5: (Assuming to modify this parameter to 206) Rotate the knob, the cursor will change accordingly: 4 / 13...
- Page 5 Potensi Elevator Step 6: Press the OK key, the corresponding knob cursor will flash, Step 7: Rotate the knob to change the value to 6 Step 8: Press the knob OK key, then the cursor will move directly to the highest position, as shown in the following figure Step 9: Press function key 2 to modify the modification successfully exit the modification, when press function key 1 then directly return, do not modify.
- Page 6 Potensi Elevator Press the knob to determine the key or function key 2, modify successfully, return to step three, press function key 2 to return to step three, do not modify the parameters b) Modify parameters bitwise such as: FA-01 (bit0: set speed, bit1: logic information, bit2: curve information, bit3: pre-torque current, bit4: Feedback speed, bit5: bus voltage, bit6: output voltage, bit7: output current, bit8: output frequency, bit9: output torque, bit10: torque current, bit11: output power bit12: current position...
- Page 7 Potensi Elevator Step 2: Press the knob OK key or function key 2 to enter the following interface and adjust the cursor position Step 3: Press the knob OK key or function key 2 to enter the following screen Step 4: In order to prevent misoperation, put the default value on the cancel, rotate the knob to make the cursor to the ok key position, as shown in the figure Step 5: Press function key 2 to start the parameter copy, the interface is as follows: 7 / 13...
- Page 8 Potensi Elevator Step 6: When the copy suddenly wants to terminate, press the function key 1 to terminate the copy, when the copy is completed, as shown in the figure Step 7: Press Function Key 2 to return to Step 2 Port Display：...
- Page 9 Potensi Elevator Note: If it is the output terminal state, this interface only shows valid and invalid, and there is no normally open and normally closed When you directly press the modifier key, the function key 2, you can directly modify the normally open and normally closed state of the corresponding terminal.
- Page 10 Potensi Elevator Step 2: Press the knob to determine the key or function key 2 to enter the main interface of the curve display, as shown in the figure: Step 3: select the monitoring curve, the oscilloscope function can monitor the curve state of the four variables at the same time, the debugger can choose different curves according to their needs, or only one or several curves can be selected.
- Page 11 Potensi Elevator Step 6: When the curve display is complete or the debugger believes that the drawn curve has met the analysis requirements, press function key 1 to stop drawing the curve. At this point, the curve has been preserved on the screen, and the debugger presses the knob button to determine the key to enter the following screen (Note: this screen will not be entered when running.) Step 7: When the knob to determine the key, the view curve interface appears, as shown in the following figure, at this time rotate the knob, a cursor will appear in the middle, the intersection...
- Page 12 Potensi Elevator curve is drawn with a large amplitude, it has exceeded the upper edge of the display screen, the operator will automatically adjust the amplitude of the curve. 4) A specific operation on a curve is only valid when the curve is stopped. Summon status The summon function simulates external and internal calls, summoning stairs on different floors.
- Page 13 Potensi Elevator Step 5: Press the PRG key to return to the main menu Error help Error Help provides the cause and solution of the error in the all-in-one controller for debuggers to see. Step 1: Move the cursor to the position below screenshot shown on the main interface Step 2: Press the knob to determine the key or function key 2 to enter the secondary menu, as shown in the figure: Step 3: Press the function key 2 or the knob OK key to enter the main interface as follows...
