  • Page 1: Dvd Player

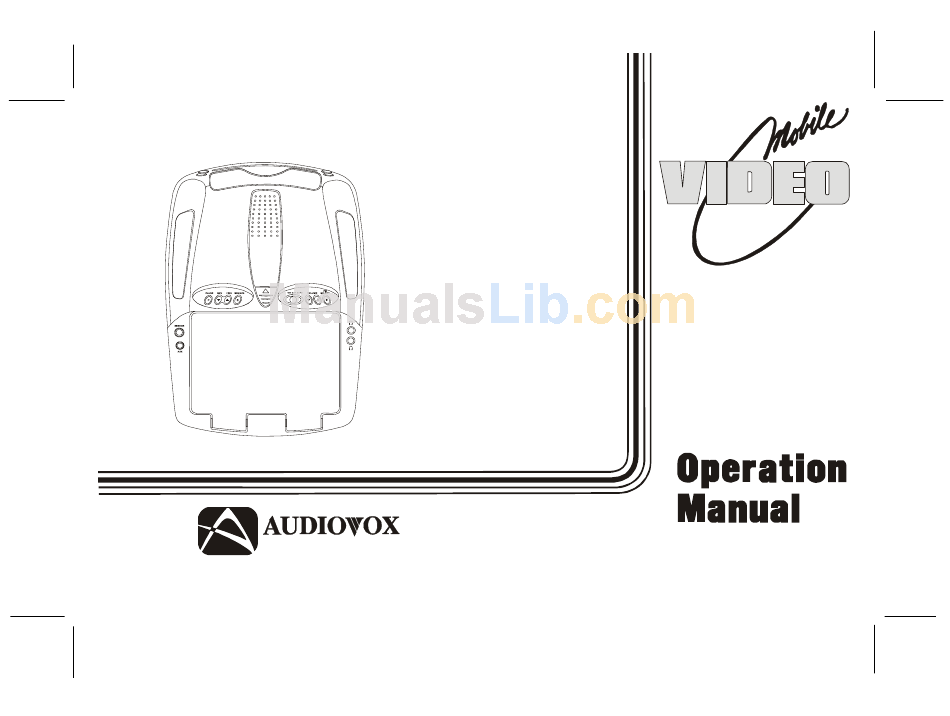

    VOD705 VOD1022 DVD PLAYER WITH DROP-DOWN VIDEO TV/MONITOR ® ELECTRONICS CORP . 128-7094 128-7094 Release Date 6/28/04 1 of 31...

  • Page 2: Important Notice

    In the interest of safety, the VOD1022 should never be installed where it will be visible, directly or indirectly, by the operator of the motor vehicle.

  • Page 3: Safety Precaution

    Congratulations on your purchase of the Audiovox VOD1022 DVD Player with Drop-Down Video monitor/ TV. The VOD1022 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment.

  • Page 4: Controls And Indicators Diagram

    Controls and Indicators Diagram 128-7094 4 of 31...
  • Page 5 5. STOP ( ) Button – To stop playback. 6. Infrared Transmitter and Sensor – Use to transmit audio to wireless headphones. Also allows the remote control to operate the VOD1022 and to control other accessories in the system. 7. VOD1022 Ventilation Opening.
  • Page 6 ) Button – Use this button to raise the volume level of the wired headphone jacks. It is also used to make picture adjustments in the picture select mode. Audiovox recommends the use of the Audiovox HP275 Headphones when using wired headphones. 21. Three position Dome Light Switch •...

  • Page 7: Remote Control Operation

    3) Align the cover tabs with the remote control and press down until the cover clicks. The remote control will operate the VOD1022 and most Audiovox VCP’s. It is not a universal remote control and will not control equipment from other manufacturers.
  • Page 8 Function control is available on the unit and the remote control 1. POWER Button* Press this button to turn the VOD1022 on. Press the button again to turn the VOD1022 off. 2. SOURCE Button* Video signals from video equipment connected to the audio / video inputs can be displayed on the monitor by pressing this button.
  • Page 9 6. Channel Up ( ) Button* Use this button to increase the channel number to the desired channel and to scroll upward in menu options. 7. MUTE Button Press this button to mute the audio. Pressing the button again restores the sound to the previously set level. 8.

  • Page 10: Display Button

    13. DISPLAY Button Press to display DVD Disc current information. Press DISPLAY button DVD Player Perform Once Display current TITLE & CHAPTER Twice Display current SUBTITLE 3 times Display current AUDIO language & channel 4 times Display current ANGLE 5 times...
  • Page 11 17. REV ( ) Button* Allows the user to search in a backward direction at 2,4, 6 and 8 times the normal speed for DVD. Allows the user to activate the video tape rewind search mode for VCP. 18. FWD ( ) Button* Allows the user to search in a forward direction at 2,4, 6 and 8 times the normal speed for DVD.

  • Page 12: Setup Button

    Use this button to decrease the channel number to the desired channel and to scroll downward in the menu options. 26. SETUP Button Allows the user to select the DVD player’s setup options (Display, OSD Language, Defaults, Parental Control, Password, Exit Setup). 27. RIGHT ( ) Button Allows the user to shift to the right in the menu options.
  • Page 13 30. VOLUME UP (+) Button* Use this button to raise the volume level of the wired headphone jacks. This button is also used to make picture adjustments in the picture select mode. Note: The volume buttons will not affect the volume of wireless headphones or a wired FM modulator. When using these devices the volume must be adjusted with the wireless headphone volume control or with your radio’s volume control (see page 17, Headphones, or page 18, Wired FM Modulator).
  • Page 14 Press the Up or Down button to select an item. For example, highlight SET PICTURE and press the Enter button. The PICTURE menu will appear. Use the Up or the Down button to highlight Contrast and press the ENTER button, then press the Left or Right button to adjust the setting. VOD1022 Menu Display SELECT VIDEO PICTURE...
  • Page 15 Direction of adjustment item MENU in DVD, AV1, AUX Item Condition SELECT VIDEO SET PICTURE CONTRAST BRIGHTNESS COLOR TINT RESET MODE SELECT 16 : 9 4 : 3 VOLUME MENU in TV Condition Item AUTO PROGRAM ADD CHANNEL ERASE CHANNEL AUTO PROGRAM ANTENNA INPUT Right Button...

  • Page 16: Overhead Dome Lights

    4. Remember to turn the unit off and pivot the LCD to the locked position when not in use. Overhead Dome Lights The lights integrated into the VOD1022 are controlled by a three position slide switch. Sliding the switch to the on position will turn the lights on.

  • Page 17: Remote Sensor

    Accessories Wireless Headphones The VOD1022 includes a built-in infrared transmitter for use with Audiovox wireless headphones (P/N IR2CHS). The volume can then be adjusted using the controls on each headset. The wireless headphones must be used within a line of sight from the transmitter, as infrared transmissions, like visible light travel only in a straight line. See the documentation accompanying your Audiovox wireless headphones.
  • Page 18 Wired FM Modulator The VOD1022 is equipped with an RF modulator, that allows you to listen to the VOD1022 audio signal by tuning your vehicle’s radio to the selected frequency, (88.3, 88.7, 89.1, 89.5, 89.9, 90.3MHz). This feature is accessed by using either the FM transmitter buttons on the remote (On/Off, Source Select, Channel Select) or the FM Select button on the unit.

  • Page 19: Dvd Basics

    Regional Coding Both the DVD player and DVD’s are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. This unit’s code is region 1. Other regional codes cannot be played in this unit.

  • Page 20: Settings And Adjustments

    Settings and Adjustments This chapter describes how to set and how to adjust using the on-screen DVD SETUP menu. Using the Setup Menu Using the setup display, you can do the initial setup, adjust the picture display ratio (16:9 or 4:3) and set the various outputs.
  • Page 21 Settings for Display Press the SETUP button and select Display. The DISPLAY SETUP allows you to adjust screen setting (aspect ratio) Press ▼▲ ▼▲ ▼▲ ▼▲ ▼▲ and then use the ( )buttons to select the appropriate settings. 4:3 / PS This displays the wide picture on the screen with a portion of the left &...
  • Page 22 Settings for Parental (Parental Control) This section of the SETUP Menu allows user to control the content of movie playback from G to Adult. The Parental Control function allows you to limit viewing to your preference. ▼▲ ▼▲ ▼▲ ▼▲ ▼▲...

  • Page 23: New Password

    Settings for Password (Parental Control Password) Press the SETUP button and select PASSWORD. The PASSWORD SETUP allows you to change the parental control password. Press and then press Enter. OLD PASSWORD Input the old password or the default password (4 digits) NEW PASSWORD Input a new password (4 digits) using numeric buttons CONFIRM PASSWORD...

  • Page 24: Playing Audio Cds

    Playing Audio CDs When playing an audio CD, the DISPLAY Banner appears automatically. It displays the current track and the amount of the time for that track playing, the total amount of time on the disc and the current time running on the disc. Press the DISPLAY button on the remote to display the DISPLAY Banner.

  • Page 25: Playing Mp3 Discs

    CD-R discs that have been encoded in MP3 format can be played on your DVD player. Press the DISPLAY button on the remote to show the DISPLAY Banner. The options below show you what happens when you press the DISPLAY button.
  • Page 26 When an MP3 disc is inserted in the player, the Smart Nav screen appears automatically. You can change folders and songs through Smart Nav. The DVD player plays the songs in order they were burned on to the disc. 1. If a disc is playing, press STOP. Press the up or down arrow button to go through the folder list on the right side of the Smart Nav screen.

  • Page 27: Troubleshooting

    • Insert a disc with the label side facing Disc won’t play • Check the type of disc you put into disc tray. This DVD player only plays DVD’s, audio CDs and MP3s. • Both the unit and the disc are coded by region.
  • Page 28 SOLUTION PROBLEM Picture is • The disc might be damaged. Try distorted another disc. • It is normal for some distortion to appear during forward or reverse scan. No forward or • Some discs have sections that reverse scan prohibit rapid scanning or title and chapter skip.

  • Page 29: Replacement Parts

    Replacement Parts Remote Control 136B3447 Specifications LCD Backlighting Edge Light Tube Resolution 800 x 480 Pixels 1,152,000 Operation Temperature 32 -140º F (0 - 60º C) Storage Temperature -4 - 176º F (-20 - 80º C) Backlight life 10,000 Hours Video Display System NTSC / PAL Headphone Audio Output...

  • Page 30: 12 Month Limited Warranty

    Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
