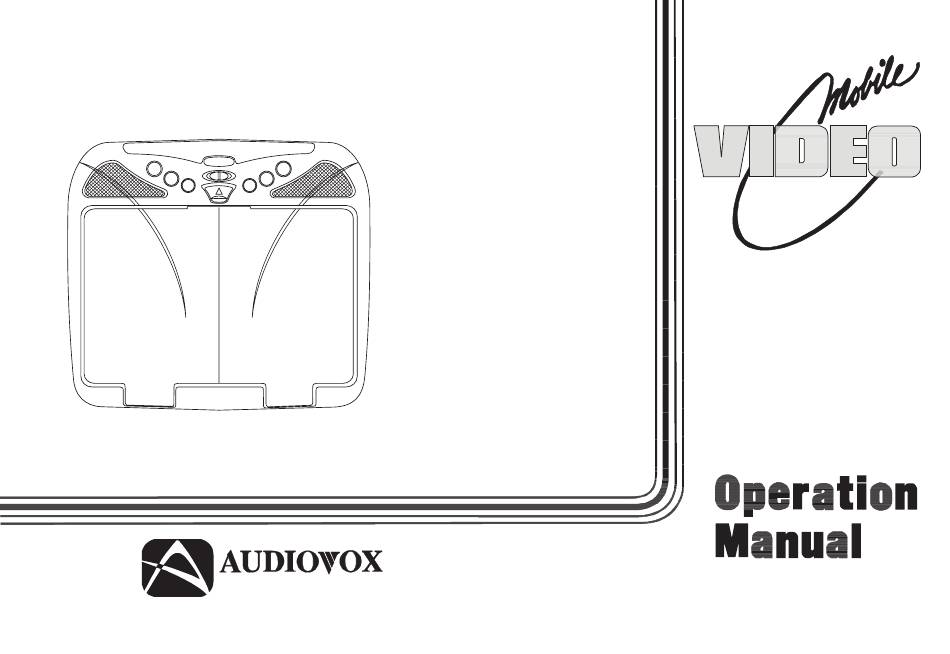

- Page 1 VOH8512 DROP-DOWN VIDEO MONITOR ® ELECTRONICS CORP . 128-7297...
-
Page 2: Important Notice
Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”... - Page 3 Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 4 Controls and Indicators Diagram...
- Page 5 Also allows the remote control 11. FM Select Button – When this button is pressed it will turn to operate the VOH8512 and to control other accessories in on the wireless FM Modulator and then cycle through FM the system.
-
Page 6: Remote Control Operation
3) Align the cover tabs with the remote control and press down until the cover clicks. The remote control will operate the VOH8512 and most Audiovox VCP’s. It is not a universal remote control and will not control equipment from other manufacturers. - Page 7 *** Function only available if optional TV Tuner is installed. 1. POWER Button* Press this button to turn the VOH8512 on. Press the button again to turn the VOH8512 off. 2. SOURCE Button* Each time the button is pressed, the audio / video source will change: AV1, AV2, AUX.
- Page 8 7. MUTE Button Press this button to mute the audio. Pressing the button again restores the sound to the previously set level. 8. ENTER Button** Used to implement a selected setting or menu option. 9. LEFT ( ) Button** Allows the user to shift left in the menu options. 10.
- Page 9 14. DISPLAY Button** Press to display DVD Disc current information. Press DISPLAY button DVD Player Perform Once Display current TITLE , CHAPTER & elapsed time Twice Display current SUBTITLE 3 times Display current AUDIO language & channel 4 times Display current surround mode 5 times Display current ANGLE 6 times...
- Page 10 17. ZOOM Button – Press this button to zoom the picture. ** Press ZOOM button DVD Player Perform Once ZOOM picture 2 times Twice ZOOM picture 3 times 3 times ZOOM picture 4 times 4 times Reduces picture to 1/2 normal size 5 times Reduces picture to 1/3 normal size 6 times...
- Page 11 23. FWD ( ) Button** Allows the user to search in a forward direction at 2,4,8, 16 and 32 times the normal speed. 24. PLAY ( )Button** Press this button to activate the play mode when a disc is loaded into the disc compartment. 25.
- Page 12 31. A-B Button** Allows the user to repeat playback of a DVD or CD from point A to point B. 32. REPEAT Button** Allows the user to repeat a chapter, title, track, or all of a DVD, CD or MP3. 33.
- Page 13 38. (+) Button* Used to make picture adjustments in picture select mode. 39. NUMBER Buttons*** Allows the user to directly access specific TV channels. 40. IRT A ON/OFF Buttons* Turn Infrared Transmitter power ON/OFF for IR Wireless Headphone Channel A. 41.
-
Page 14: Overhead Dome Lights
Light Transmitter Switch The lights integrated into the VOH8512 are controlled by a three position slide switch. Sliding the switch to the on position will turn the lights on. The off position will prevent the lights from turning on at all times, and the auto position will allow the lights to turn on and off with the vehicle’s interior lighting. -
Page 15: Remote Sensor
Remote Sensor Eye The VOH8512 includes a built-in infrared transmitter for use with Audiovox wireless headphones (Part Number MVIRHS). The volume can then be adjusted using the controls on each headset. Any number of wireless headphones may be used but they must be used within a line of sight from the transmitter, as infrared transmissions, like visible light travel only in a straight line. - Page 16 The AV1/AV2 video input may be connected to a DVD Player, video game system, or other audio / video devices. To access the A/ V inputs, turn the VOH8512 on and press the source button on the VOH8512 or the Source button on the remote control until “AV1”...
-
Page 17: Troubleshooting
Troubleshooting PROBLEM SOLUTION • Check the condition of the vehicle’s radio antenna. Poor in vehicle • radio reception Verify that the antenna is fully raised. • If a relay box (SIRSWB) has been insatalled, make sure that the FM Modulator is turned OFF. •... -
Page 18: Replacement Parts
Replacement Parts Specifications Remote Control 136-3855 LCD Backlighting Edge Light Tube Resolution 1440 x 234 Pixels 336,960 Operation Temperature 32 -140º F (0 - 60º C) Storage Temperature -4 - 176º F (-20 - 80º C) Backlight life 10,000 Hours Video Display System NTSC / PAL Video Output... - Page 19 Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
