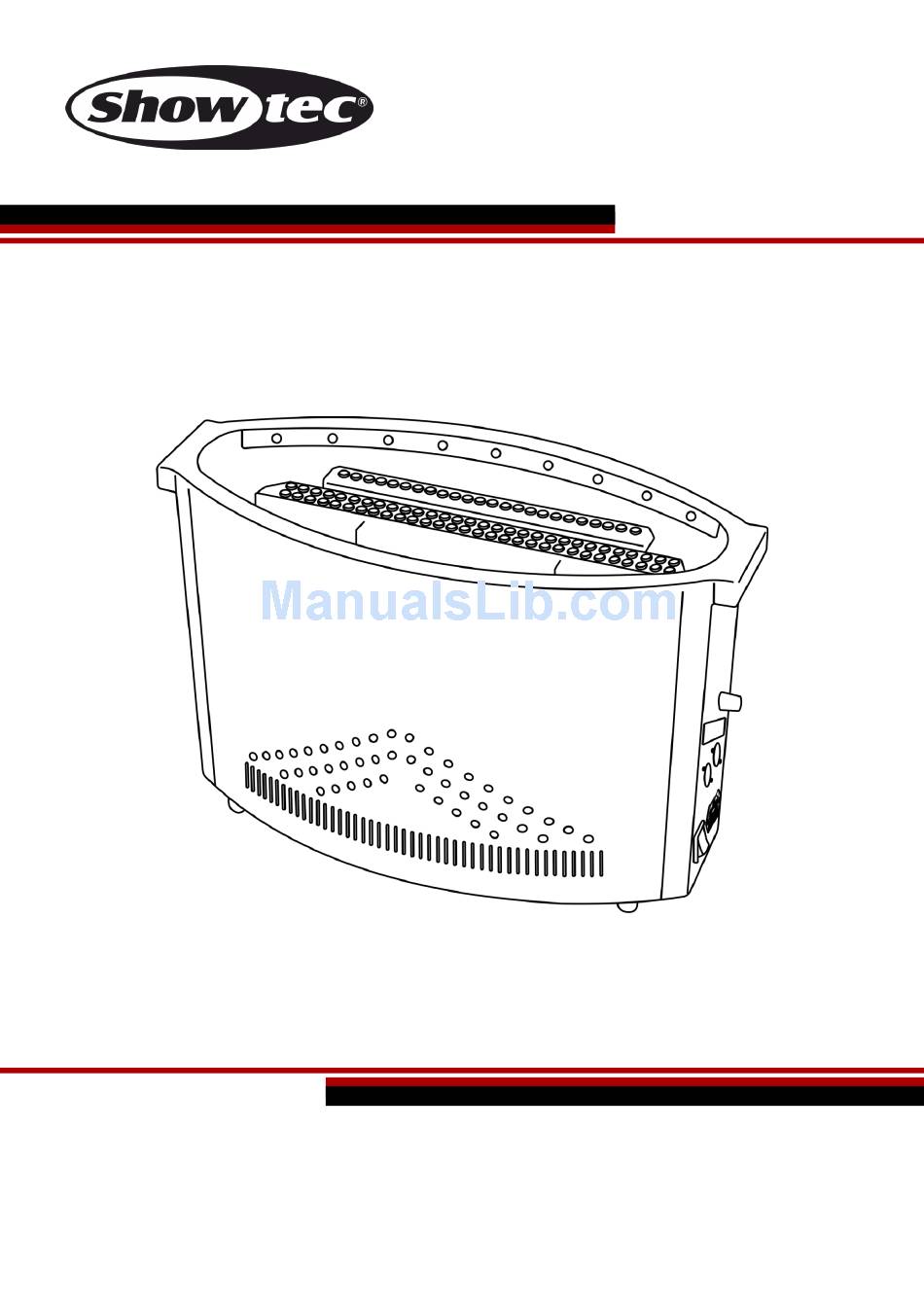

- Page 1 MANUAL ENGLISH Flame Light 1,5m LED Ordercode: 40637 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
3. Master/Slave Mode .............................13 4. DMX-512 Mode ..............................14 DMX Address Quick Reference Chart .........................15 DMX Channels ................................16 6 Channels ................................16 Maintenance ..................................17 Replacing the Fuse ..............................17 Troubleshooting................................17 No Light ..................................17 No Response to DMX..............................18 Product Specifications ..............................19 Dimensions ..................................20 Notes ....................................21 Ordercode: 40637... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Flame Light 1,5m LED DMX IEC power cable (1,10 m) ... - Page 4 If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
You endanger your own safety and the safety of others! Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Ordercode: 40637... -
Page 6: Connection With The Mains
Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER NEUTRAL YELLOW/GREEN GREEN GREEN PROTECTIVE GROUND Make sure that the device is always connected properly to the earth! Ordercode: 40637... -
Page 7: Return Procedure
After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting. Ordercode: 40637... -
Page 8: Description Of The Device
Flame Light 1,5m LED Description of the device Features The Showtec Flame Light 1,5m LED DMX is an RGB flame machine with high output and great effects. Input Voltage: 240V, 50Hz Power consumption: 136W Control modes: Stand-alone, Sound-controlled, Master/Slave, DMX-512 ... -
Page 9: Installation
12-13 (Stand-alone or Sound- controlled). This means that you can set your desired operation mode on the master device and all slave devices will react the same as the master device. Ordercode: 40637... -
Page 10: Multiple Flame Lights (Dmx Control)
06) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not supply power before the whole system is set up and connected properly. Ordercode: 40637... -
Page 11: Fixture Linking
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically isolated splitter may result in deterioration of the digital DMX signal. Maximum recommended DMX data link distance: 100 meters Maximum recommended number of fixtures on a DMX data link: 30 fixtures Ordercode: 40637... -
Page 12: Data Cabling
The controller is switched off or defective, the cable or connector is defective, or the signal wires are swapped in the input connector. Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure proper transmission on the DMX data link. Ordercode: 40637... -
Page 13: Main Menu Options
1.4 5-Color Switch Mode 01) Set DIP switch 4 to ON position and all the remaining switches to OFF position, in order to activate the 5-Color Switch Mode. 02) Turn the control (01) to decrease/increase the color switch speed. Ordercode: 40637... -
Page 14: Red & Green Switch Mode
02) In all the connected slave devices, set DIP switch 10 to ON position and all the remaining switches to OFF position in order to activate the Master/Slave Mode. 03) Now, all the connected slave devices will react the same as the master device. Ordercode: 40637... -
Page 15: Dmx-512 Mode
In the table you will see that #1=ON, #2=OFF, #3=ON, #4=OFF, #5=OFF. 03) Finally, look at the upper side of the table (DIP Switches #6-#9) vertically from 133. In the table you will see that #6=OFF, #7=OFF, #8=ON, #9=OFF. Ordercode: 40637... -
Page 16: Dmx Address Quick Reference Chart
Flame Light 1,5m LED DMX Address Quick Reference Chart Ordercode: 40637... -
Page 17: Dmx Channels
Color switch, from slow to fast 161-235 Color flow, from slow to fast 236-255 Sound-controlled Mode Channel 6 – Strobe ( CH1 must be set between 128-255 while CH2-CH4 must be active 0-255 Strobe flash frequency, from slow to fast Ordercode: 40637... -
Page 18: Maintenance
01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Flame Light 1,5m LED to your Showtec dealer. 03) The fuse. Replace the fuse. See page 17 for replacing the fuse. -
Page 19: No Response To Dmx
Turn up the air conditioning intermittently • Disconnect the fixture and return it LEDs damaged to your dealer The power supply settings do not • Disconnect fixture. Check settings match local AC voltage and and correct if necessary frequency Ordercode: 40637... -
Page 20: Product Specifications
Flame Light 1,5m LED Product Specifications Model: Showtec Flame Light 1,5m LED DMX Input Voltage: AC 240V, 50Hz Continuous Power: 136W Fuse: F2AL/250V Dimensions: 520 x 250 x 346 mm (LxWxH) Weight: 11 kg Operation and Programming: Setup and Addressing:... -
Page 21: Dimensions
Flame Light 1,5m LED Dimensions Ordercode: 40637... -
Page 22: Notes
Flame Light 1,5m LED Notes Ordercode: 40637... - Page 23 Flame Light 1,5m LED Ordercode: 40637...
- Page 24 ©2015 Showtec...
