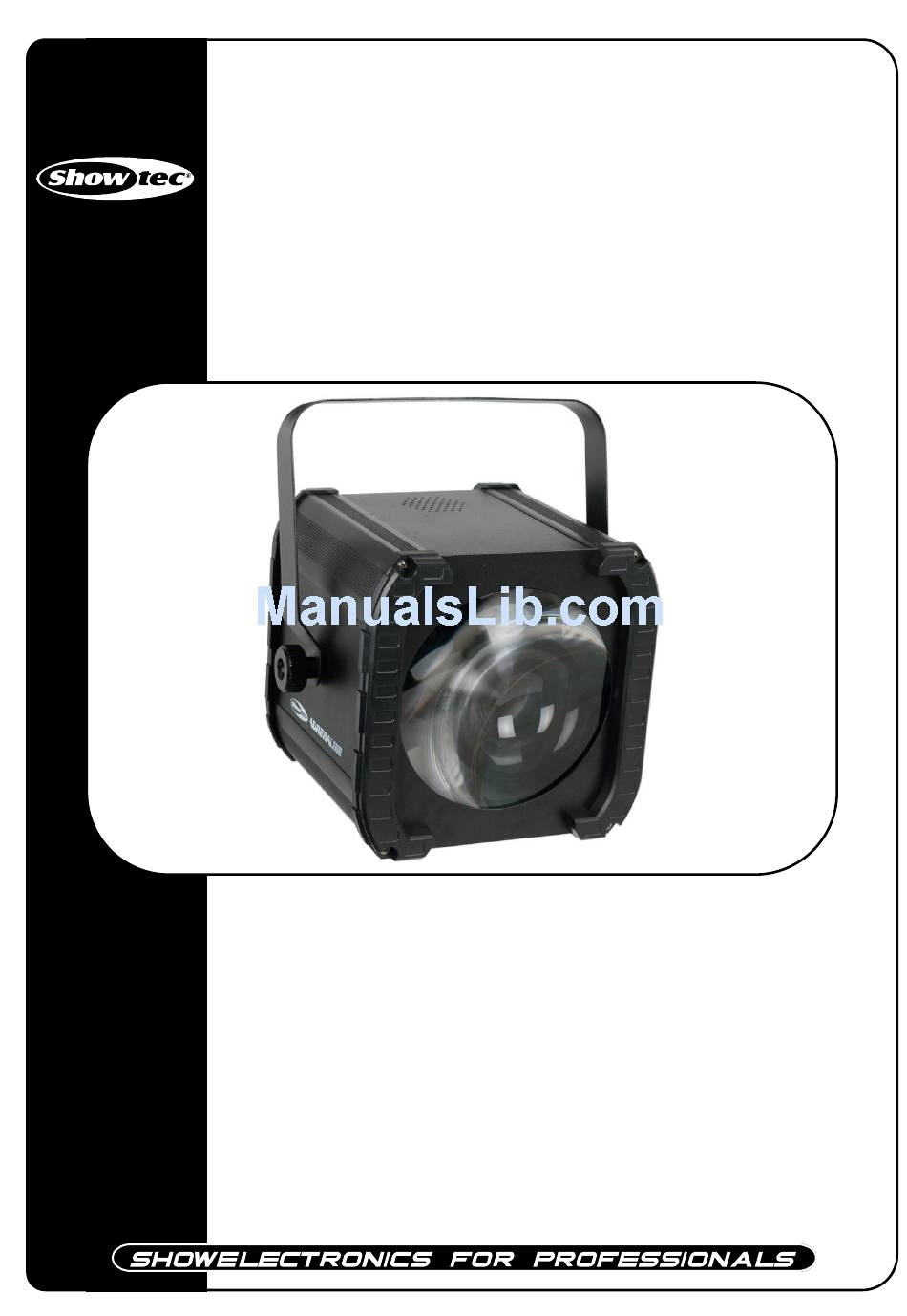

- Page 1 Adrenaline ORDERCODE 43093 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
One Adrenaline (Built-in Programs 1-16)………………………………………………………………….…. One Adrenaline (Sound Control)……………………..………………………………………….……..……. Multiple Adrenaline (Master/Slave control).………………………………………………………...……… Multiple Adrenaline (DMX control)…………………………………………………………..……………….. Fixture Linking…………………....……..……………………………………..…………………..…………..….. Data Cabling………………..……..……………………………………………..………………………….……. Control Panel….....……........………………………………………………………….……. Control Mode........……………………………………………………………………….…….. addressing........………………………………………………………………………….…… MENU OVERVIEW ……..……………………………………..…………………………………….…….……….…..Main Menu Options…..……………………………………..…………………………………….………………….. - 1. DMX Mode….........…..……………………..…………..………………..... - 2. Channel Mode….........…..……………………..…………..……………….. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Adrenaline with cable 1,5m and hanging-bracket. •User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: If the Adrenaline is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the Adrenaline, with the mounting-bracket, to the trussing system. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description
Description of the device Features The Showtec Adrenaline is a light effect with high output and great effects. • Power Input: 100-230V 50/60 Hz • 1, 4 or 256 DMX Channels • Peak Power 155 Watt; Continuous Power 98 Watt •... -
Page 9: Installation
Installation Remove all packing materials from the Adrenaline. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Multiple Adrenaline (Master/Slave Control)
Multiple Adrenalines (Master/Slave control) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. Use a 3-p XLR cable to connect the Adrenaline. The pins: Earth Signal - Signal + 3. -
Page 11: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
DMX address the next time.) DMX Addressing The control panel on the front side of the Adrenaline allows you to assign the DMX fixture address, which is the first channel from which the Adrenaline will respond to the controller. -
Page 13: Menu Overview
Menu Overview... -
Page 14: Main Menu Options
Main Menu Options 1. DMX address 2. Channel Mode 3. Master / Slave 4. Built-in Programs 5. Sound-controlled 6. Blackout 7. LED 8. Display 9. Test 10. Working LED time 11. Version 1. DMX Mode With this menu you can set the DMX address. 1) Press the MENU button, until the display shows 2) You can choose 512 different DMX addresses. -
Page 15: Master/Slave Mode
3. Master/Slave Mode 1) Press the MENU button, until the display shows 2) You can choose 3 different modes. Use the Up / Down buttons to select the required Mode. Master Slave 1 Slave 2 When the display shows : the device is a slave device. -
Page 16: Sound Control Mode
3) In each mode you have the ability to choose the speed, except mode You can choose 3 different speeds. Use the Up / Down buttons to select the required speeds. Fast Average Slow 5. Sound control Mode 1) Press the MENU button, until the display shows 2) You can choose to allow the device to react to the music. -
Page 17: Dmx Channel Setting
DMX Protocol 1 Channel ( Channel 1 – Built-in Programs 0-29 No Function 30-49 Built-in Program 1 50-69 Built-in Program 2 70-89 Built-in Program 3 90-109 Built-in Program 4 110-129 Built-in Program 5 130-149 Built-in Program 6 150-169 Built-in Program 7 170-189 Built-in Program 8 190-209... -
Page 18: 256 Channels
DMX Protocol 256 Channels ( Channel 1 – LED 1 Dimmer 0-255 Dimmer LED 1 from black to brightest Channel 2 – LED 2 Dimmer 0-255 Dimmer LED 2 from black to brightest Channel 3 – LED 3 Dimmer 0-255 Dimmer LED 3 from black to brightest Channel 4 –... -
Page 19: Maintenance
Maintenance The Showtec Adrenaline requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. - Page 20 Problem Probable cause(s) Remedy One or more No power to the fixture · Check that power is switched on fixtures are and cables are plugged in. completely dead. Primary fuse blown. · Replace fuse. Fixtures reset The controller is not connected. ·...
-
Page 21: Product Specifications
Product Specification Model: Showtec Adrenaline Power Input: 100-230V 50/60 Hz 1, 4 or 256 DMX Channels Peak Power 155 Watt; Continuous Power 98 Watt Light Source: 256 x 5mm power LEDs (64x Red, 64x Green, 64x Blue, 64x White) Beam angle: 35 degrees...
