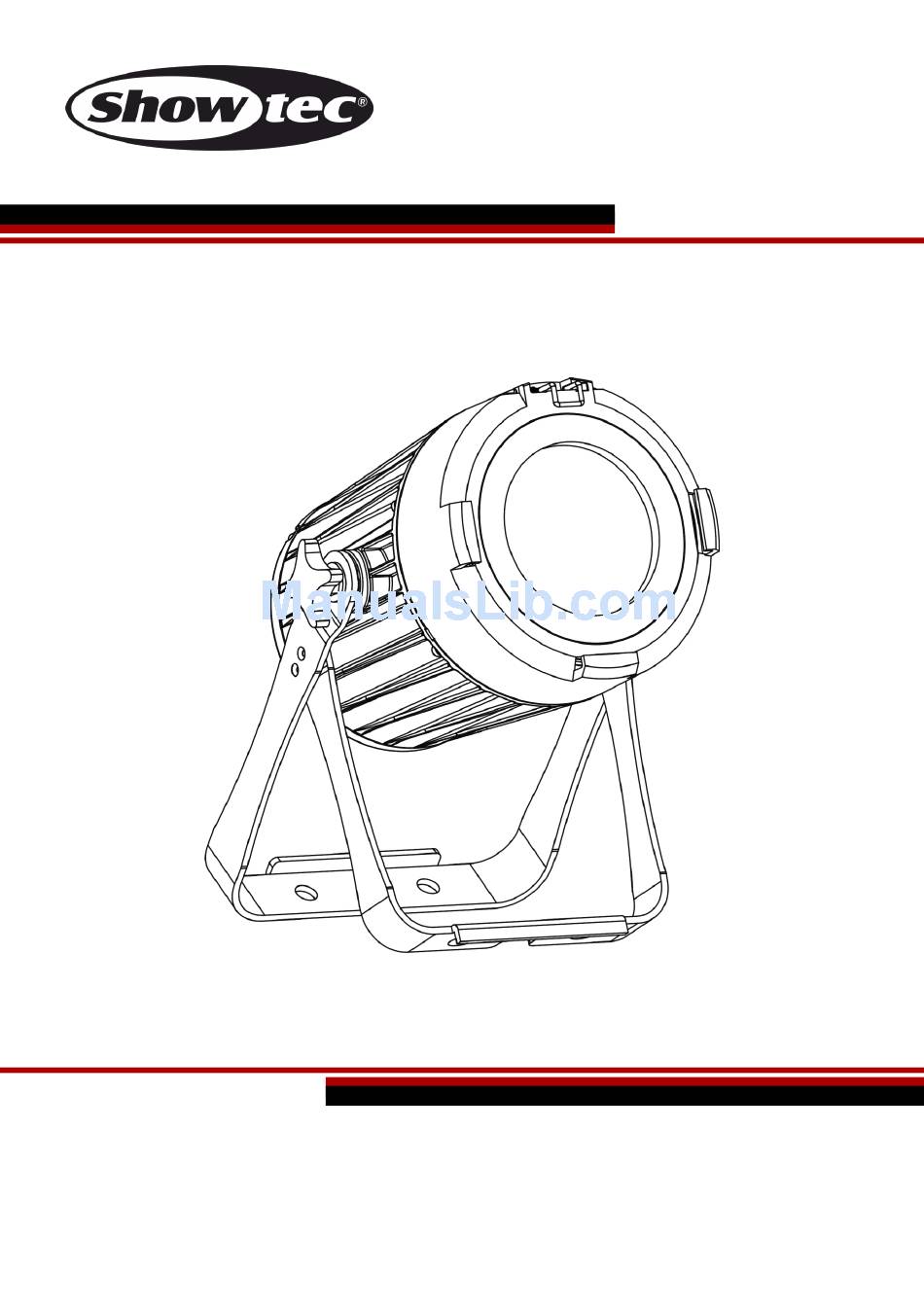

MANUAL
ENGLISH
Spectral PC 600Z IP
V1
Ordercode: 43551
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spectral PC 600Z IP and is the answer not in the manual?

Questions and answers

Related Manuals for SHOWTEC Spectral PC 600Z IP

Summary of Contents for SHOWTEC Spectral PC 600Z IP

  • Page 1 MANUAL ENGLISH Spectral PC 600Z IP Ordercode: 43551 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    Spectral PC 600Z IP Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Frontside..................................7 Backside ..................................

  • Page 3: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes:  Showtec Spectral PC 600Z IP  Safety cable ...
  • Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 5: Operating Determinations

    Spectral PC 600Z IP Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light output and the illuminated surface must be bigger than 1 meter.

  • Page 6: Connection With The Mains

    Spectral PC 600Z IP The Spectral can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug.

  • Page 7: Return Procedure

    Spectral PC 600Z IP Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

  • Page 8: Description Of The Device

    Spectral PC 600Z IP Description of the device Features The Spectral PC 600Z IP is a LED fixture with high output and great effects. • Input voltage: 100-240V AC, 60/50Hz • Power consumption: 85W • Light source: 1 x Multichip RGBW LED •...

  • Page 9: Backside

    10) Safety eye Installation Remove all packing materials from the Spectral PC 600Z IP. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.

  • Page 10: Control Modes

    Spectral PC 600Z IP Control Modes There are 4 modes: • Static Colors (Manual) • Built-in programs (Auto) • Master/Slave • DMX-512 (9CH, 9CH, 12CH, 17CH) One Spectral (Static Colors) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.

  • Page 11: Multiple Spectrals (Dmx Control)

    Spectral PC 600Z IP Multiple Spectrals (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Spectrals and other devices.

  • Page 12: Fixture Linking

    Spectral PC 600Z IP Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.

  • Page 13: Control Panel

    Spectral PC 600Z IP The Spectral PC 600Z IP can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD display MENU button C) ENTER button D) DOWN button UP button Fig.

  • Page 14: Menu Overview

    Spectral PC 600Z IP Menu Overview Ordercode: 43551...

  • Page 15: Main Menu Options

    Spectral PC 600Z IP Main Menu Options 01) Upon start-up, the display will interchangeably show two screens: 02) Press the ENTER button to open the main menu. The display will show: 03) Press the UP/DOWN buttons to toggle between the menus.

  • Page 16: Dmx Address

    Spectral PC 600Z IP 2. DMX Address With this menu you can set the device’s DMX starting address. 01) While in the main menu, press the UP/DOWN buttons to choose ADDRESS. 02) Press the ENTER button to open the menu.

  • Page 17: Personality (Dmx Channel Modes)

    Spectral PC 600Z IP 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to toggle between the 2 options: ZOOM 1 and ZOOM2. 6. Personality (DMX channel modes) With this menu, you can set the desired DMX channel mode (personality).

  • Page 18: How To Make Your Own Custom Program

    Spectral PC 600Z IP 14) Press the UP/DOWN buttons to set the duration of a scene. The adjustment range is between 0-255, from 0 to 255 seconds. 15) If you have chosen FADE, press the ENTER button to open the menu.

  • Page 19: Color

    Spectral PC 600Z IP 8.3. Color With this menu, you can adjust the color calibration functions. 01) While in SETTING menu, press the UP/DOWN buttons to choose COLOR. 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to toggle between the 3 options: RGBW, OFF, UC 04) If you have chosen RGBW, then RGB to WHITE is active.

  • Page 20: Calibration

    Spectral PC 600Z IP 10. Calibration With this menu, you can calibrate the device’s colors. 01) While in the main menu, press the UP/DOWN buttons to choose CALIB. C. 02) Press the ENTER button to open the menu. 03) Insert the password in order to access the menu. Press the buttons in the following order: UP,DOWN,UP,DOWN and press the ENTER button to confirm.

  • Page 21: Dmx Channels

    Spectral PC 600Z IP DMX Channels 9 channels (HSIC) Channel 1 – Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Hue Dimmer must be open 0-255 Gradual adjustment Hue, from 0-100% Channel 3 – Hue Fine...

  • Page 22: Channels (Ssp)

    Spectral PC 600Z IP 9 channels (SSP) Channel 1 – Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Red Dimmer must be open 0-255 Gradual adjustment Red, from 0-100% Channel 3 – Green Dimmer must be open...

  • Page 23: Channels (Tour)

    Spectral PC 600Z IP 12 channels (TOUR) Channel 1 – Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Red Dimmer must be open 0-255 Gradual adjustment Red, from 0-100% Channel 3 – Green Dimmer must be open...
  • Page 24 Spectral PC 600Z IP Channel 8 – Built-in programs/Custom programs Dimmer must be open 0-40 Not functional 41-50 Auto 1 51-60 Auto 2 61-70 Auto 3 71-80 Auto 4 81-90 Auto 5 91-100 Auto 6 101-110 Auto 7 111-120 Auto 8...

  • Page 25: Channels (Tr16)

    Spectral PC 600Z IP 17 channels (TR16) Channel 1 – Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Fine dimmer Dimmer must be open 0-255 Fine dimmer adjustment, from dark to brightest 0-100% Channel 3 – Red...
  • Page 26 Spectral PC 600Z IP 246-250 White 11: 7200K 251-255 White 12: 8000K Channel 12 – Strobe Dimmer must be open Not functional 10-99 Strobe flash frequency, from slow to fast 100-109 Not functional 110-179 Pulse strobe, from slow to fast...

  • Page 27: Maintenance

    04) The electric power supply cables must not show any damages or material fatigue. The Spectral PC 600Z IP requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth.
  • Page 28 Spectral PC 600Z IP Problem Probable cause(s) Solution • Check if power is switched on and No power to the fixture One or more cables are plugged in fixtures do not function at all • Return the device to your local Internal fuse blown Showtec dealer.

  • Page 29: Product Specifications

    Spectral PC 600Z IP Product Specifications Model: Showtec Spectral PC 600Z IP Input voltage: 100-240V AC, 60/50Hz Power consumption: 85W (full output) DMX linking: 30pcs Dimensions: 243 x 240 x 300 mm (LxWxH) Weight: 5,8 kg Operating and Programming: Signal pin OUT:...

  • Page 30: Dimensions

    Spectral PC 600Z IP Dimensions Ordercode: 43551...
  • Page 31 Spectral PC 600Z IP Ordercode: 43551...
  • Page 32 ©2016 Showtec...
