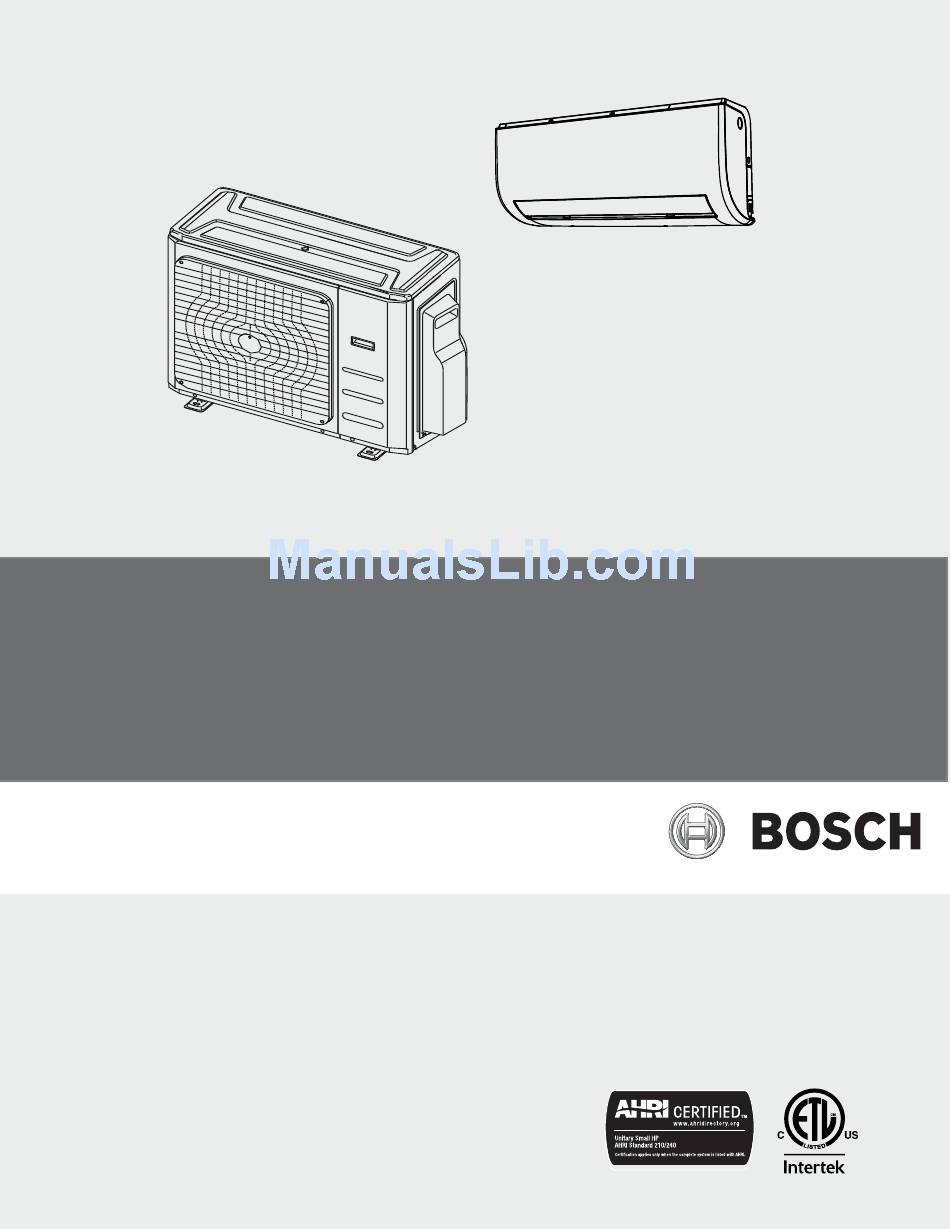

- Page 1 Bosch Inverter One-Two/One-Three/One-Four/One-Five Split-Type Air Conditioner / Heat Pump Climate 5000 AA Series Installation Manual...
- Page 2 2 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual Data subject to change 01.2017 | Bosch Thermotechnology Corp.
-
Page 3: Table Of Contents
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 3 Table of Contents 1 Key to symbols and safety instructions 1.2 Safety 2 Components 3 Installation Overview / Order 4 Installation Diagram 5 Specifi... -
Page 4: Key To Symbols And Safety Instructions
4 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual 1 Key to symbols and safety instructions 1.2 Safety Please read safety precautions before installation 1.1 Key to symbols Incorrect installation due to ignoring instructions can cause serious damage or injury. -
Page 5: Components
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 5 2 Components The air conditioning / heat pump system installation requires the following components. Use all of the installation parts and components to install the air conditioner. -
Page 6: Installation Overview / Order
6 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual 3 Installation Overview / Order Install the outdoor unit Connect the refrigerant pipes Connect the wires (Page 9) (Page 12) (Page 14) Perform a test run... -
Page 7: Installation Diagram
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 7 4 Installation Diagram More than 5.9in Figure 2 NOTICE: CAUTION: This illustration is for demonstration purposes only. To prevent wall damage, use a stud finder to locate studs. -
Page 8: Specifi Cations
8 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual 5 Specifi cations Number of units that can be used together Connected units 1-5 units Compressor stop/start frequency Stop time 3 min or more voltage fl... -
Page 9: Outdoor Unit Installation
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 9 6 Outdoor unit installation Install the indoor and outdoor units, cables and wires at least 3ft from televisions or radios to prevent static or image distortion. Depending on the radio waves, a 3ft distance may not be enough to eliminate all interference. - Page 10 1 0 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual Split type outdoor unit mounting dimensions Row of series installation The relations between H, A and L are as follows: Mounting Dimensions Dimensions [in.] [in.
- Page 11 Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 11 Drain joint installation Connecting a 24k Btuh Indoor Unit Before bolting the outdoor unit in place, you must install the drain joint at the bottom A 24K Btuh indoor unit can only be connected to an A system connection point.
-
Page 12: Refrigerant Piping Connection
1 2 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual 7 Refrigerant piping connection Make sure that the pipe is cut at a perfect 90° angle. Refer to Fig.12 for cut examples. WARNING: ... - Page 13 Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 13 Step 3: Flare pipe ends Piping extension beyond fl are form Proper fl aring is essential to achieve an airtight seal. Outer Max.
- Page 14 1 4 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual CAUTION: CAUTION: Ensure to wrap insulation around the piping. Direct contact Check to make sure there is no refrigerant leak after with the bare piping may result in burns or frostbite.
-
Page 15: Wiring
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 15 8 Wiring 8.1 Outdoor unit wiring WARNING: WARNING: Before performing any electrical or wiring work, turn off the Be sure to disconnect the power supply before working on main power to the system. -
Page 16: Wiring Diagrams
1 6 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual 8.2 Wiring Diagrams CAUTION: Connect the connective cables to the terminals, as identified, with their matching numbers on the terminal block of the indoor and outdoor units. - Page 17 Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 17 One-two model One-three model Magnetic ring ( not supplied, optional part) (Used to hitch to the connective cable of indoor and outdoor units after installation.) Figure 21 Bosch Thermotechnology Corp.
- Page 18 1 8 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual One-four model One-five model Magnetic ring ( not supplied, optional part) (Used to hitch to the connective cable of indoor and outdoor units after installation.)
-
Page 19: Air Evacuation
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 19 9 Air evacuation Wait for approximately 10 to 15 minutes, then check that there has been no change in system pressure. It is recommended to use a micron gauge; check to make sure the system is still below 500 microns. - Page 20 2 0 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual 9.2 Adding refrigerant CAUTION: Refrigerant charging must be performed after wiring, vacuuming, and the leak testing. DO NOT exceed the maximum allowable quantity of refrigerant or overcharge the system.
-
Page 21: Safety And Leakage Check
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 21 9.3 Safety And Leakage Check Electrical safety check Perform the electrical safety check after completing installation. Cover the following areas: Insulated resistance The insulated resistance must be more than 2MΩ. -
Page 22: Test Run
2 2 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual 10 Test run If the unit malfunctions or does not operate according to your expectations, please refer to the Troubleshooting section of the Owner’s 10.1 Before Test Run... -
Page 23: Automatic Wiring/Piping Correction Function
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 23 11 Automatic Wiring/Piping Correction Function Climate 5000 models now feature automatic correction of wiring/piping errors. Press the "check switch" on the outdoor unit PCB board for 5 seconds until the LED displays "CE”, indicating that this function is working. -
Page 24: Features And Operation
2 4 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual 12 Features and operation The air conditioner turns to FAN ONLY mode from COOL or HEAT mode. When the indoor temperature reaches the set temperature setting, the compressor 12.1 Protection of the air conditioner... -
Page 25: Troubleshooting
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 25 13 Troubleshooting CAUTION: If ANY of the following conditions occurs, turn off unit immediately! The power cord is damaged or abnormally warm ... - Page 26 2 6 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual 13.2 Troubleshooting When troubles occur, please check the following points before contacting a repair company. Problem Possible Causes Solution Temperature setting may be higher than ambient room...
-
Page 27: Disposal Guidelines
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 27 14 Disposal guidelines Components Many parts in the Air Conditioner can be fully recycled in the end of the product life. Contact your city authorities for information about the disposal of recyclable products. - Page 28 2 8 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual Data subject to change 01.2017 | Bosch Thermotechnology Corp.
-
Page 29: Installation Manual Bosch Climate 5000 Aa Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump
Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 29 Bosch Thermotechnology Corp. | 01.2017 Data subject to change... - Page 30 3 0 | Bosch Climate 5000 AA Series Inverter Multi Split-Type Air Conditioner/ Heat Pump Installation Manual Data subject to change 01.2017 | Bosch Thermotechnology Corp.
- Page 31 Installation Manual Bosch Climate 5000 AA Series Inverter Multi Split-Type Ductless Air Conditioner / Heat Pump | 31 Bosch Thermotechnology Corp. | 01.2017 Data subject to change...
- Page 32 United States and Canada Bosch Thermotechnology Corp. 50 Wentworth Avenue Londonderry, NH 03053 Tel: 866-642-3198 Fax: 954-776-5529 www.boschheatingandcooling.com BTC 770001104 C / 01.2017...
