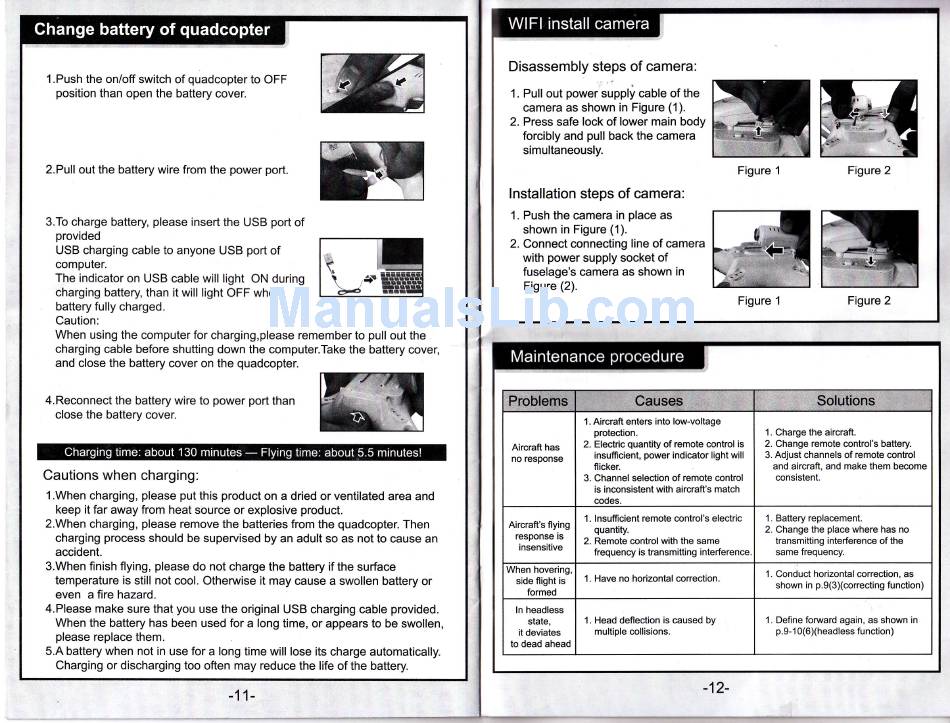

'l.Push the on/off switch of quadcopter to OFF
position than oper the battery cover.
2.Pull out
the battery wire from the power
port.
3.To
charge battery, please insert
the USB port of
provided
USB charging cable to anyone USB port of
computer.
The indicator on USB cable will
light
ON during
charging battery, than
it
will light OFF when
battery fully charged.
Caution:
When using the computer for charging,please remember to pull out the
charging
cable before shutting down the computer.Take the battery cover,
and close
the battery cover on the quadcopter.
4.Reconnect the battery wire to power port than
close the battery cover.
Cautions when charging:
1.When
charging, please put this product on
a dried or
ventilated area
and
keep
it
far away from heat source or explosive product.
2.When charging, please remove the batteries from the quadcopter. Then
charging process should be
supervised by an adult so as
not
to cause
an
accident.
3.When finish
flying, please do not charge the battery
if the surface
temperature
is
still not cool.
Othenruise it may cause a swollen battery or
even
a
fire hazard.
4.Please make sure that you use the original USB charging cable provided.
When the battery has beea used for a long time, or appears to be swollen,
please replace them.
5.A battery when not in use for a long time will lose its charge automatically.
Charging or discharging too often may reduce the life of the
battery.
,
Disassembly steps of camera:
1. Pull
out power supply cable
of
the
camera as shown
in Figure
(1).
2. Press safe lock of lower main body
forcibly and pull back the camera
simultaneously.
lnstallation steps of camera:
1.
Push the camera in place as
shown
in Figure (1).
2. Connect connecting line of camera
with power supply socket of
fuselage's camera as shown
in
Figure (2).
Figure 2
MM
Figure
1
Figure
2
Figure
1
1.
Alrcraft enters into low-voltage
protection.
2. Electric quantity of remote control is
insufficient, power indicator light will
flicker.
3. Channel selection of remote control
is inconsistent
with aircraft's
match
codes.
1. Charge the aircraft.
2. Change remote control's battery.
3.
Adjust channels of remote control
and aircraft,
and make them
become
consistent.
1.
lnsufiicient
remote control's
electric
quantity.
2. Remote control with the same
frequency
is
transmitting interference
1. Battery replacement.
2. Change
the place where
has no
transmitting interference of the
same frequency.
When
hovering,
side flight is
formed
1. Have no horizontal correction.
Conduct horizontal correction, as
shown in p.9(3)(correcting function)
1. Head deflection
is
caused by
multiple collisions.
1. Define forward again, as shown
in
p.9-1 0(6)(headless function)
