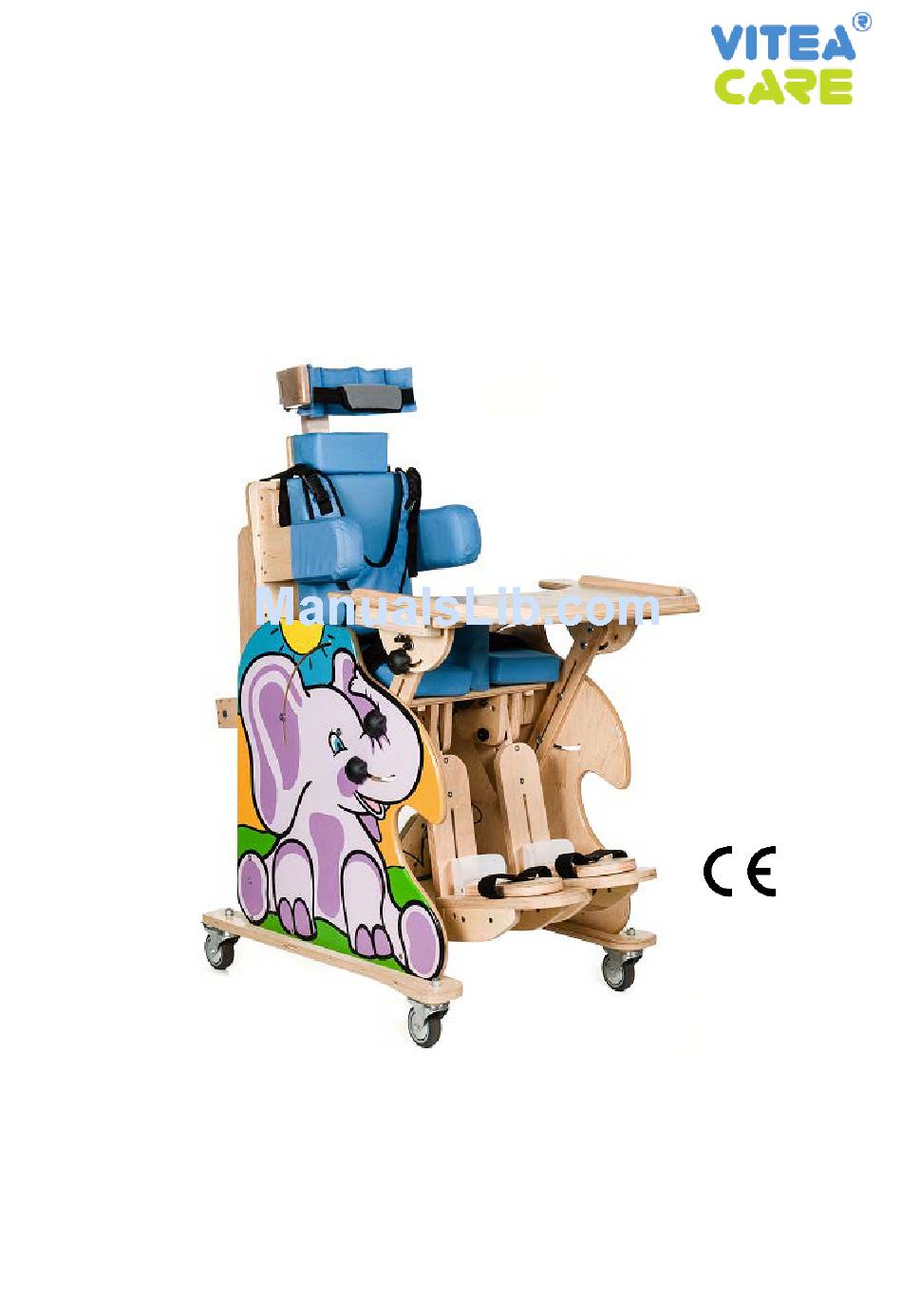

- Page 1 Instructions for Use Spring Multifunctional rehabilitative device Edition MG 05.2016...
-
Page 2: Table Of Contents
Contents Introduction ............................. 3 Description of the product ....................... 3 Purpose ............................5 Contraindications ..........................5 Use ..............................5 Safety of use ............................ 6 Service and maintenance ......................... 9 Change of position ........................9 7.1. Transporting and moving the device ..................13 7.2. -
Page 3: Introduction
1. Introduction Thank you very much for choosing our product. We strongly believe that this device will meet your expectations. We strongly recommend reading this document prior to the first use of the device. This user manual is submitted in order to present the essential information related with the safe use of this product. - Page 4 4. Seat (smooth and electric pilot controlled adjustment of the inclination angle from -15° to +90°, manual movement to the front and to the back). 5. Footrest with smooth height regulation, adjustment of the footrest inclination angle from 0° (default horizontal position) to 90° (default vertical position - the position of the device immediately after removing from the package).
-
Page 5: Purpose
F – footrest angle regulation (from 0° to 90°, gradual regulation, seven steps with 15° each) lock G – regulation of the abductor wedge H – regulation of foot support I – regulation of footrest's height J – regulation of neck supporting pillow height K –... -
Page 6: Safety Of Use
then tighten properly the two screw clamps (M) to lock the movement of the seat and ensure its proper position. Adjust the dimension of the device to meet the individual need of the child. In order to do so: a. make sure that the waistcoat, as well as belts supporting the pelvis, thighs and feet are unlocked, b. - Page 7 are safely placed on the device, and all belts stabilizing the body are properly placed, fastened and secured. 5) Do not leave the child unattended. Caretakers are held responsible for child's safety. 6) Leaving the child without fastened belts may pose a threat to child's health and life. 7) The system of the seat and the belts cannot replace a proper supervision of a caretaker.
- Page 8 1) The scope of spring functioning within the following temperature range: between -30ºC and + 80º C, 2) Protect the gas spring against soiling in order to ensure that it retain its functional properties, 3) Prevent contact between gas spring and any kind of fluids.
-
Page 9: Service And Maintenance
The manufacturer shall not be held responsible for damages of property and injuries of people, which result from improper usage of the device (usage noncompliant with safety principles). The manufacturer shall not be held responsible for property damage / personal injuries resulting from using the device against guidelines, recommendations included in this user manual or in other documents related with the device. - Page 10 The sitting position (seat on the level 0°, backrest and footrests vertically 90°) is an initial position, and the device should be in this particular position after being taken out from the package. In order to prepare the device for changing the position, it is essential to: •...
- Page 11 Lying (horizontal) positions is an initial position to assume the following positions: • STANDING POSITION, • TRENDELENBURG POSITION. STANDING POSITION Figure 6. Before verticalization, it is crucial to make sure that all extremities of the patient (upper limbs in particular) are safely placed, whereas all the belts stabilizing the body are properly set, fastened and secured.
- Page 12 TRENDELENBURG POSITION Figure 7. In order to set the Trendelenburg position: • Make sure that the device is in lying position (horizontal - Fig. 5), Make sure that all extremities of the patient are safely placed. • Then press and hold the button (P) responsible for adjusting the position of the seat, and at the same time apply a little bit of force to move the seat downwards (-15°...
-
Page 13: Transporting And Moving The Device
In order to set the "ZERO GRAVITY" positions, please make sure that the device is in the Trendelenburg position (-15° - Figure 7), and then press and hold the button (P) responsible for adjusting the backrest, until you reach the desired position (+15° from 0° horizontal position). Then unlock the footrest blockade (F), readjust the footrests until they reach the desired angle +15°... -
Page 14: Maintenance And Control Of The Technical Condition
Figure 9. 7.3. Maintenance and control of the technical condition Frequency Control area Remarks Before first use Control technical Check whether all elements of condition of all elements in the device have no visible package. mechanical damage. Before every use Checking of parking locks Make sure that all blockades are functioning properly. - Page 15 Maintenance • The construction of the device has to be wipe with a damp cloth without any detergents or other similar agents. • Remove dirt or debris from mobile elements of the device (wheels, screws, clamp locks) on daily basis. •...
-
Page 16: Technical Parameters
8. Technical parameters: Permitted user weight 35kg Life of the product 5 years from the date of production 38-52 Height of the seat (including the headrest) (cm) 30 - 37 Depth of the seat (cm) 23 - 39 Height of footrests (length of the lower leg) (cm) 71 - 92 Height between the base and the armrest (cm) Width of the seat (hip width) (cm) -
Page 17: Contact Details
Protect from moisture Protect from sunlight Maximum permitted user weight Interior use The maximum safe angle of the incline Risk of trapping fingers Product intended for vehicle transport. Product is not intended to be used as a seat during transportation by means of a motor vehicle.
