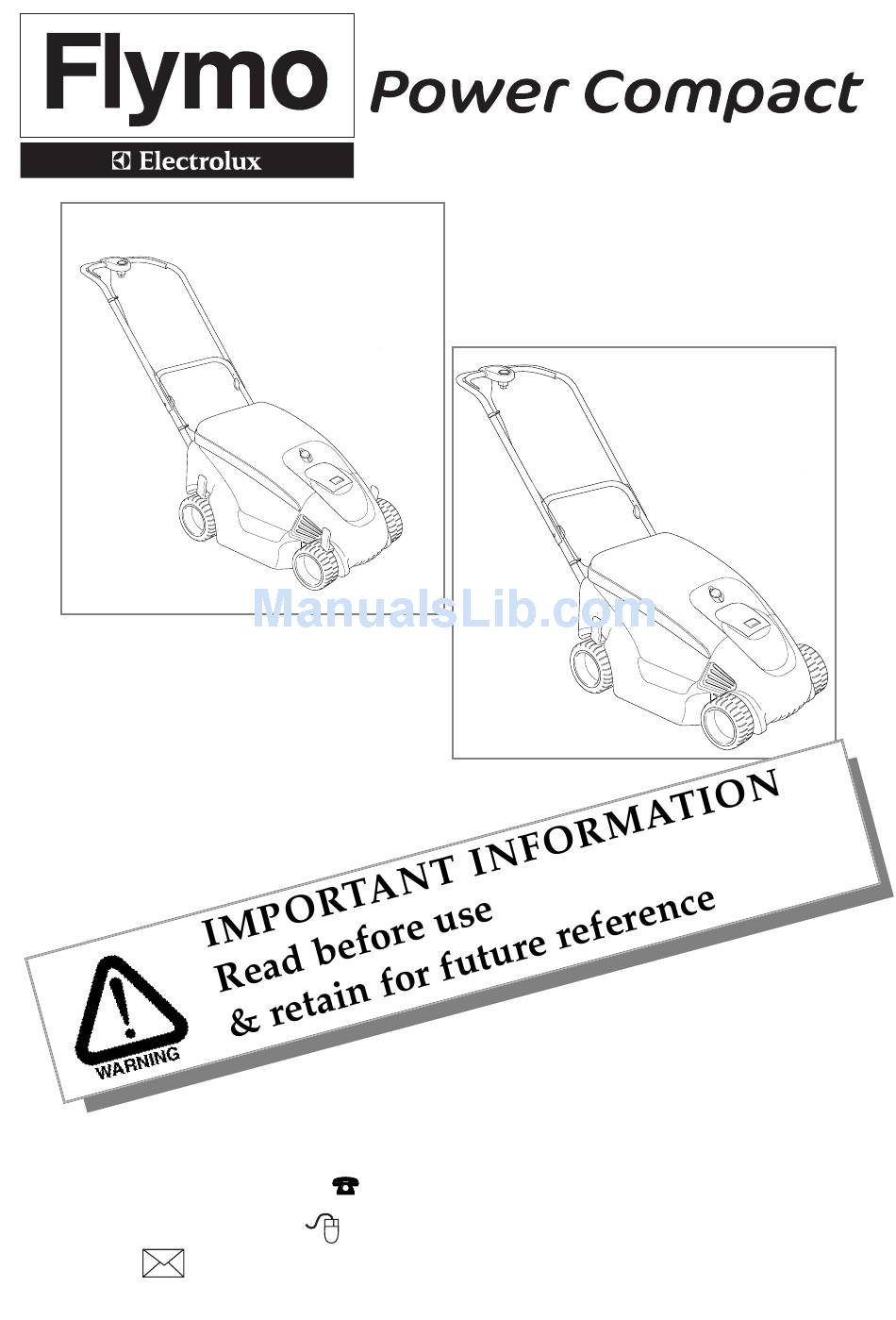

- Page 1 For all customer enquiries or for replacement parts, contact:- 01325 300303 www.flymo.com eop.customer.services@electrolux.co.uk...
-
Page 2: Carton Contents
IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new Flymo product. IF ANY PARTS ARE MISSING CONTACT:- Electrolux Outdoor Products Customer Service Department direct Telephone : 01325 300303, Fax : 01325 318193... - Page 3 Terminal which is marked with the let- IMPORTANT ter 'L' or coloured RED. • Flymo connectors are suitable for use with 2 core It is important that the outer sheath is clamped cor- cable only. Under no circumstances should these rectly into the 3-pin plug.
-
Page 4: Adjusting The Cutting Height
Assembly Instructions Assembly of Lower Handles to Deck 1. Insert lower handle into holes in the deck and push into place (A). 2. Release the grassbox catch and lift the grassbox lid (B). 3. Rest the grassbox lid against the lower han- dle and remove the grassbox. -
Page 5: Cut Out Device
Removing, Emptying and Refitting the Grassbox Grassbox Full Indicator • IMPORTANT- The machine must be switched on for the grassbox full indicator to operate grassbox full When the ball reaches the top of the indicator window, it is time to empty the grassbox. (J) grassbox empty When the ball is NOT visible in the indicator window, grass is being collected. -
Page 6: Removing And Fitting The Blade And Fan
How to Mow Start mowing the edge of the lawn nearest to the power point so the cable is laid out on the lawn you have already cut. (S) Mow twice a week during the growing season, your lawn will suffer if more than a third of its length is cut at one time and this may also result in poor collection. -
Page 7: Fault Finding Hints
Prepacked spares are available from most Electrolux Yellow Pages. Outdoor Products stockists. To obtain service on your Flymo product simply telephone or Your product is uniquely identified by a silver and black visit your local Service Centre. product rating label... -
Page 8: Environmental Information
Other Directives:-..... 98/37/EEC, 89/336/EEC, 73/23/EEC Level................F & applicable standards:-. EN60555-2:1987, EN60555-3:1987, Value................G EN55014:1993, EN55014:1995, EN836:1997, IEC335-1:1991, IEC335-2- Weight................. H 77:1996 PC 330 PC 400 33 cm 40 cm 4,400 RPM 4,200 RPM 96 dB (A) 95 dB (A)
