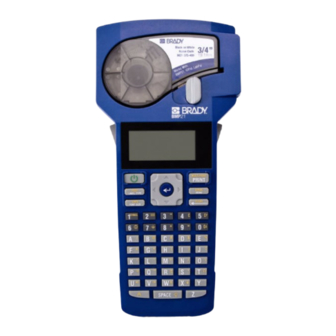

Brady BMP21 Quick Start Manual

Register Your Printer
Register your printer online at www.bradycorp.com/register.
Power Up Your Printer
Batteries

Quick Start

1. Open the battery compartment.
2. Insert six AA alkaline batteries.
3. Close the battery compartment.
Guide
Instructies • Instruções
Instrucciones • Instruktionen
A/C Power
Plug in optional Power Supply BMP21-AC.
Display Screen
www.bradyid.com
Keypad
Label Selection Chart
Option Key Description
Label Type Includes: Banner Landscape,
Wire, Terminal Block, Patch Panel, Application
Fixed Length, Banner Portrait. Smooth Surfaces
Menu Includes: Symbols, International Textured Surface
Characters, Barcode, File,
Cable and Wire
Language and Units.
High Textured Surface
Font Size Includes: Auto, 6, 9, 14, 20, 28, 40
Terminal Blocks
(Bold available in each size.)
Patch Panel
Function The FUNCTION key provides
access to the yellow designated
General ID
menu options on the keyboard.
Creating Wire Labels
Backlight FUNCTION + SPACE key.
1. Press Power
Barcode In Menu or FUNCTION + 2.
2. Press Label Type.
3. Select Wire and press Enter
CAPS Lock FUNCTION + FONT SIZE.
4. Select .75" (16-10AWG) and press Enter
Clear FUNCTION + CLEAR key.
5. Press Font Size, select 6pt. and press Enter
(Clears whole legend.)
6. Type: 12345 and press Print.
Delete Deletes text and exits menu
7. Press the side buttons to Cut.
screens.
Serialization
Enter The Enter key works to accept
choices with menus and to add
1. Start with a clear display.
additional lines to text.
2. Press Label Type.
Feed FUNCTION + LABEL TYPE.
3. Select Banner Landscape and press Enter
International In Menu or FUNCTION + 6.
4. Type: 12345, press
by 01.
Multi-Print FUNCTION + PRINT.
5. Arrow down to End and right arrow until screen reads
12347 or type 347.
Serial FUNCTION + MENU (Serializes
6. Arrow down to Copies and right arrow until screen
based on cursor location. Allows
reads 02 or type 2 and press Enter
for increment and copies.)
7. Press Print.
Symbols In Menu or FUNCTION +1.
8. Either Cut or Print the 2nd thru 6th label.
12345
Creating Terminal Block Labels*
1. Start with a clear display.
Outdoor Perma- Self Lam
2. Press Label Type.
Nylon Vinyl Sleeve Polyester Vinyl
X X X
3. Select Terminal Block and press Enter
X X
4. Right arrow until screen reads Spacing = .2". (Right
X X X arrow to flashing cursor and type desired spacing).
X 5. Arrow down to Serial and right arrow until the screen
reads On.
X
6. Arrow down to # of Terminations and right arrow until
X
screen reads 3, or type 3.
X X X
7. Arrow down to Rotation and right arrow until the
picture displays a vertical legend.
8. Press Enter .
9. Type E000 and press Print.
.
.
.
*Use Brady part numbers M21-500-499 or M21-375-499.
Fixed Length Label with Auto Size
1. Start with a clear display.
2. Press Label Type.
3. Select Fixed Length and press Enter
4. Select Fixed: 2.0" and press Enter
.
5. Press Font Size.
, press Serial and Increment
6. Select Auto.
7. Type 12345, press Enter
8. Press Print.
.
Changing Label Cartridge
1. Unlock Lever and push Release Button (on back).
2. Remove old cartridge.
12345 12346 12346 12347 12347
3. Insert new cartridge.
4. Lock lever.
Technical Assistance
Thank you for purchasing the BMP21 handheld printer from
the Brady Corporation.
For technical assistance, please contact one of the following
.
system support teams at:
• 1-888-272-3946 (USA)
• 1-800-263-6719 (Canada)
• www.bradyeurope.com/services
• 44 1295 228 205 (UK)
• 01 800 112 7239 (Mexico)
• 55 11 3604 7729 (Brazil)
• 001-866-748-4424 (Latin America)
Please have your serial number (located inside the cartridge
bay) available when contacting our representatives.
UNITED STATES
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
INDUSTRY CANADA
.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numerique de la classe B respecte toutes les exigences du
Reglement sur le Materiel Brouilleur du Canada.
and type WM12.
Batteries Directive 2006/66/EC
Users of batteries must not dispose of batteries as unsorted municipal waste.
This Directive determines the framework for the return and recycling of used
batteries and accumulators that are to be collected separately and recycled at
end of life. Please dispose of batteries according to your local
(Europe)
regulations.
