Panasonic SA-HT940PC Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Home Theater System
  5. SA-HT940PC
  6. Service manual

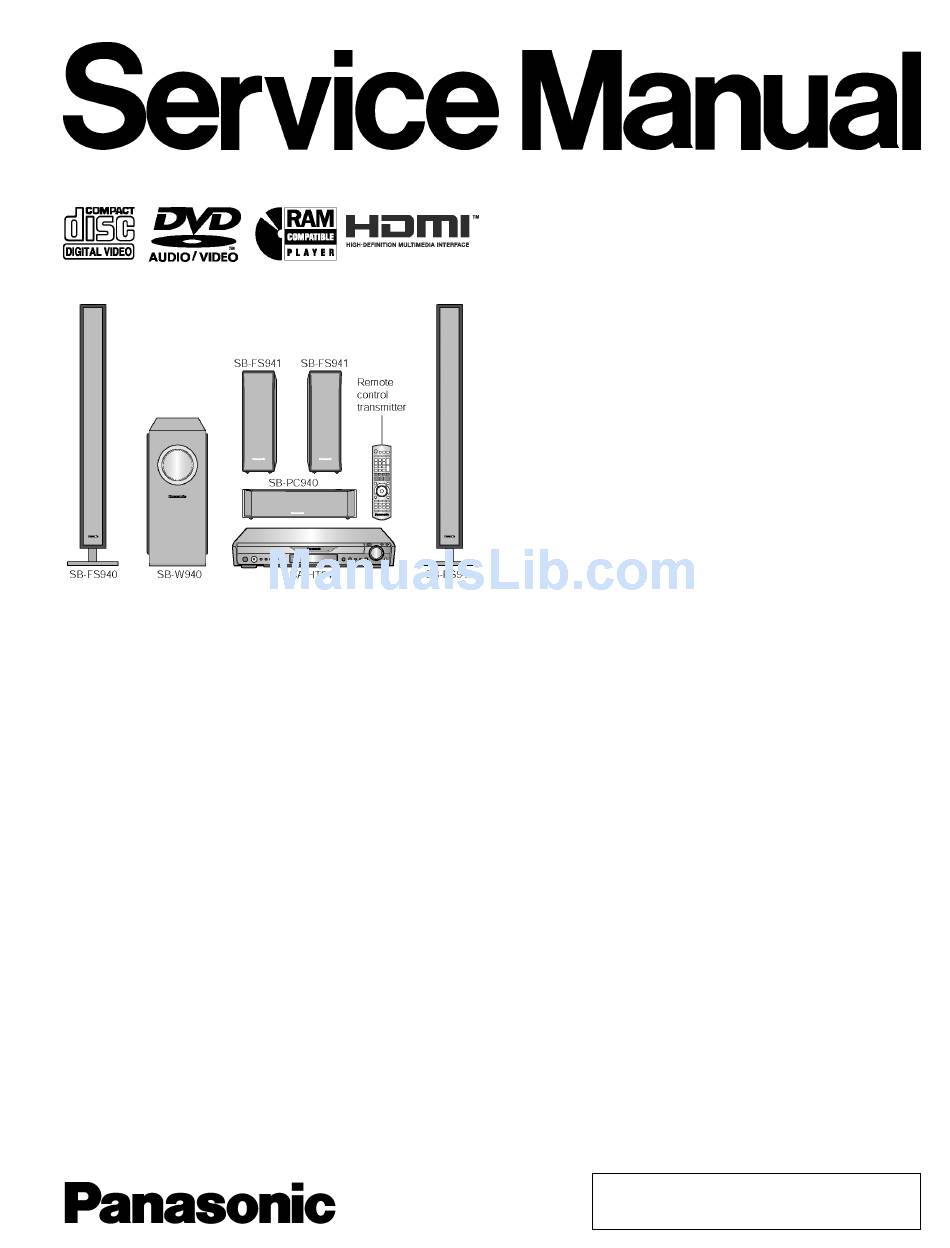

Panasonic SA-HT940PC Service Manual

Hide thumbs Also See for SA-HT940PC:
Table of Contents

Advertisement

Quick Links

Specifications

lGeneral
Power Source:
Power consumption:
Dimensions (W×H×D):
Mass:
lAmplifier section
RMS Output Power: Dolby Digital Mode
lTotal RMS Dolby Digital
mode Power:
At 1kHz and total harmonic of 10%
lFront:
lCenter:
lSurround:
At 100Hz and total harmonic of 10%
lActive subwoofers:
FTC Output Power: Dolby Digital Mode:
lTotal FTC Dolby Digital mode Power:
At 120Hz-20kHz and total harmonic of 1%
lFront:
AC 120V, 60Hz
150 W
430×70×439.2 mm
(16-15/16"×2-3/4"×17-19/64")
5 kg (11.02Ibs)
1200 W
190 W/ Channel (8Ω)
320 W/ Channel (4Ω)
90 W/ Channel (4Ω)
320 W/ Channel (4Ω)
860 W
120 W/ Channel (8Ω)
DVD Home Theater Sound System
SA-HT940P
SA-HT940PC
Colour
(S).......................Silver Type
lCenter:
lSurround:
At 45Hz-120Hz and total harmonic of 1%
lSubwoofer:
lFM tuner section
Preset Memory::
Frequency Range:
Sensitivity:
S/N 26dB
Antenna Terminals:
lAM tuner section
Frequency Range:
AM Sensitivity S/N 20dB at
1000kHz:
lPhone Jack:
Terminal:
lFront M. Port:
© 2006 Panasonic AVC Networks Singapore Pte.
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER NO.MD0603057C1
A6
250 W/ Channel (4Ω)
60 W/ Channel (4Ω)
250 W/ Channel (4Ω)
FM 15 stations
AM/ MW 15 stations
87.9-107.9MHz
(200kHz in step)
87.5-108.0MHz
(100kHz in step)
2.5µV (IHF)
2.2µV
75Ω (unbalanced)
520-1710kHz (10kHz in step)
560µV/m
Stereo 3.5 mm (1/8") jack
