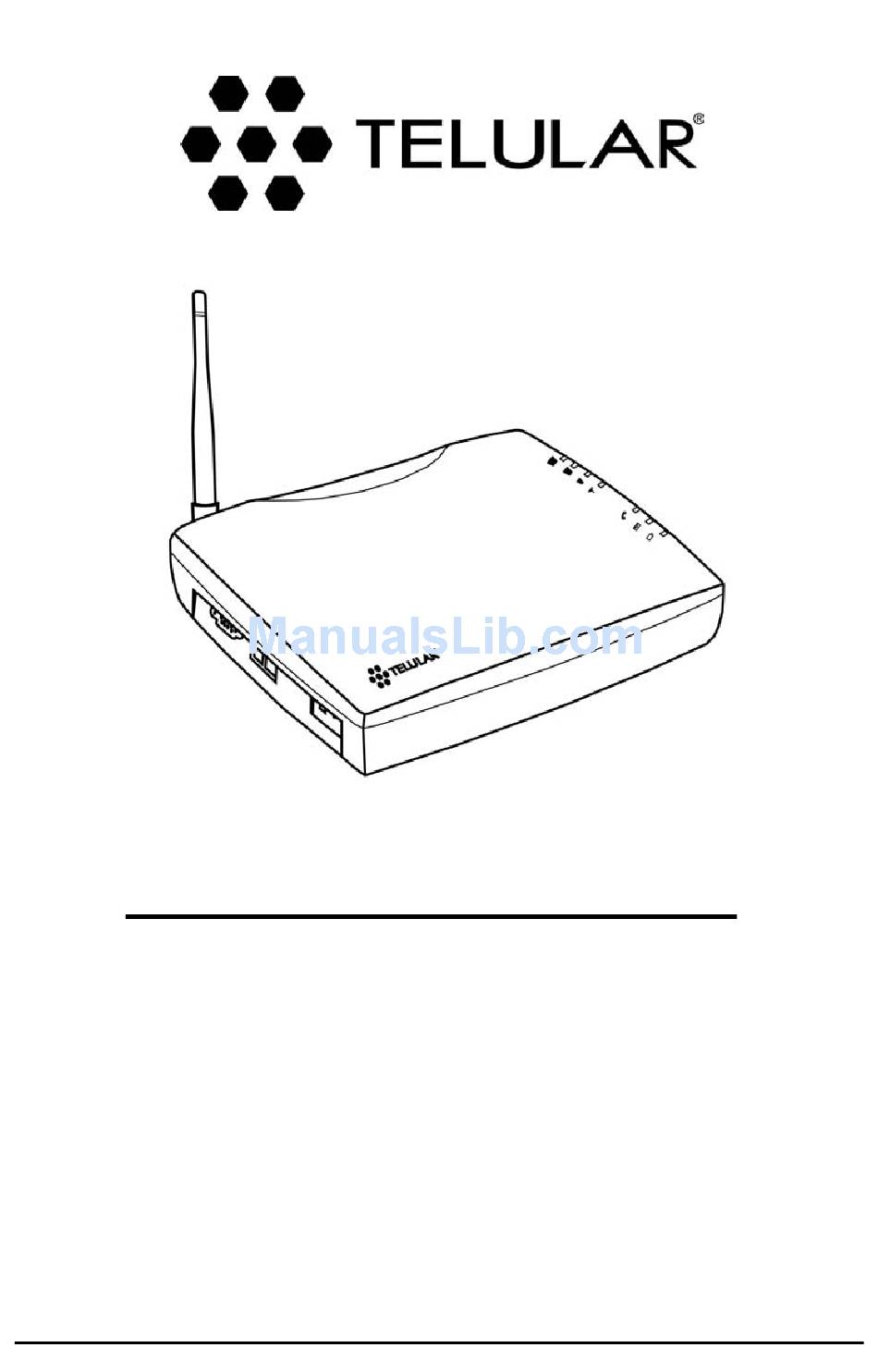

- Page 1 SX5e GSM ® HONECELL • Fixed Wireless Terminal • Fixed Wireless Terminal with Fax • Fixed Wireless PBX Terminal • Fixed Wireless Modem 900/1800 MH GSM (D 1900 MH ECHNICAL ANUAL 10/21/02 Part Number 56023601...
- Page 2 QUICK CONNECTION GUIDE SX5e Fixed Wireless Terminal SX5e Fixed Wireless Terminal with Optional Analog Fax Phonecell SX5e GSM Technical Manual ®...
- Page 3 Extension Side SX5e Fixed Wireless PBX Terminal (attached to Extension side of PBX) Trunk Side SX5e Fixed Wireless PBX Terminal (attached to Trunk side of PBX) Phonecell SX5e GSM Technical Manual ®...
- Page 4 SX5e Fixed Wireless Modem Phonecell SX5e GSM Technical Manual ®...
-
Page 5: Important Notices
PRODUCTS ("Product") ® These Terms and Conditions are a legal contract between you and Telular Corporation for the title to and use of the Product. BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS AND CONDITIONS INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND INDEMNIFICATION PROVISIONS BELOW. -
Page 6: Table Of Contents
TABLE OF CONTENTS QUICK CONNECTION GUIDE..................ii IMPORTANT NOTICES....................v Technical Support.......................v SETUP..........................1 Install the SIM Card ....................1 Emergency Batteries....................2 SX5e Location and Installation ..................3 Wall Mounting......................3 Connect the SX5e to AC Power.................4 Attach a Telephone to the SX5e ................4 GETTING TO KNOW YOUR SX5e ................5 LED Status Indicators ....................5 Important Dial Tones ....................6 CALL FUNCTIONS ......................7... -
Page 7: Setup
SETUP Install the SIM Card The SX5e requires a Subscriber Identity Module (SIM) for normal operation. The service provider supplies the SIM card, which carries the account information needed to operate the SX5e. If you don’t have a SIM card, contact your service provider. The SIM compartment is on the back of the SX5e - see Figure 1. -
Page 8: Emergency Batteries
Emergency Batteries Install Batteries 1. Remove the battery access door screw located on the bottom of the unit - see Figure 3. 2. Press the battery access door tabs and remove the battery access door. 3. Install 4 “AA” alkaline batteries (not supplied) - see Figure 3. 4. -
Page 9: Sx5E Location And Installation
SX5e Location and Installation The SX5e comes with a standard spike antenna (TNC) - see Figure 5. For optimal signal strength, choose a location that is above ground and as close to windows (or exterior walls) as possible - see Figure 6. Cellular signal strength is displayed by the Received Signal Strength Indicator (RSSI) LED on the unit - See the How to Use the LED Status Indicators section of this manual. -
Page 10: Connect The Sx5E To Ac Power
Connect the SX5e to AC Power 1. A protective earth (safety ground) terminal (screw) marked with a protective earth symbol is provided on the back of the SX5e - Protective earth see Figure 9a. Connect (safety ground) this terminal to a good terminal screw earth ground (i.e., a cold water pipe) by means of... -
Page 11: Getting To Know Your Sx5E
GETTING TO KNOW YOUR SX5e LED Status Indicators The LED indicators are activated when the SX5e is powered on. The following tables describe the modes and operation of the indicators. NOTE: If you are getting no service or limited service, contact your service provider for more information. RSSI 3 RSSI 2 RSSI 1... -
Page 12: Important Dial Tones
Hook Indicator LED Color Activity Description Green Flashing (with ringer) Incoming call Green Continuous FWT is off hook Green Fast Flashing Processing data call Green Slow Flashing Call on hold Message Indicator LED Color Activity Description Green Slow Flashing New voice mail or text message AC Power/Battery Indicator LED Color Activity... -
Page 13: Call Functions
CALL FUNCTIONS Making Calls 1. Pick up the telephone handset (the phone is now “off-hook”). 2. Listen for dial tone. If service is not available, a No-Service tone is produced. Hang-up the phone and try again. If the No-Service tone continues, contact your service provider to verify that cellular service is available. -
Page 14: Sx5E User Features
The SX5e supports the GSM AT command set defined in GSM 07.05 for Short Message Service (SMS). The SX5 Data Kit contains the AT command set and a data cable. Contact your service provider or the nearest Telular dealer for more information on the Data Kit. Message Indication Clearing The Message LED will flash until you remove the message notification from the SX5e. -
Page 15: Sim Settings
Pulse Dial Option Press: # <pulse-dial> # 0 = disable Pulse Dialing capability (default) 1 = enable Pulse Dialing capability Auto Dial The SX5e will recognize frequently called phone numbers and send them without waiting for the Dial Delay. Up to 50 numbers that have been successfully called at least twice will be stored when this feature is enabled. -
Page 16: Supplementary Service Features (Network Dependent)
SUPPLEMENTARY SERVICE FEATURES (NETWORK DEPENDENT) The SX5e is compatible with a variety of supplementary services. Contact your service provider for availability and dialing instructions. Different commands and information may be necessary to set up supplementary services. Commands • Register: Input information necessary for the operation of a service. In the case of call forwarding, for example, this will include the number to which incoming calls will be for- warded. -
Page 17: Connected Line Identification Presentation
Connected Line Identification Presentation (COLP) Allows you to view the identification information for the number you call. Register: 76 # <Flash> Activate: 76 # <Flash> Deactivate: # 76 # <Flash> Erase: # # 76 # <Flash> Connected Line Identification Restriction (COLR) Prevents the display of your identification information to the person calling you. -
Page 18: Call Barring
Call Barring Bar All Outgoing Calls Does not allow any outgoing calls, or just those associated with a specific teleservice, from the SX5e. Activate: Password TeleService # <Flash> Deactivate: # 33 Password TeleService # <Flash> Bar Outgoing International Calls Does not allow any outgoing calls, or just those associated with a specific teleservice, to subscribers of networks outside of the country you are in when you make the calls. -
Page 19: Multiparty Call Features
Multiparty Call Features * Multiparty call features are handled within an active call. These features are network-dependent. Contact your service provider for availability. • To release all held calls or set User Determined User Busy for a waiting call, press: 0 <Flash> •... -
Page 20: Data Features
DATA FEATURES The SX5e features a DB-9 digital computer fax/data port for connection to a personal computer (PC) - not supplied. When connected to a PC, the SX5e is capable of sending and receiving digi- tal fax and data, sending and receiving e-mail communications, and browsing the Internet. Data speeds may vary depending upon your cellular network. -
Page 21: Gprs (Packet Data) Connections
(dial-up) connections. An SX5 Data Kit is required for the SX5e to use GPRS service. This kit contains a serial cable and a setup CD for installation on a standard personal computer. Contact your service provider or nearest Telular dealer for more information. Phonecell... -
Page 22: Sx5E Gsm Fwt With Fax
SX5e GSM FWT WITH FAX The SX5e GSM FWT with Fax allows connection to a fax machine and additional telephones. The SX5e can be set up to use one or both of its phone jacks. In Single Jack mode, only the jack designated with a telephone icon is operational. -
Page 23: Sx5E Gsm Pbx Fwt
SX5e GSM PBX FWT The SX5e GSM PBX FWT allows for enterprise On-Premise Equipment or PBX operation when the SX5e is connected to the trunk or extension side of a PBX. WARNING! The trunk side of the PBX must only be connected to the trunk side of the SX5e (marked with a telephone icon) - see Figure 14. - Page 24 Disconnect Detect Setup The SX5e is able to detect both a PBX disconnect tone and an analog disconnect pulse. When a PBX detects a hang-up, the SX5e must be told to also release the line. This is typically done by either a disconnect pulse or disconnect tone, but it is PBX specific.
-
Page 25: Pbx Command Summary
Two-Stage Extension Side Dialing (Extension to GSM) When connected to a PBX extension, any other extension on the PBX can access the SX5e. The SX5e will always present two-stage dialing where another extension can access the GSM network (extension side least cost routing). Only Extension Mode setup is required. No other set- tings need changing. -
Page 26: Sx5E Technician Setup
SX5e TECHNICIAN SETUP The following commands are to used by trained field technicians to set up the SX5e for operation on the network. Since these commands can directly affect the proper operation of the unit, there is an additional level of security to prevent casual access. Enter Technician-Programming Mode Technician setup commands are only accessible in Technician Programming Mode. - Page 27 cas_pls_level 0 = 0 dBm 1 = -3 dBm 2 = -6 dBm 3 = -9 dBm (default) 4 = -12 dBm 5 = -15 dBm 6 = -18 dBm Line-Reversal Outgoing This sets up the SX5e to polarity reverse the tip and ring lines on the RJ-11jack when an outgoing call is made and the far end answers (connects).
- Page 28 Personalization Options The SX5e can set locks (per GSM 02.22) to protect the SIM and the equipment from being used. The options include SIM personalization, network personalization, network subset personalization, service provider personalization, and corporate personalization. SIM Personalization Enables a user to personalize a ME so that it may only be used with particular SIM(s). Network Personalization Allows the network operator to personalize a ME so that it can only be used with that particular network operator's SIMs...
-
Page 29: Sx5E Troubleshooting
If the telephone system or wiring is not work- ing properly, replace or repair the equipment as required. Otherwise, contact your cellular provider or your authorized Telular distributor. Unable to Receive Incoming Calls If more than one telephone or telephone device is connected to the SX5e, make sure that all devices are “on-hook”... -
Page 30: Conformance Statements
Part 15 of the FCC rules. Changes or modifications not expressly approved by Telular Corporation will void your authority to operate the equipment per FCC part 15 paragraph 15.21.These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 31 WARNING! is intended either to be wall mounted or mounted on ® Phonecell a flat surface to allow proper ventilation. Do not block the space beneath ® Phonecell SX5 as this could cause the unit to overheat and fail. Exposure to electronic Devices Most modern electronic equipment is shielded from RF energy.
-
Page 32: Warranty
(15) months from date of shipment from Telular. Telular, at its option, shall at no charge either repair, replace or refund the purchase price of the Product during the warranty period, provided it is returned by Buyer in accordance with the terms of this warranty to the Telular designated repair center. - Page 33 LONG AN IMPLIED WARRANTY LASTS. VI. SOFTWARE PROVISIONS: Laws in the United States and other countries preserve for Telular certain exclusive rights for copyrighted Telular software such as the exclusive rights to reproduce in copies and distribute copies of such Telular software. Telular software may be copied into, used in and redistributed with only the Product associated with such Telular software.
-
Page 34: Appendix A: How To Setup Pc Serial Ports For Your Phonecell
APPENDIX A: HOW TO SETUP PC SERIAL PORTS FOR YOUR PHONECELL Requirements • GSM account with your network service provider including a Data/Fax facility. • PC/Laptop/ Notebook with Com Port. • Windows 95/98 NOTE: When all of the above have been satisfied, you may proceed. Modem Setup 1. - Page 35 4. The install new modem window may appear asking for the type of modem to install. Select "Other," then click on the NEXT button. If this window does not appear, go to Step 5. 5. The install new modem window will appear. Select the "Don't detect my modem option," then click on the NEXT button.
- Page 36 9. The Modems Properties window should appear. Click on the Properties button. 10. Select the Properties button for the selected modem and change your serial port speed as required. • GPRS Connections: Use 115,200 • Fax and Circuit Switched Data: Use 19,200 Phonecell SX5e GSM...
- Page 37 11. Then click on the Connection tab. Set as shown below. 12. Click on the Advanced button. Set as shown. 13. Click on OK and Close to back out of each window. Your modem is now set up. Phonecell SX5e GSM Technical Manual ®...
- Page 38 Phonecell SX5e GSM Technical Manual ®...
- Page 39 Phonecell SX5e GSM Technical Manual ®...
- Page 40 647 North Lakeview Parkway Vernon Hills, Illinois 60061, USA Tel: 847-247-9400 • Fax: 847-247-0021 E-mail: support@telular.com http://www.telular.com ©2002 Telular Corporation, all rights reserved. Part Number 56023601...
