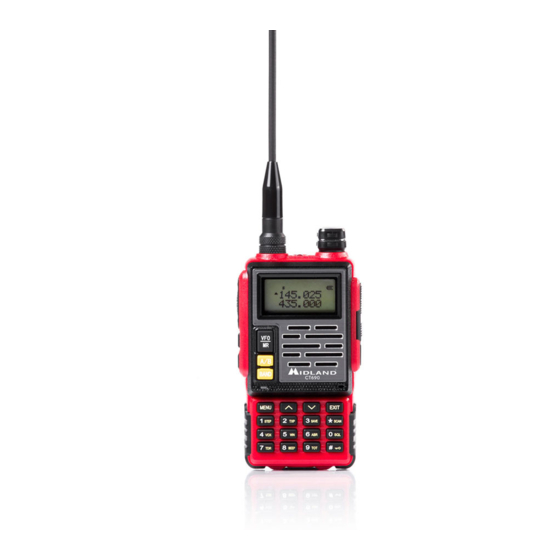

CT690
DUAL BAND VHF/UHF TRANSCEIVER
› USER MANUAL
SPECIAL FEATURES
Group call
FM radio
3 colors
display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT690 and is the answer not in the manual?

Questions and answers

Related Manuals for Midland CT690

Summary of Contents for Midland CT690

  • Page 1 CT690 DUAL BAND VHF/UHF TRANSCEIVER › USER MANUAL SPECIAL FEATURES Group call FM radio 3 colors display...

  • Page 2: Table Of Contents

    CALL Index Content of the packaging Maintenance Main features Main controls and parts of the radio LCD Display Buttons and controls of the radio Installing the antenna Installing the belt clip Installing the pattery pack Releasing the battery pack Main keypad controls Basic operations EXIT Power/volume switch...
  • Page 3 Output power (TXP) - MENU No.2 Battery save (SAVE) - MENU No.3 VOX Function (VOX) - MENU No.4 Wide/Narrow bandwidth (W/N) - MENU No.5 Backlight (ABR) - MENU No. 6 Dual Watch Operation (TDR) - MENU No. 7 Time-Out-Timer (TOT) - MENU No.9 Receiving DCS (R-DCS) - MENU No.10 Receiving CTCSS (R-CTCSS) - MENU No.11 Transmitting DCS - (T-DCS) - MENU No.12...
  • Page 4 Frequency band Shift (BAND) - Menu No.33 Dual Watch (TDR-AB) - Menu No.34 Side tone elimination (STE) - Menu No. 35 Side tone elimination in communication through repeater (RP-STE) - Menu No. 36 Delay time of side tone elimination in communication through repe- ater (RPT-RL) - Menu No.37 Display mode at the turning on (PONMSG) Menu No.38...

  • Page 5: Maintenance

    • 1 fast desktop charger • 1 wall adaptor • Antenna If any item is missing, please verify with your Midland dealer. Maintenance Your Two Way Radio is an electronic product of exact design and should be treated with care.

  • Page 6: Main Features

    • Squelch adjustable in 9 levels • VOICE: vocal indication of the function selected • Keypad lock • Li-Ion 1700mAh battery pack • 2pin Kenwood accessory jack CT690 is available in 3 different colors: black, yellow or red. CT690 user’s manual...

  • Page 7: Main Controls And Parts Of The Radio

    13. When the radio is in reception mode, this icon is displayed 14. Frequency band in use 15. Indicates the VFO in use and the current menu or function setting. This icon is displayed close to the band in use. CT690 user’s manual...

  • Page 8: Buttons And Controls Of The Radio

    BAND MENU EXIT MENU MENU EXIT EXIT STEP SAVE SCAN STEP STEP SAVE SCAN SAVE SCAN BEEP BEEP BEEP MENU EXIT MENU MENU EXIT EXIT STEP SAVE SCAN STEP STEP SAVE SAVE SCAN SCAN BEEP BEEP BEEP CT690 user’s manual...
  • Page 9 10, optional) . V. 1700mAh Li-Ion battery pack Programming software (optional) Thanks to Midland Programming software PRG-G10, it is possible to increase the performance of your radio or to reduce its functionality by enabling or di- sabling some features. For further information, please consult the Programming software manual.
  • Page 10 • If the radio still shows low power after the normal charge, please change the battery. • The average usage time of battery pack is 13 hours. Average usage time is 5% for transmitting, 5% for receiving and 90% for standby. CT690 user’s manual...

  • Page 11: Installing The Antenna

    Releasing the battery pack Turn off the radio before releasing the battery pack. Hold the radio face down. Push the battery release button and slide the battery pack towards you. CT690 user’s manual...

  • Page 12: Main Keypad Controls

    CALL With these keys you can input the information or your selections on the radio. In tx mode, push the number keys to send a corresponding DTMF code. MENU EXIT STEP SAVE SCAN BEEP EXIT SAVE SCAN CT690 user’s manual...

  • Page 13: Monitor Key

    If you press this button for more than 2 seconds, you activate the frequency or channel scanning. In FM radio mode, press it to automatically search FM stations. In CTCSS/DCS mode, press this key to start the CTCSS/DCS code scanning. CT690 user’s manual...

  • Page 14: Working Modes

    Note1: in channel mode, the setting of these features is not possible: CTCSS/ STEP SAVE SCAN DCS tones, wide/narrow bandwidth, PTT-ID, Busy channel lock out, channel name edit. Note2: High/low power can only be changed by pressing the fast key BEEP 10 | CT690 user’s manual...

  • Page 15: Menu Operations

    ROGER 00.000 05.000 00.000 05.000 D023N D023N OFFSET OFFSET OFFSET OFFSET RESET RESET RESE T-DCS T-DCS T-DCS T-DCS CT690 user’s manual 67.0HZ 67.0HZ 136.225 | 11 136.225 136.2 T-DCS T-DCS T-DCS T-DCS OFFSET OFFSET OFFSET OFFSET RESET RESET RESE T-CTCS 67.0HZ...
  • Page 16 00.000 OFFSET 05.000 OFFSET 00.000 OFFSET 05.000 RESET RESET RESET RESET D023N D023N 12 | 00.000 05.000 00.000 05.000 CT690 user’s manual T-CTCS D023N T-CTCS T-CTCS D023N T-CTCS MEM-CH MEM-CH MEM-CH MEM-CH 400.875 400.875 400.875 400.875 D023N D023N 00.000 05.000 00.000...
  • Page 17 R-DCS or R-DCS R-CTCSS R-CTCSS FREQ FREQ D023N D023N FULL FULL 136.225 136.225 136.225 136.225 RPT-RL RPT-RL RPT-RL RPT-RL MSG: CT690 on display MDF-B MDF-B MDF-B MDF-B RP-STE RP-STE RP-STE RP-STE BEEP R-DCS BEEP R-DCS BEEP R-DCS AUTOLK AUTOLK AUTOLK...
  • Page 18 136.225 136.225 136.225 or R-DCS or R-DCS Important1: CT690 has a dual-frequency display function. In frequency mode, you will see on the display two different receiving and transmitting frequencies; while in channel mode the two R-CTCSS R-CTCSS RPT-RL RPT-RL RPT-RL...

  • Page 19: Functions And Operations

    This function allows hands-free conversations: just speak in the direction of the microphone and the communication will be automatically activated. You can choose amongst 11 levels: OFF-10. 1 is the highest level, 10 is the lowest one. CT690 user’s manual | 15...

  • Page 20: Wide/Narrow Bandwidth (W/N) - Menu No.5

    DCS codes are similar to access codes and can be added to channels, so as to create a sort of personal channel. They enable the radio to communicate with the users that are tuned on the same channel and have set the same DCS code. 16 | CT690 user’s manual...

  • Page 21: Receiving Ctcss (R-Ctcss) - Menu No.11

    OFF: R-DCS: D023N-D754N (Normal DCS) R-DCS: D023I-D754I (Inverse DCS) Note: In CT690 there are 208 groups of normal and inverse DCS codes. This function cannot be used in channel mode. Receiving CTCSS (R-CTCSS) - MENU No.11 As DCS codes, the CTCSS codes can be added to the channels for creating new private channels.

  • Page 22: Signal Code (S-Code) - Menu No.17

    Thanks to this function , you can set a radio signal code. You can set up to 15 groups. This function is enabled by the programming software. SCAN Resume Mode (SC-REV) - MENU No.18 Thanks to this function, CT690 can SCAN in frequency or channel mode. You can choose amongst three options: TO - Time-operated SCAN Whenever a signal is detected, the radio will suspend the SCAN for 5 seconds, and then will continue to SCAN even if the signal is still present.

  • Page 23: Channel A Display Mode (Mdf-A) - Menu No.21

    Transmitting frequency is higher than receiving frequency (+); Transmitting frequency is lower than receiving frequency (-); Note: you should set different frequency deviation according to the repeaters se- lected. This function is not enabled in channel mode. CT690 user’s manual | 19...

  • Page 24: Frequency Offset (Offset) - Menu No. 26

    In this MENU you can choose the backlight color when the radio is receiving. You can choose amongst : OFF (backlight off) GREEN ORANGE TX backlight (TX-LED) - MENU No.31 You can choose the backlight color when the radio is transmitting. Available colors: 20 | CT690 user’s manual...

  • Page 25: Alarm Mode (Al-Mod) - Menu No.32

    It can also be used for cross band receiving and transmitting. You can choose amongst the following settings: OFF: CT690 can receive in both VFO (not simultaneously); ▲ or ▼ will blink on the transmitting frequency band the radio can receive in both VFO (not simultaneously) but can transmit in VFO A only.

  • Page 26: Side Tone Elimination (Ste) - Menu No. 35

    With this function you can set the display mode when the radio is turned on. Available options: FULL: full frequency character is displayed. MSG: CT690 is displayed. Roger beep (ROGER) - Menu No. 39 When the PTT is released, the radio will beep to confirm to other users that you have finished your transmission and that they can start talking.

  • Page 27: Reset (Reset) - Menu No.40

    Flashlight - Menu No.44 This function is very useful for night illumination. To turn it on press MON; push it again , the flash light will be strobo; push it again: it will turn off. CT690 user’s manual | 23...

  • Page 28: Monitor (Mon) - Menu No.45

    Press * button to swap the transmit and receive frequencies. Note: you can turn the reverse function on when you are operating in simplex mode (same tx and rx frequency). However it does not change the tx and rx fre- quency. 24 | CT690 user’s manual...

  • Page 29: Frequency Scanning - Menu No.50

    Note: while you are listening to the radio, the frequency or channel of A/B recei- ving signal will automatically switch to the frequency or channel mode for normal transmitting and receiving. When the signal disappears the radio will automatically switch again to FM radio mode. See Menu No.42. CT690 user’s manual | 25...

  • Page 30: Cursor "▲" Conversion (A/B) - Menu No.54

    Directly press AB to move the cursor up and down. Then, you can modify or confirm the parameters indicated by the cursor. High/low power selection - Menu No.55 In channel mode, press # to shift between high and low power. 26 | CT690 user’s manual...

  • Page 31: Technical Specifications

    Specifications are subject to change without notice. WARNING. Direct plug-in ac/dc power supply must be used for disconnecting the transceiver from the mains; the desktop charger must be positioned close to the unit and easily accessible. CT690 user’s manual | 27...
  • Page 32 Here, the various materials will be divi- ded by characteristics and recycles, thus making an important contribution to environmental protection. 28 | CT690 user’s manual...
