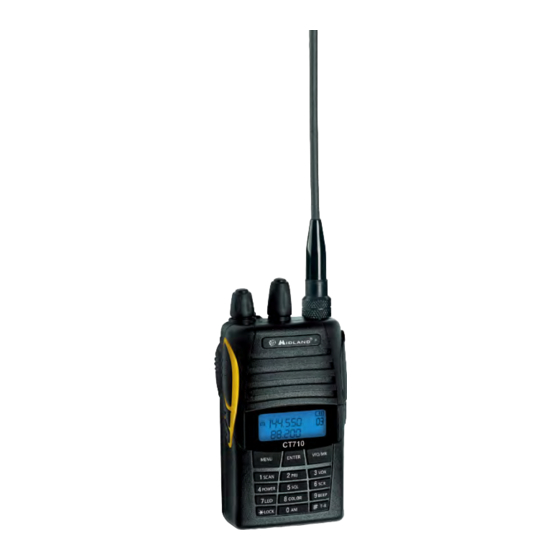

Vhf/uhf transceiver
Hide thumbs Also See for CT 710:

Advertisement

CT 710
"
Instruction guide
V H F / U H F T r a n s c e i V e r |

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT 710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Midland CT 710

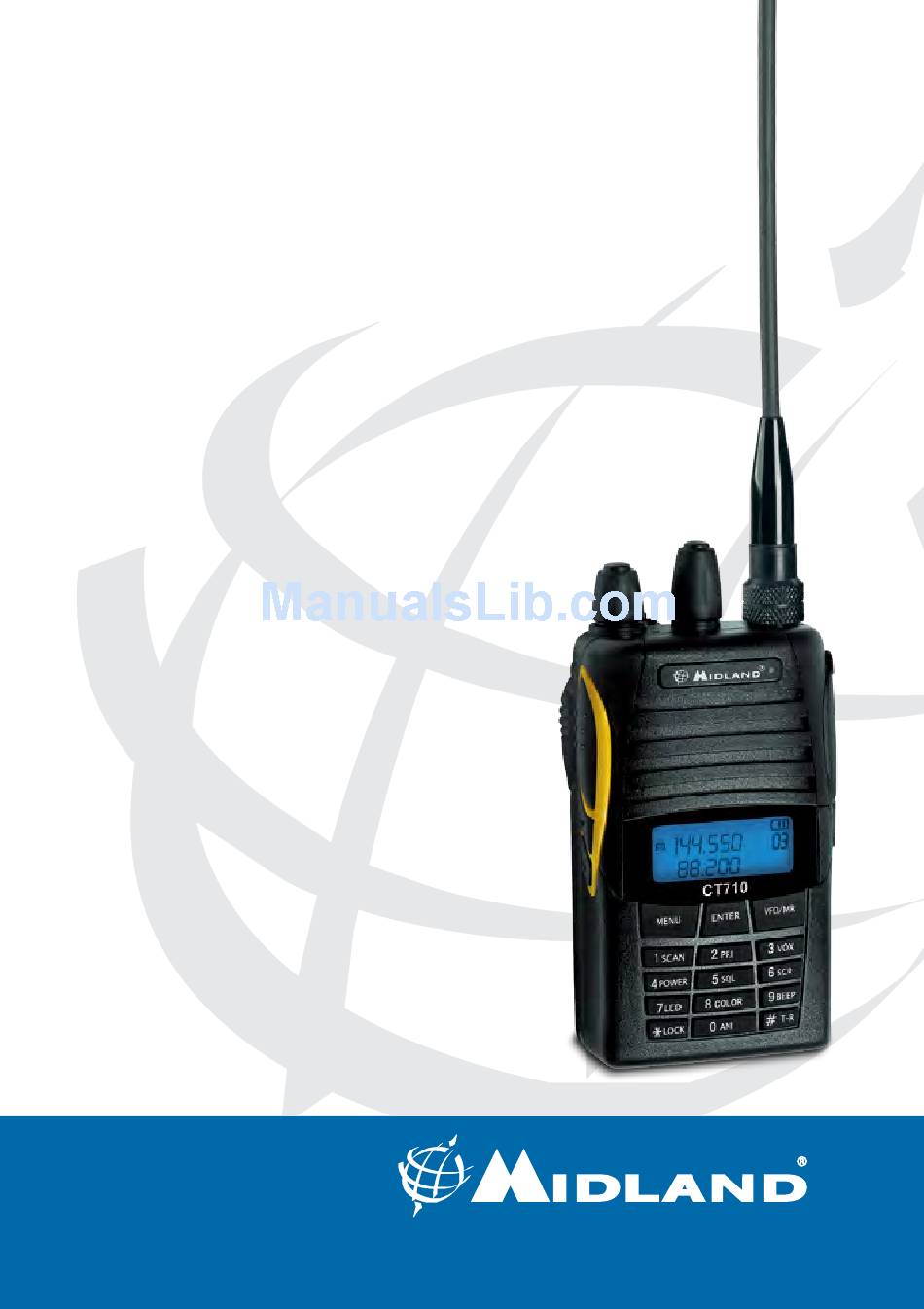

  • Page 1 CT 710 ” Instruction guide V H F / U H F T r a n s c e i V e r |...
  • Page 2: Table Of Contents

    Sommario Menu function Menu Operation Menu Function List Menu Function introduction and setting Content: Emergency Alarm Setting Reverse Frequency Function Maintenance Scanning Select scan type Main functions VOX Sensitivity Setting Power Setting (high or low) Description of the device Squelch Threshold Setting Scrambler Setting LCD display Backlight On/Off Setting...
  • Page 3: Content

    Content: Main functions • CT 710 transceiver • Dual band (VHF/UHF) displayed • Antenna • Frequency band:144-146MHz & 430-440MHz (Rx / Tx). • Li-ion battery pack 1600mAh • Working mode: UHF-VHF, VHF-VHF or UHF-UHF • Belt clip • Output power: 5W VHF /4W UHF • Desktop charger with wall adaptor...
  • Page 4: Description Of The Device

    Description of the device LCD display indicators: DTMF codes Compander FM radio CTCSS tone Vox function DCS code Inverted frequency (reverse) Keypad lock Frequency offset +/- RSSI - Potenza segnale ricevuto/trasmesso Channel spacing wide/narrow Scrambler ID code activation Menu/channel number Battery level High/middle/low power transmitting Emergency call...
  • Page 5: Transceiver

    Transceiver Power switch/volume control PTT (push to talk) key Flank key1: A/B frequency selector - single or dual band -, FM radio encoder Knob Flank key2: 1750/1450/2315 tone (programmable) or DTMF (pro- antenna grammable) LcD display ext. speaker/microphone jack MenU Battery latches enTer (To enter the menu functions and confirm your selections) Alphanumerical keypad...
  • Page 6: Basic Operations

    Basic operations 4. Frequency mode. Press flank key1 for two seconds to enter or exit the dual-band or single- band mode. Antenna Dual-band mode Insert the base of the supplied antenna into the SMA connector by rota- When the dual-waiting mode is selected, the display will show two bands ting the antenna clockwise, then make sure that it has set down.
  • Page 7: Frequency Mode

    Frequency Mode → → MenU VFO/Mr ‘sinGLe BanD’ → → enTer Tasto laterale 2 R 430.02500 receive frequency T 430.02500 transmit frequency DTMF programmed by software (see the instructions of the Programming software) ‘DUaL BanD’ Once the optional call signaling DTMF function is programmed on the A 145.025 desired channels, press the flank key2...
  • Page 8: Shortcuts Operation

    Menu function Shortcuts Operation MenU ANI setting Menu Operation MenU scan mode To enter the Menu functions, follow this procedure: MenU priority scan mode (only in VFO mode) MenU Press to enter the menu mode. Turn the encoder to select the menu. MenU VOX Sensitivity setting Press...
  • Page 9: Menu Function List

    Menu Function List Menu display instruction setting contents Channel or frequency scan SCAN CHANNEL OR FREQUENCY SCAN Priority Channel Scan PRIORITY CHANNEL SCAN VOX Sensitivity OFF~9 Transmission power HIGH/LOW Squelch threshold setting SCRM Scrambler OFF/ON Backlight On/Off setting OFF/ON/AUTO Backlight color select LIGHT BLUE/ ORANGE/PURPLE Beep...
  • Page 10: Menu Function Introduction And Setting

    Menu Function introduction and setting scanning. Frequency or channel scan Emergency Alarm In channel /frequency mode, press MenU and 1scan: the radio will scan from current channel through all the channels and, whenever any signal There are two types of alarms: is detected, the radio will stop scanning for 8 seconds.
  • Page 11: Squelch Threshold Setting

    In channel/frequency mode, press MenU and 4PWr: the screen will di- The screen will show “007 LED?”. Press enTer and you will see on splay ”004 POW?”. the display ”ON” (backlight on). Turn the encoder to select “ON” “OFF” Press enTer and the display will show ”POW L”...
  • Page 12: Transmitting Tot Setting

    Transmitting TOT Setting The CTCSS tones available are 50, while DCS codes are 105I and 105N. Procedure: The TOT function is used to prevent a too long transmission. This function Press MenU #T-r keys, the display will show “016 temporarily blocks transmissions if the radio has been used beyond the C-CDC?”.
  • Page 13: Wide/Narrow Band

    Wide/Narrow Band time. The display will show “RESET?”. Press the enTer key, the LCD will show “VFO?”. MenU and turn the encoder to item In channel/frequency mode, press enTer Press to confirm and all the settings of frequency mode will be “021 N/W?”...
  • Page 14: Ctcss Tone Table: 50 Tones

    CTCSS tone table: 50 tones DCS: Digital code 105 tones Freq.(Hz) Freq.(Hz) Freq.(Hz) no Dcs code no Dcs code no Dcs code Dcs code 67.0 118.8 183.5 69.3 123.0 186.2 71.9 127.3 189.9 74.4 131.8 192.8 77.0 136.5 196.6 79.7 141.3 199.5 82.5...
  • Page 15: Table Of Solutions

    Table of solutions Technical Specification General PrOBLeM sOLUTiOn Frequency range 144-146MHz / 430-440MHz The radio doesn’t switch The battery may be exhausted. Recharge it. Operative temperature -20° +55°C Uncorrected installation. Re-install it. Operating voltage 7.4V 1600mAh Battery recharge doesn’t The battery pack is over. Change it with a Operating mode mono band / dual band last long...
  • Page 16 UK 609, Delta Business Park, Welton Road, Swindon, SN5 7XF United Kingdom www.alan-uk.com - www.midland-uk.com The use of this transceiver can be subject to national restrictions. Read the instructions carefully before installation and use. If the product contains batteries: do not throw the battery into fire. To disperse after use, throw into the appropriate containers.
