Fox F60-105 Assembly And Operating Instructions Manual

Spindle shaper
Hide thumbs
Table of Contents

Advertisement

Quick Links

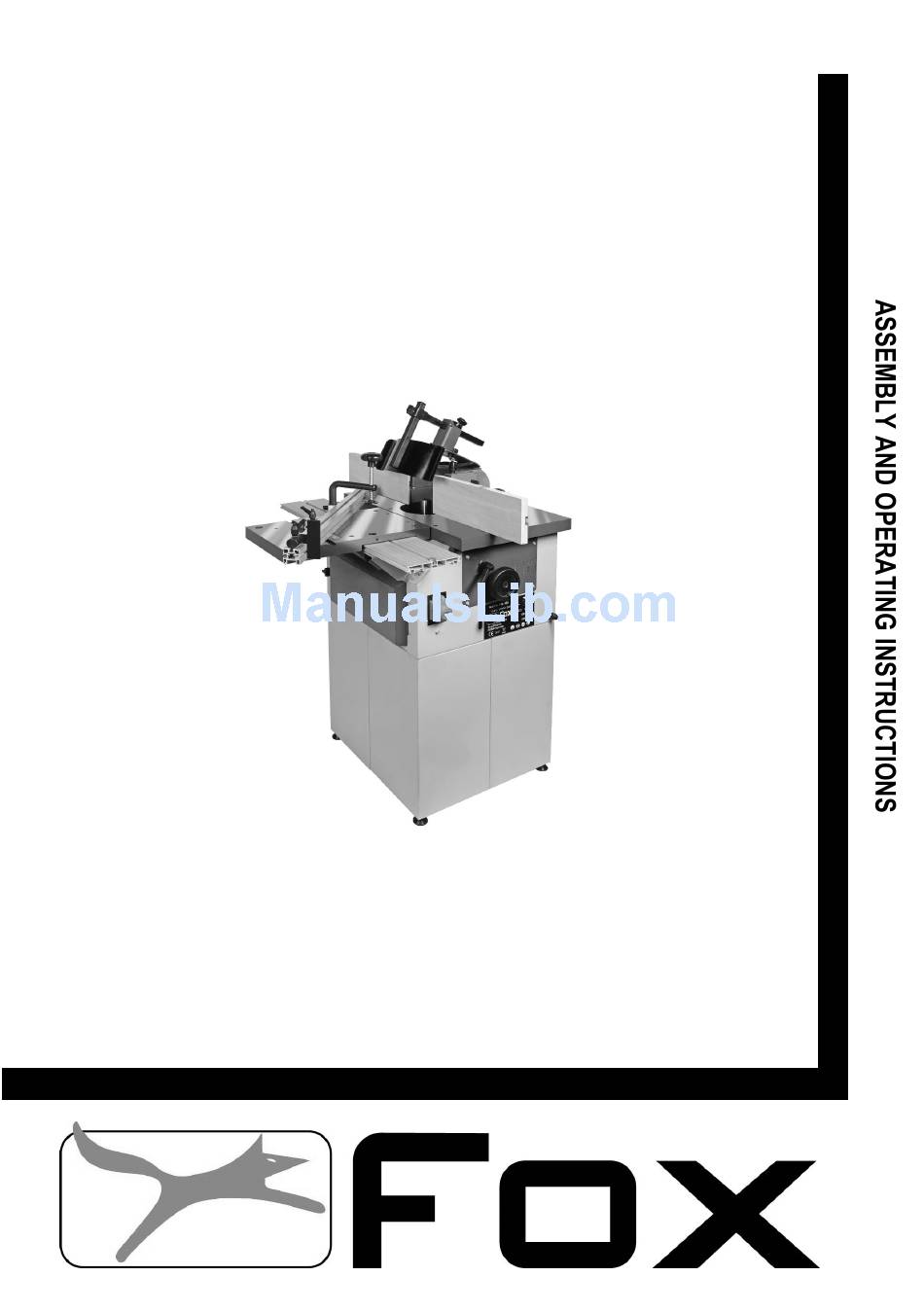

SPINDLE SHAPER
FOX Model F60-105
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F60-105 and is the answer not in the manual?

Questions and answers

Related Manuals for Fox F60-105

Summary of Contents for Fox F60-105

  • Page 1 SPINDLE SHAPER FOX Model F60-105...

  • Page 2: Table Of Contents

    Spindle Shaper FOX MODEL F60-105 TABLE OF CONTENTS  Safety instructions…………………………………………………………………………………………… Page 3  Specific safety instructions for spindle shapers….………………………………………………………. Page 5  Specifications………………………………………………………………………………………………… Page 6  Noise conditions……………………………………………………………………………………………... Page 6  Electrical connections………………………………………………………………………………………. Page 7  Earthing instructions………………………………………………………………………………………… Page 7 ...

  • Page 3: Safety Instructions

    ATTENTION : - Read the instructions for use carefully before using the machine - This device meets current safety standards for electrical machines. - Incorrect use may result in injury. Anyone not familiar with the instructions for use should not use the machine.
  • Page 4 8. Wear appropriate clothing. Avoid loose clothing, and remove jewellery which could become caught in moving parts. Non-slip shoes are particularly recommended when working outside. Keep long hair tied up. 9. Always wear safety glasses. Also wear a mask if operating the machine creates dust. 10.

  • Page 5: Specific Safety Instructions For Spindle Shapers

    SPECIFIC SAFETY INSTRUCTIONS FOR SPINDLE SHAPERS 1. Before connecting the machine to the power supply, ensure that all safety items are in their active positions and check that they function correctly. If it is necessary to remove the doors or protective covers, turn off the switch and disconnect the plug from the socket.

  • Page 6: Specifications

    SPECIFICATIONS Motor input : 1500W – 240V (2hp) Motor output : 1100W Diameter of spindle : 30mm Spindle travel : 80mm 2 speed : 4500, 6500rpm Length of spindle : 80mm Max. diameter of spindle : 144mm Dimensions (h x l x d) : 1102x800x885mm Dimensions of carriage (h x l x d) : 145x650x225mm...

  • Page 7: Electrical Connections

    ELECTRICAL CONNECTIONS EXTENSION CORDS Before using an extension cord, ensure the insulation is not cut or worn. Immediately repair or replace a damaged or frayed cord. ATTENTION : Extension cords must be removed from the work area or located so that they will not get caught in parts, tools or other objects while using the tool.

  • Page 8: Environmental Protection

    ENVIRONMENTAL PROTECTION The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product end-of-life. This applies to your device but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste.

  • Page 9: Transport And Storage

    TRANSPORT AND STORAGE While transporting or handling the machine, take utmost care. When loading or unloading the machine, ensure that no-one is crushed by the machine! Do not walk under the machine while it is being lifted by a crane or high-lift trolley. During transportation, precautions must be taken to protect the machine against excessive vibration and humidity.

  • Page 10: Machine Installation

    MACHINE INSTALLATION Remove the protective coating from the working tables and other parts of the machine either with paraffin oil or any similar solvent. Do not use petrol or similar solvents as they can result in reduced corrosion resistance for certain parts of the machine.

  • Page 11: Operating And Adjusting The Spindle Shaper

    Before adjusting or replacing any tools and before making any adjustments, alterations or maintenance, always turn off the switch and disconnect the the plug from the mains supply. This machine my be earted. Inspect it and ensure the socket is reliably earthed. Direction of Rotation Viewing the machine from above, the spindle rotates anticlockwise.
  • Page 12 locking knob. Keep the pressure pads firmly and evenly in contact with the table and the fence plates along the guide ruler. The cutting speed must exceed 40m/s in order to reduce the risk of kickback but must not exceed 70m/s in order to reduce the risk of tool damage.
  • Page 13 3. When the shaping operation removes the entire edge of the work (ie jointing or making a full bead), the shaped edge will not be supported by the rear fence when both fences are in line, as shown in Fig. 9. In this case, the workpiece should be advance to the position shown in Fig.

  • Page 14: Tools

    Collar Positioning Collars may be positioned above, below or between two cutters. When using the collar below the cutter, as shown in Fig. 14, the progress of the cut can be observed at all times. A disadvantage of this method is that any accidental lifting of the work will gouge the wood and ruin the workpiece.

  • Page 15: Maintenance

    MAINTENANCE Before starting maintenance or repair work, always disconnect the machine from the mains supply. Turn off the machine and remove the plug from the power socket. It is necessary to ensure the V-belts are always kept tight. The machine should be cleaned regularly. The rods, pins, threads and other parts liable to be rusty should be lubricated with suitable oil.
  • Page 16 Machine vibrates Cutterhead damaged Replace cutterhead Stand is on uneven surface Stand must rest solidly on level surface, bolt to floor if necessary Defective V-belt Replace V-belt V-belt incorrectly tensioned Apply proper tension Bent pulley Replace pulley Motor mounted improperly Motor must be properly mounted with snug nuts and bolts Edge splits off on cross grain cut...

  • Page 17: Parts Diagrams And Lists

    PARTS DIAGRAMS...

  • Page 24: Dart Tool Group Guarantee

    Power Tools and accessories which, upon examination, prove to be defective in workmanship or material. The warranty period for the FOX branded products is one year for parts and labour and three years for parts only. The guarantee does not include repair, labour or parts requiring replacement because of misuse, abuse, or normal wear and tear.

  • Page 25: Declaration Of Conformity

    KIRKCALDY, UK, KY1 3PD Tel. +44 (0) 1592 652946 Fax: +44 (0) 1592 654854 Declares that the: SPINDLE SHAPER (F60-105) is in compliance with the regulations included in the Directives: CEE 2006/42-2004/108-2006/95 Person authorized to create the technical file: Robert Paterson 06.05.2011...
