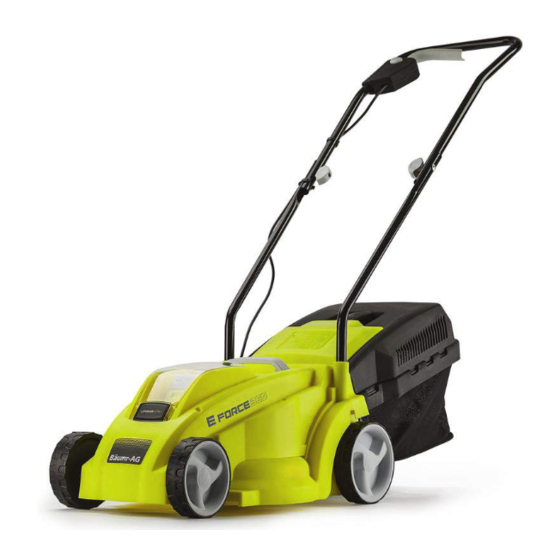

Summary of Contents for Baumr-AG E force 360
- Page 1 FORCE FORCE BEFORE USING YOUR MOWER Carefully read and understand the owner’s manual. Save this manual for future use. Read and follow all warnings on the mower, battries, charger,and in the Owner’s Manual.
- Page 2 FORCE FORCE...
- Page 3 Please read the instructions carefully before starting the machine. English EMERGENCY PROCEDURE | SYMBOLS |SAFETY INSTRUCTIONS | BATTERY | WORK INSTRUCTIONS | MAINTENANCE | DISPOSAL | GUARANTEE | SERVICE | DEFECTS SEARCHING...
- Page 4 Assembly...
- Page 5 Montage Montaža Assembly Montaža Battery Assemblage Montaggio Montaj Montage Montaža Montáž Montáž Szerelés...
- Page 6 Montage Montaža Assembly Montaža Battery Montage Montaggio Montaj Montage Montaža Montáž Montáž Szerelés...
-
Page 7: Cutting Height
Montage Montaža Cutting height Assembly Montaža Assemblage Montaggio Montaj setting Montage Montaža Montáž Montáž Szerelés... -
Page 8: Operation
Operation... - Page 9 Mow- collect...
-
Page 10: Specifications
Montage Montaža Assembly Montaža Mow- eject Assemblage Montaggio Montaj Montage Montaža Montáž Montáž Szerelés SPECIFICATIONS 30V LITHIUM LAWN MOWER: Battery: 30V Samsung Lithium Battery Cutting Length: 320mm Speed: 3600rpm ±5% Working Area: About 150m2 Grass catcher: Height adjustments: 3 position 25-65mm Motor Type: Brushless Motor Charger specs:... - Page 11 Montage Montaža Cutting Assembly Montaža Assemblage Montaggio Montaj Instructions Montage Montaža Montáž Montáž Szerelés...
- Page 12 Montage Montaža Cleaning Assembly Montaža Assemblage Montaggio Montaj Maintenance Montage Montaža Montáž Montáž Szerelés...
-
Page 13: Technical Data
Technical Data Cordless lawn mower 323/25 RM Set Art. No 95529 Voltage 30 V Rated revolutions 3800 min Cutting width 320 mm Cutting depth 25/45/65 mm Collection bag capacity 30 l Weight without battery/Charging equipment 10,5 kg Degree of protection IP 21 Noise details Sound pressure level L... -
Page 14: Residual Risks
Residual risks Read and understand the operating instructions before using the appliance. Familiarise with the Rotating blades may lead to serious injuries control elements and how to use the appliance properly. by cutting or amputating parts of the body. Abide by all the safety measures stated in the service Never touch under the housing body when the manual. -
Page 15: General Power Tool Safety Warnings
Charger to be used in closed spaces only. Caution, risk of drawing-in Appliance protection Always keep children and unauthorised persons out of reach of the appliance. Protection class II Protect against humidity Never expose tool to rain. Battery Wear eye protective goggles ! Wear ear protectors! Protect the battery against water and moisture. - Page 16 c) Do not expose power tools to rain or wet con- c) Disconnect the plug from the power source before making any adjustments, changing the risk of electric shock. Such pre- d) Do not abuse the cord. Never use the cord for ventive safety measures reduce the risk of starting Keep cord away from heat, oil, sharp edges d) Store idle power tools out of the reach of child-...
-
Page 17: Charging Station
• To release a blocked blade. Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe • To adjust the mowing height. distance is 5 m. • To empty the collection bag. • Check the machine if working perfectly after catching Wear personal protective equipment. -
Page 18: Work Instructions
Battery the contact key before any adjustment, Vapours may leak out in case of unauthorised use or cleaning and servicing work. Wait until all when using a damaged accumulator. Bring fresh air rotating parts have stopped and the appli- ance cooled down. After each use, clean Vapours may irritate the respiratory system. -
Page 19: Failure Removal
Failure removal Removal Cause Battery is empty Charge the battery Battery is defective Have it replaced in a Güde authorised service centre Contact key is not inserted See „Operation“ below Main switch or safety arch is not See „Operation“ below controlled Unsteady running, Blade is damaged... - Page 20 FORCE 37CM 36V Li-Ion Cordless Lawn Mower OPERATOR’S MANUAL BEFORE USING YOUR MOWER Carefully read and understand the owner’s manual. Save this manual for future use. Read and follow all warnings on the mower, battries, charger,and in the Owner’s Manual.
-
Page 21: Product Specifications
PRODUCT SPECIFICATIONS Component Specifications Battery Capacity 36 V d.c. Charge Time 2.5-hour No-load Speed 3,200 /min Cutting Path 15 in. (370 mm) Height Adjustment 1–3 in. ( 25mm – 75mm) Wheels Size 6 in. (155mm) SYMBOLS SYMBOL NAME SYMBOL NAME Severing of toes or fingers - rotary Thrown objects from mower deck. -
Page 22: Safety Instructions
SAFETY INSTRUCTIONS WARNING: Read all instructions when using electric gardening appliances. Basic safety precautions should always be followed to reduce the risks of fire, electric shock, and personal injury. FOR ALL LAWN MOWERS a) Avoid Dangerous Environments Don’t use appliances in damp or wet locations. b) Don’t Use In Rain. - Page 23 SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOR BATTERY-OPERATED LAWN MOWERS a) Do not charge the lawn mower in rain, or in wet locations. b) Do not use battery-operated lawn mower in rain. c) Remove or disconnect the safety key before servicing, cleaning, or removing material from the lawn mower. d) Use only genuine LithiumUltra batteries.
- Page 24 SAFETY INSTRUCTIONS 17. Always wear eye protection when operating the machine. 18. See manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by the manufacturer. II. SLOPE OPERATION Slopes are a major factor related to slip and fall accidents, which can result in severe injuries. Operation on all slopes requires extra caution.
-
Page 25: Battery And Charger
BATTERY & CHARGER CAUTION: USE ONLY APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES MAY CAUSE INJURIES OR DAMAGE TO THE MOWER. The battery that is supplied with this mower is a maintenance-free, sealed, 36 V storage battery. It can be tipped without danger of acid spillage. - Page 26 KNOW YOUR PRODUCT KNOW YOUR PRODUCT Read this owner's manual and safety rules carefully before operating the mower. Compare the illustration below to the mower in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.
-
Page 27: Assembling Your Lawn Mower
ASSEMBLING YOUR LAWN MOWER KNOW YOUR PRODUCT Parts List • Grass Catcher Bag • 36V Battery (Pre-installed at the factory) • Battery Charger • Manual Note: • Carefully remove the parts from the box. • Inspect the parts carefully in order to verify that no breakage or damage occurred during shipping. •... - Page 28 ASSEMBLING YOUR LAWN MOWER KNOW YOUR PRODUCT INSTALLING THE GRASS CATCHER BAG (see Fig. 4) 1. MAKE SURE THE BLADE HAS COME TO A COMPLETE STOP, UNPLUG THE SWITCH KEY AND REMOVE THE BATTERY FROM MOWER. 2. While holding up the rear cover (1), place the grass bag hanger hooks (2) into the opening on the chute cover (1) to allow the hanger hooks to attach to the hole(3) on the deck, which secures the chute rear cover.
- Page 29 OPERATING YOUR MOWER KNOW YOUR PRODUCT TO START & STOP THE MOWER: Carefully follow the illustration below, in order, when starting or stopping the mower. (See Fig. 6) Control rod STARTING/STOPPING THE MOWER (See Fig. 6) Start butto 1. For the proper operation of this lawn mower, you need to insert the safety key in position, Safety key then pull the start button, then hold the control...
- Page 30 OPERATING YOUR MOWER KNOW YOUR PRODUCT REMOVE THE BATTRY FROM MOWER Note: The battery can be removed from the mower. Step 1: Open the battery cover. Step 2: Pull the fixing buckle. Step 3: Remove the battery. 1. Open the battery cover 2.
- Page 31 OPERATING YOUR MOWER KNOW YOUR PRODUCT CHARGING PROCEDURES Note: The battery can be charged in the mower. The charger that is supplied with this mower is a specially designed 2-stage charger. Step 1: The red light will light up during the recharge cycle. Step 2: The green light will light up when the battery is fully charged.
- Page 32 OPERATING YOUR MOWER KNOW YOUR PRODUCT WARNING: Do not mow a slope that has an angle of more than 15° (a rise of approximately 2 1/2 ft. (75 m) every 10 ft. (3 m)). Mow across the face of a slope, never up and down. MOWING TIPS NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass.
-
Page 33: Cleaning The Mower
OPERATING YOUR MOWER KNOW YOUR PRODUCT Fig. 9 Fig. 10 Loosen Tighten NOTE: Be sure to replace the parts in the exact order in which they were removed. When installing the cutting blade, verify that it is installed with the curved ends pointing toward the mower deck. CLEANING THE MOWER WARNING: To reduce the risk of electric shock and damage to the mower, do not expose the mower to water. -
Page 34: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL KNOW YOUR PRODUCT If the battery pack cracks or breaks, with or without leaks, do WARNING not recharge it and do not use. Dispose of it and replace with All toxic materials must be disposed of in a specified a new battery pack. -
Page 35: Know Your Product
KNOW YOUR PRODUCT SERVICING 1. When servicing the mower, use only replacement parts that are available from the manufacturer. 2. Before cleaning, repairing, or inspecting, verify that the blade and all moving parts have come to a complete stop, and remove the safety key. - Page 36 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
