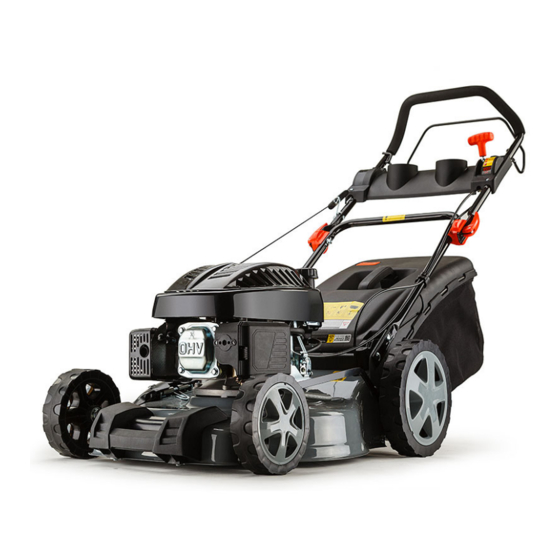

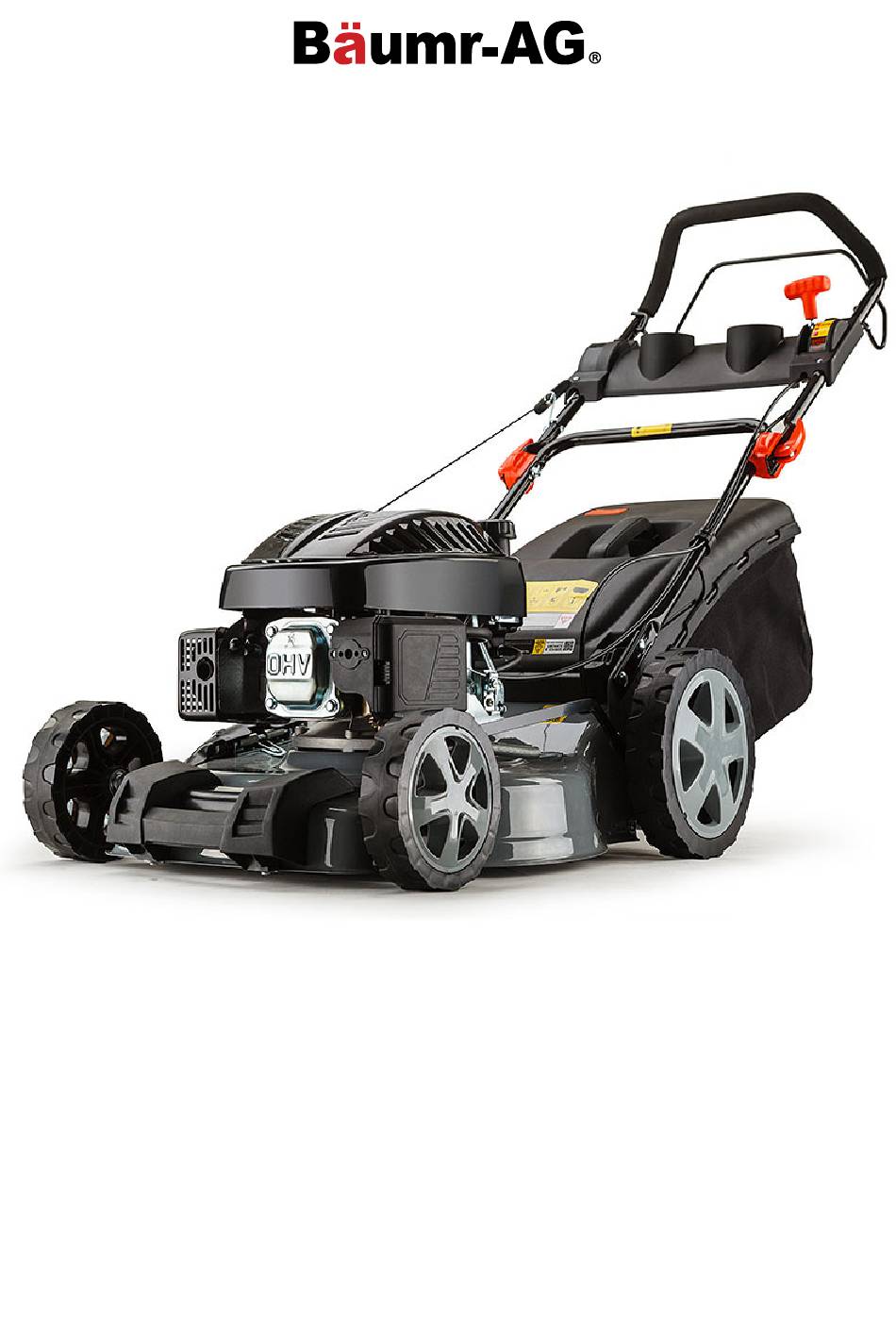

- Page 1 Self-Propelled Lawnmower User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
Self-Propelled Lawnmower Table of Contents Safety ..................................1 General safety Instructions ..........................1 Instructions for Use ............................1 Lawnmower Parts ..............................3 Set-Up ..................................4 Preparation ..............................4 Assembling the Handle..........................4 Installing the Handle Panel ..........................5 Assembling the Grass Catcher ........................5 Operation .................................. -
Page 3: Safety
Self-Propelled Lawnmower Safety General safety Instructions • Carefully unpack the product and take care not to throw away any part of the packaging before you find all the parts of the product. • Store the machine in a dry place out of reach of children. Never allow children or persons who are not acquainted with the contents of this user’s manual to work with the machine. - Page 4 Self-Propelled Lawnmower • Under no condition leave the lawnmower running without supervision; if you leave the lawnmower, turn off the engine. • Never lift the rear part of the lawnmower when starting it and always keep your limbs away from the cutting deck or the rear grass ejection chute while the engine is running.
-
Page 5: Lawnmower Parts
Self-Propelled Lawnmower Lawnmower Parts No. Part No. Part Travel lever Side discharge deflector Engine speed control lever Cap with oil dipstick Top part of the handle Central mowing height adjustment lever Screws with wing nuts Grass catcher cover Bottom part of the handle Handle panel Fuel tank cap Start / brake switch... -
Page 6: Set-Up
Self-Propelled Lawnmower Set-Up Preparation • Before assembling and starting the petrol lawnmower, first carefully read the entire user’s manual and the instructions contained in it. • IMPORTANT INFORMATION: The lawnmower is supplied WITHOUT FUEL AND OIL in the engine. • Your new lawnmower was tested at the production plant meaning that a small amount of residual oil may be in the engine. -
Page 7: Installing The Handle Panel
Self-Propelled Lawnmower Installing the Handle Panel 1. Attach the plastic handle panel using the included screws. Assembling the Grass Catcher 1. Secure the plastic hooks at the end of the textile part of the grass catcher into the steel frame. IMPORTANT NOTICE: The grass catcher is equipped with a full indicator. -
Page 8: Operation
Self-Propelled Lawnmower Operation Before Starting the Lawnmower Adding Oil The lawnmower is supplied without motor oil. Before first start up, add motor oil SAE30 or 15W-40 (approx. 600 ml) according to the following instructions. 1. When pouring in the oil, place the lawnmower on a level surface. -
Page 9: Controlling And Operating The Lawnmower
Self-Propelled Lawnmower Controlling and Operating the Lawnmower Starting the Lawnmower 1. Move throttle to COLD/START position. 2. Pull the STARTER CABLE. The cable must be given a short tug to engage the starter (approx. 3 – 5cm of cable). Once engaged pull the remaining cable in 1 continuous and firm motion. Repeat 3 – 4 times in succession or until engines starts. -
Page 10: Controlling Travel
Self-Propelled Lawnmower Controlling Travel The travel is controlled using the travel lever. When the lever is pulled to the handle, the lawnmower will start moving. To stop, release the lever. This lawnmower has one constant speed. Application Range for the Petrol Lawnmower •... -
Page 11: Setting The Mowing Height
Self-Propelled Lawnmower Setting the Mowing Height The mowing height is set centrally using the central mowing height adjustment lever. You can select from 5 positions in the range of 25 to 70 mm. The middle mowing height is the most suitable for the majority of lawns. Lawn damage may result when the lowest height is set. -
Page 12: Maintenance
Self-Propelled Lawnmower Maintenance Lawn Care • Various forms of care are required depending on the type of grass area. • Therefore, always read the instructions included on seed packages with respect to the mowing height for the growing conditions in the given locality. •... -
Page 13: Service
Self-Propelled Lawnmower • If the blade strongly impacts an obstacle, stop the lawnmower and take it to an authorised service centre. • BLADE: the blade is made from pressed steel. To achieve the best possible mowing results, regularly sharpen the blades, approximately after every 25 hours of operation. Check that the blade is always correctly balanced. - Page 14 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
