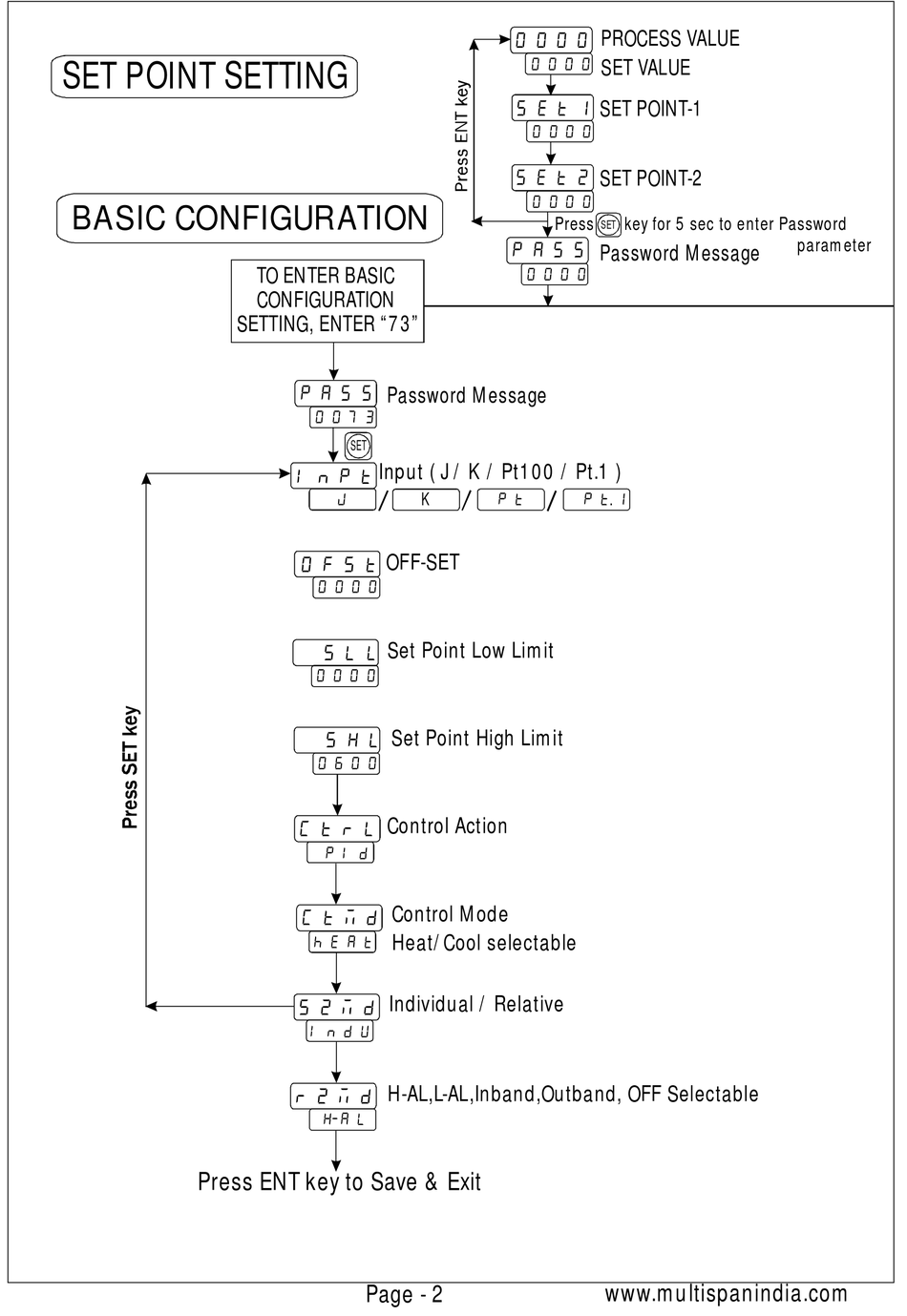

MULTISPAN UTC-4201A Operating Manual page 2

SET POINT SETTING
BASIC CONFIGURATION
Press ENT key to Save & Exit
TO ENTER BASIC
CONFIGURATION
SETTING, ENTER "73"
 Password Message

SET
 Input ( J / K / Pt100 / Pt.1 )

OFF-SET


Set Point Low Limit


Set Point High Limit


Control Action


Control Mode

 Heat/Cool selectable
Individual / Relative


H-AL,L-AL,Inband,Outband, OFF Selectable


Page - 2
 PROCESS VALUE





Press
 Password Message

K   .

SET VALUE
SET POINT-1
SET POINT-2
key for 5 sec to enter Password
SET
www.multispanindia.com
parameter
