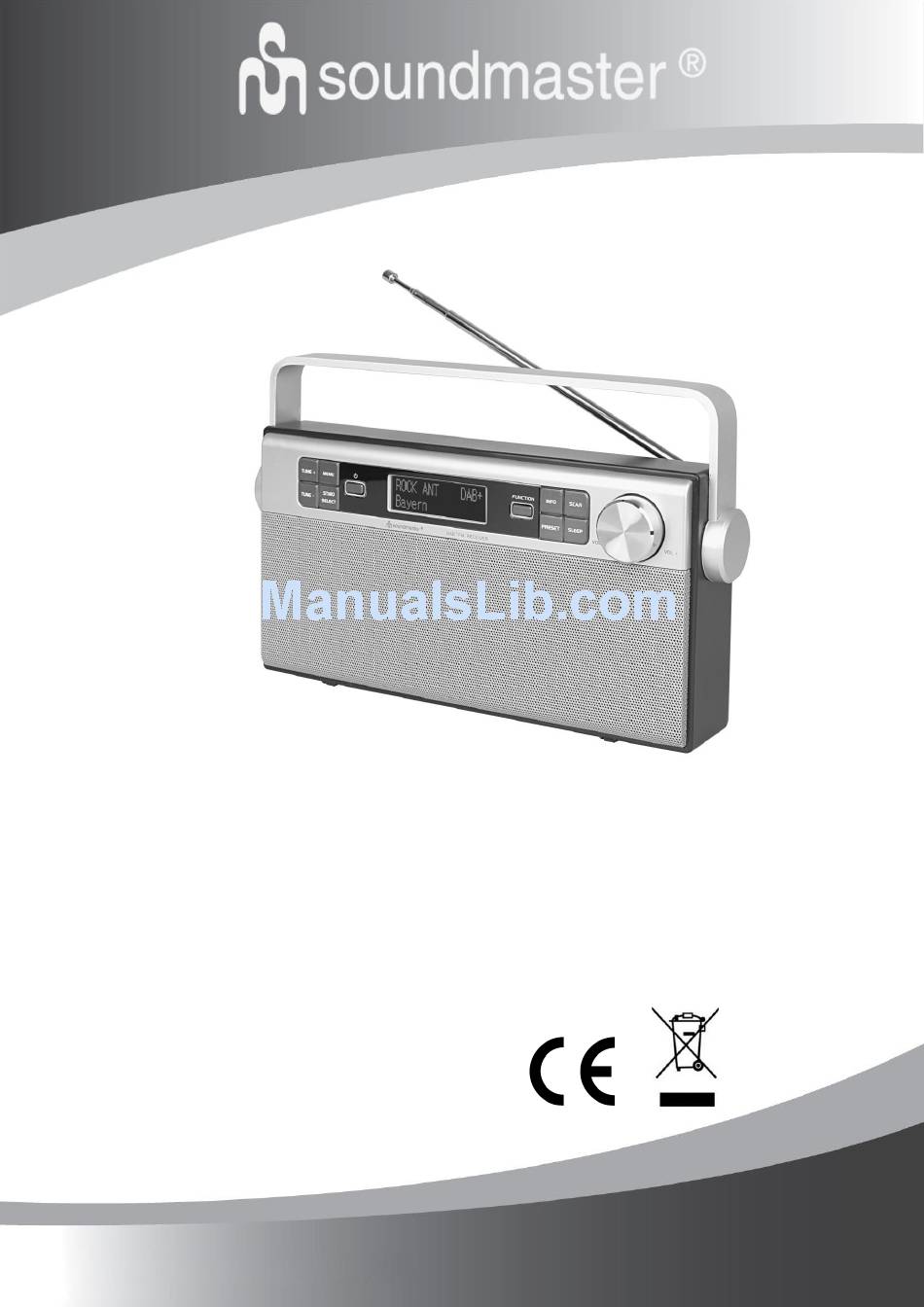

  • Page 1 DEUTSCH ENGLISH NEDERLANDS FRANÇAIS NORSK ITALANIO ČEŠTINA Hersteller Wörlein GmbH Tel.: +49 9103/71670 Gewerbestrasse 12 Fax.: +49 9103/716712 D 90556 Cadolzburg Email. info@woerlein.com GERMANY Web: www.woerlein.com DAB650SI...
  • Page 2 ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.
  • Page 3: Controls And Connections

    DAB650SI / English Instruction Manual CONTROLS & CONNECTIONS TUNE + /- button MENU button ST.MO/ SELECT button STANDBY button LCD Display FUNCTION button PRESET button INFO button SCAN button SLEEP button VOLUME knob HANDLE DC input socket Power ON/OFF switch AUX in jack...
  • Page 4: Getting Started

    DAB650SI / English Instruction Manual GETTING STARTED DAB/FM ANTENNA Before using your radio for DAB or FM reception, full extend the telescopic antenna which located at the back of unit. You may need to adjust the position of the telescopic antenna for maxing signal strength. For the first time to start to use this radio, the unit will perform DAB full scanning.
  • Page 5: Power Control

    DAB650SI / English Instruction Manual POWER CONTROL Using AC power Connect the adaptor cable to the DC socket (Micro USB) then plug adaptor to the wall socket. · Slide the power switch to “ON” position then press the STANDBY button. ·...
  • Page 6: Basic Function

    DAB650SI / English Instruction Manual BASIC FUNCTION Adjust the volume To adjust the volume from the front panel controls: Turn the VOLUME knob to increase or decrease the volume level. Clock setup SET TIME/DATE: This main option enables the clock to be set manually if these is no available DAB transmission.
  • Page 7 DAB650SI / English Instruction Manual Store DAB radio stations manually Note: You can store a maximum of 10 preset DAB radio stations. 1. Tune to a DAB radio station. 2. Press and hold PRESET button in 3 secs, then press TUNE +/- to select a preset number. Display show P1 and briefly.
  • Page 8 DAB650SI / English Instruction Manual Listen to FM radio 1. Press FUNCTION button repeatedly to select FM radio. 2. Press SCAN button to start auto scan or Press TUNE +/- button to tune to a radio station. 3. Press and hold TUNE +/- button to tune to the next strongest radio station. Mono/ Auto (Stereo) mode Press ST.MO button to select Audio mode to MONO or AUTO.
  • Page 9: Additional Features

    DAB650SI / English Instruction Manual Show RDS information RDS (Radio Data System) is a service that allows FM stations to show additional information. 1. Tune to a RDS station. 2. Press INFO repeatedly to scroll through the following information (if available): [Program Type] [Radio text] [Signal strength]...
  • Page 10: Troubleshooting

    DAB650SI / English Instruction Manual TROUBLESHOOTING PROBLEM CAUSE / SOLUTION No power Slide the power switch to ON position. Ensure that the power plug is connected properly. Ensure that there is power at the AC Mains. Ensure that the batteries are fully charged. If a ' Battery ' icon is empty appears on the screen, please use the included 5V1A adaptor and charge the unit or use the AC power instead.
  • Page 11: Specifications

    DAB650SI / English Instruction Manual SPECIFICATIONS General Power requirements: AC Power 100-240V ~ 60/ 50Hz , 0.3A Max DC input: Rechargeable Li-ion Battery: Type: BL-5C battery (3.7 V, 1050 mAh) * Use specified charger only. * Power consumption: 9 W (operation) Battery playback time: 4-5 hrs at 50% volume level.
