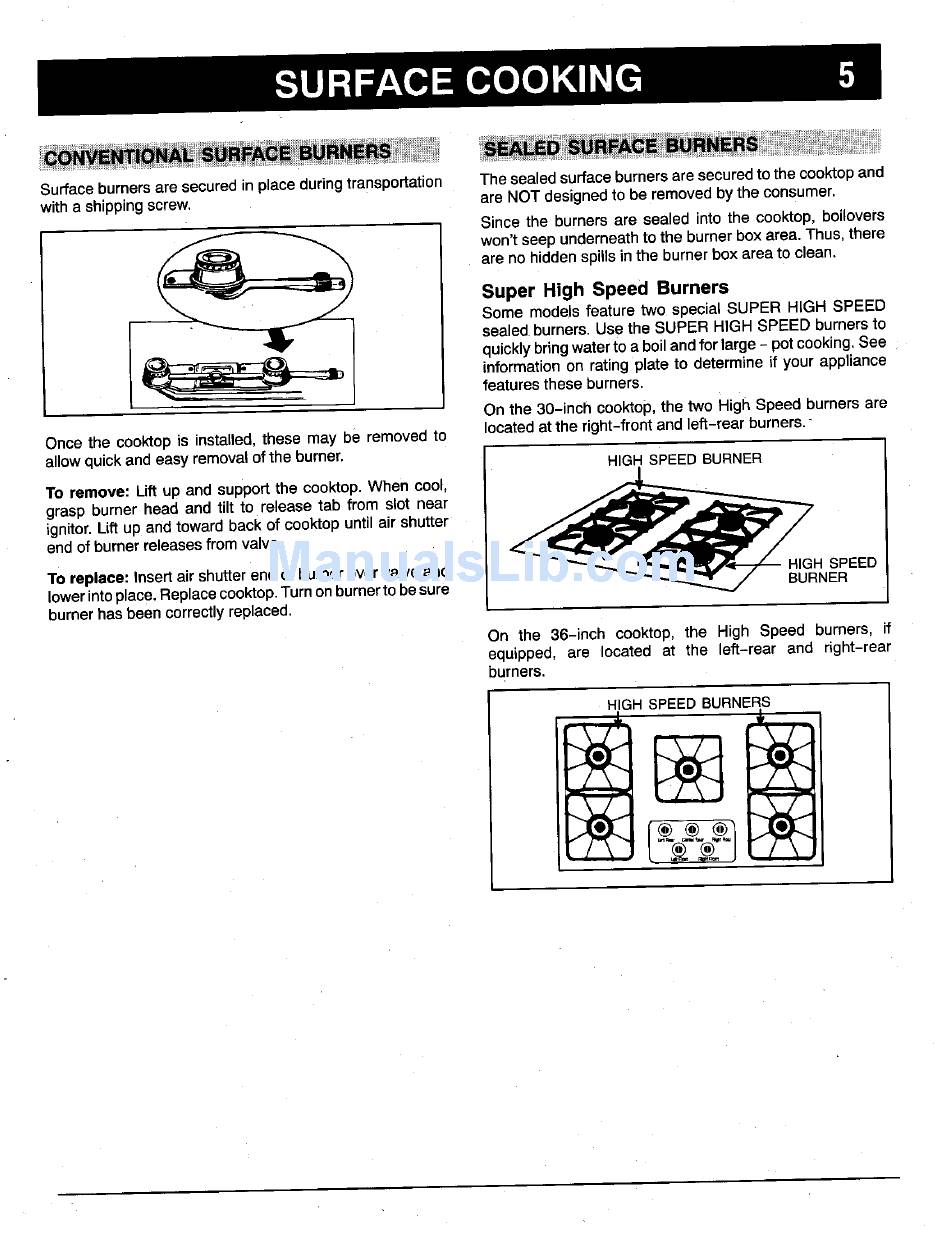

SURFACE COOKING
Surface
burnersare secured in place during transportation The sealed surface burnersare secured to the cooktop and
with a shippingscrew, are NOT designedto be removedby the consumer.
Since the burners are sealed into the cooktop, boilovers
won't seep underneath to the burner box area. Thus, there
are no hidden spills in the burner box area to clean.
Super High Speed Burners
Some models feature two special SUPER HIGH SPEED
l sealed burners, Use the SUPER HIGH SPEED burners to
quicklybringwaterto a boiland forlarge - pot cooking, S ee
informationon rating plate to determine if your appliance
featuresthese burners.
On the 30-inch cooktop,the two High Speed burnersare
Once the cooktopis installed,these may be removedto locatedat the right-frontand left-rear burners.-
allow quickand easy removalofthe burner. HIGH SPEED BURNER
To remove: Lift up and supportthe cooktop.When cool,
grasp burner head and tilt to release tab from slot near
ignitor.Lift up and toward back of cooktopuntilair shutter
end of burnerreleasesfrom valve.
To replace: Insert air shutterend of burnerovervalve and
lowerintoplace.Replacecooktop.Turnonburnerto besure
burnerhas beencorrectlyreplaced.
On the 36-inch cooktop, the High Speed burners, if
equipped, are located at the left-rear and right-rear
burners,
HIGH SPEEDBURNERS
t"' 72"1
