2. PRE-INSTALLATION

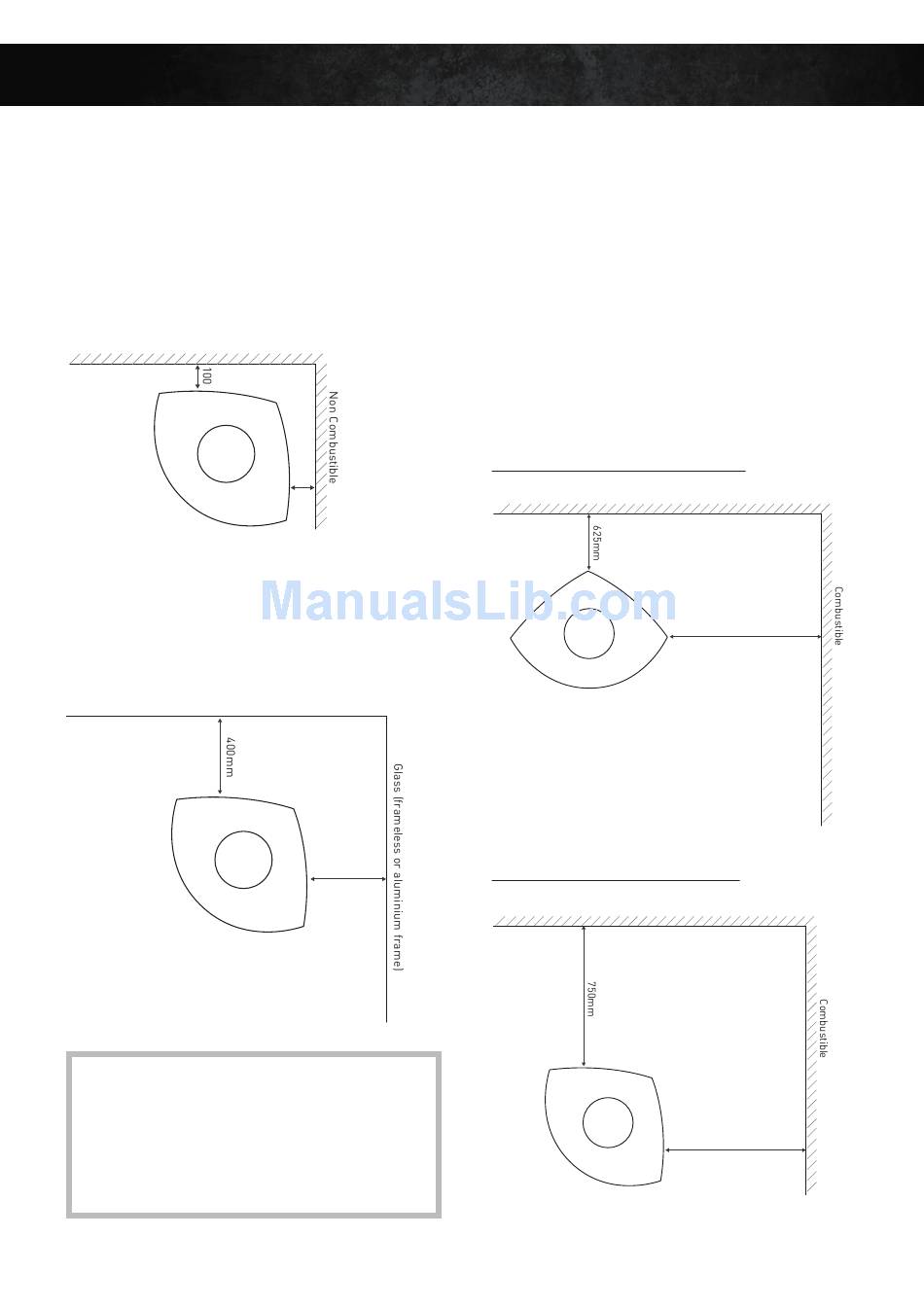

MINIMUM CLEARANCE – INTERNAL
2.1 Clearance from non-combustible surfaces
(eg masonry)
100mm minimum clearance is required from fully
non-combustible surfaces.
Non Combustible
2.2 Clearance from glass
400mm minimum clearance is required from normal
non-combustible glass.
Glass (frameless or aluminium frame)
IMPORTANT:
Frames must also be considered. Timber window
frames must be treated as combustible surfaces
(see 2.3). Aluminium frames can be treated as
non-combustible surfaces (see 2.2).
OBLICA | PHAROS INSTALLATION AND USER MANUAL
(CONTINUED)
100
400mm
2.3 Clearance from combustible surfaces
(eg timber joist & concrete)
Clearances may be reduced with the application of
heat shielding to walls in accordance to the
Australian Building Code.
For information on heat shielding please contact our
office on 03 9416 0400 or email info@oblica.com.au.
Configuration 1 – Parallel installation
Combustible
Configuration 2 – Corner installation
Combustible
625mm
750mm
