Page 1: Table Of Contents
1. Technical DaTa 2. PRe-insTallaTion 3. insTallaTion 4. oPeRaTion 5. TesTinG Keep for future use... -

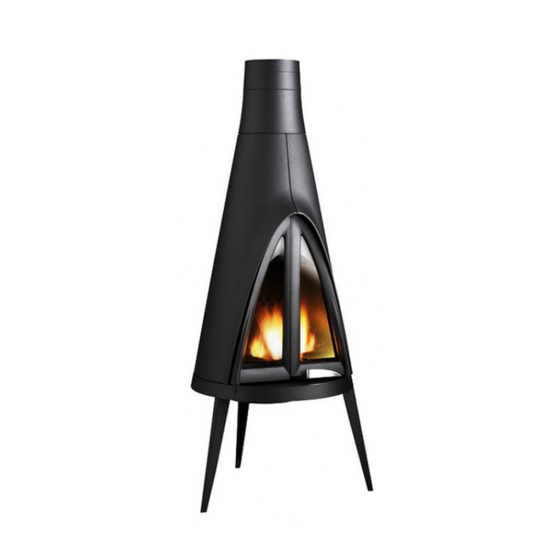

Page 2: Technical Data
W754 x h1585 x D600mm Firebox weight 143kg Flue kit standard 8”/10”/12” determined under test conditions: nominal thermal output 10kW efficiency (australian Test) emissions (australian Test) 1.6 g/Kg FLUE Standard 8” oblica | tipi installation and User ManUal page 2... -
Page 3: Pre-Installation
2. pre-installation congratulations on your purchase of the Tipi. This appliance should be installed and checked by a qualified professional. ensure you have read the operation guidelines thoroughly prior to first use. For any questions or concerns please contact oblica on 03 9416 0400. - Page 4 700mm important: 700mm 700mm Frames must also be considered. Timber window frames must be treated as combustible surfaces 700mm (see 2.3). aluminium frames can be treated as non-combustible surfaces (see 2.2). oblica | tipi installation and User ManUal page 4...
-
Page 5: Installation
3.1 typical flue kit installation Cowl (Chinaman Hat) 10” Outer Case 12” Outer Case RUBBER DEKTITE FLASHING 8” Active Flue 10” Outer Case 12” Outer Case CEILING RING 8” Active Flue oblica | tipi installation and User ManUal page 5... - Page 6 The top of the flue must be 1200mm above the roofline. alternatively, there must be a minimum distance of 8 meters from any higher section of roof. > 8 m – > 120 cm – > 120 cm > 120 cm – – oblica | tipi installation and User ManUal page 6...
- Page 7 Joist 100mm 100mm DOORS DOORS Combustible Insulative board (6mm) floor (eg. timber) + non combustible finish 300mm Combustible Insulative board (6mm) floor (eg. timber) + non combustible finish 300mm Joist oblica | tipi installation and User ManUal page 7 Joist...
- Page 8 Combustible (eg.tiles) Non combustible finish floor (eg. timber) (eg.tiles) Concrete Concrete top VieW 100mm 100mm Floor protector DOORS Floor protector Combustible floor (eg: Timber) DOORS Combustible floor 300mm (eg: Timber) 300mm oblica | tipi installation and User ManUal page 8...
-
Page 9: Operation
• Misuse may lead to unhealthy and environmentally harmful emissions and will void any warranty or guarantee. • The maximum load capacity for the Tipi is 10kg of wood. • Burning only seasoned hardwood helps to protect the environment and lower emissions. -
Page 10: Testing
1.6g/kg of dry wood, within the maximum specification of 4.0g/kg of dry wood. conclusion: This appliance does comply with the requirements of as/nZs 4013:1999 for the configuration tested. oblica | tipi installation and User ManUal page 10...
